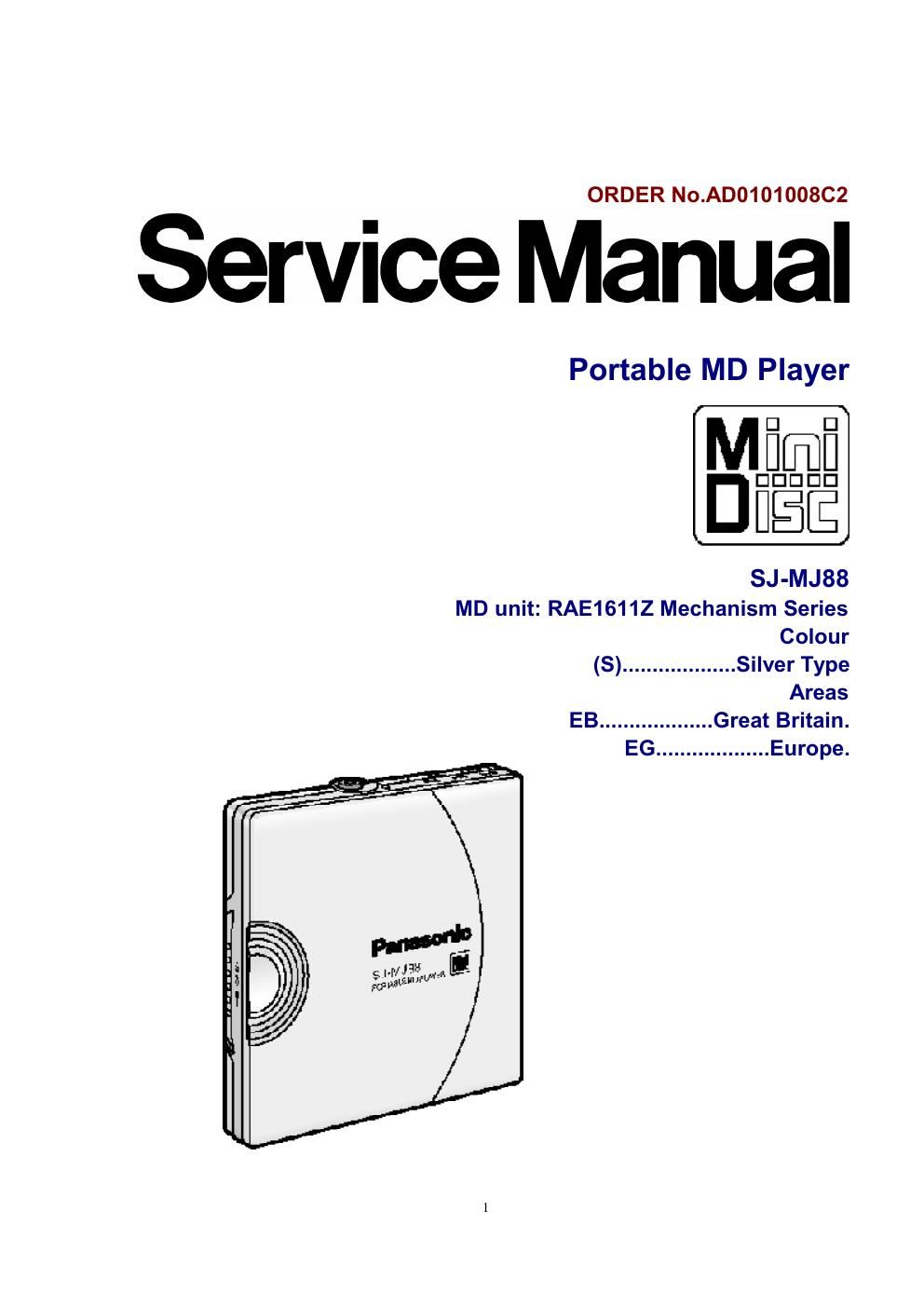

Panasonic sj mj 88 service manual

This is the 62 pages manual for panasonic sj mj 88 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 62
panasonic sj mj 88 service manual

Extracted text from panasonic sj mj 88 service manual (Ocr-read)


Page 1

SPECIFICATIONS Specifications Audio System:MiniDisc digital audio system Laser:Semiconductor laser (=780 nm) Sampling frequency:44.1 kHz Coding:Adaptive Transform Acoustic Coding (ATRAC) No. of channels:2 (left and right, stereo) 1 (monaural) Frequency response:20 Hz~20 kHz (+0 dB, -8dB) Wow and flutter:Below measurable limit General Output terminal Output Jack:Phones, 22 Power output:3.5 mW+3.5 mW Power supply Rechargeable battery:DC 1.2V (included rechargeable battery) Battery:DC 1.5V (One LR6, AA, UM-3 battery) Dimensions (WxHxD) Cabinet dimensions :71.5x78.5x11.8 mm incl.projecting parts :74.1x80.1x13.9 mm Weights:79 g (with battery) 54 g (without battery) Play time (When used in hold mode, at 25°C, on a flat, stable surface) Battery type:Play time Rechargeable:About 18 hours 2

Page 2

Panasonic alkaline:About 70 hours Both together:About 88 hours Charger Input:AC120-240 V (EG) / AC 230-240V (EB), 50 Hz 4W Output:DC 340mA (EG)/DC 350mA (EB), 1.2V Recharging time:About 2 hours Notes: - The play time may be less depending on the operating conditions. - Specifications are subject to charge without notice. Weight and dimensions are approximate. 11. Accessories - Stereo earphones...................................................1 pc. (L0BAB0000162) - Wired remote control..............................................1 pc. (RFEV025P-SM) - External battery case..............................................1 pc. (K3ZZ00200038) - Rechargeable Ni-Cd battery....................................1 pc. (RP-BP62EYS1) 3
