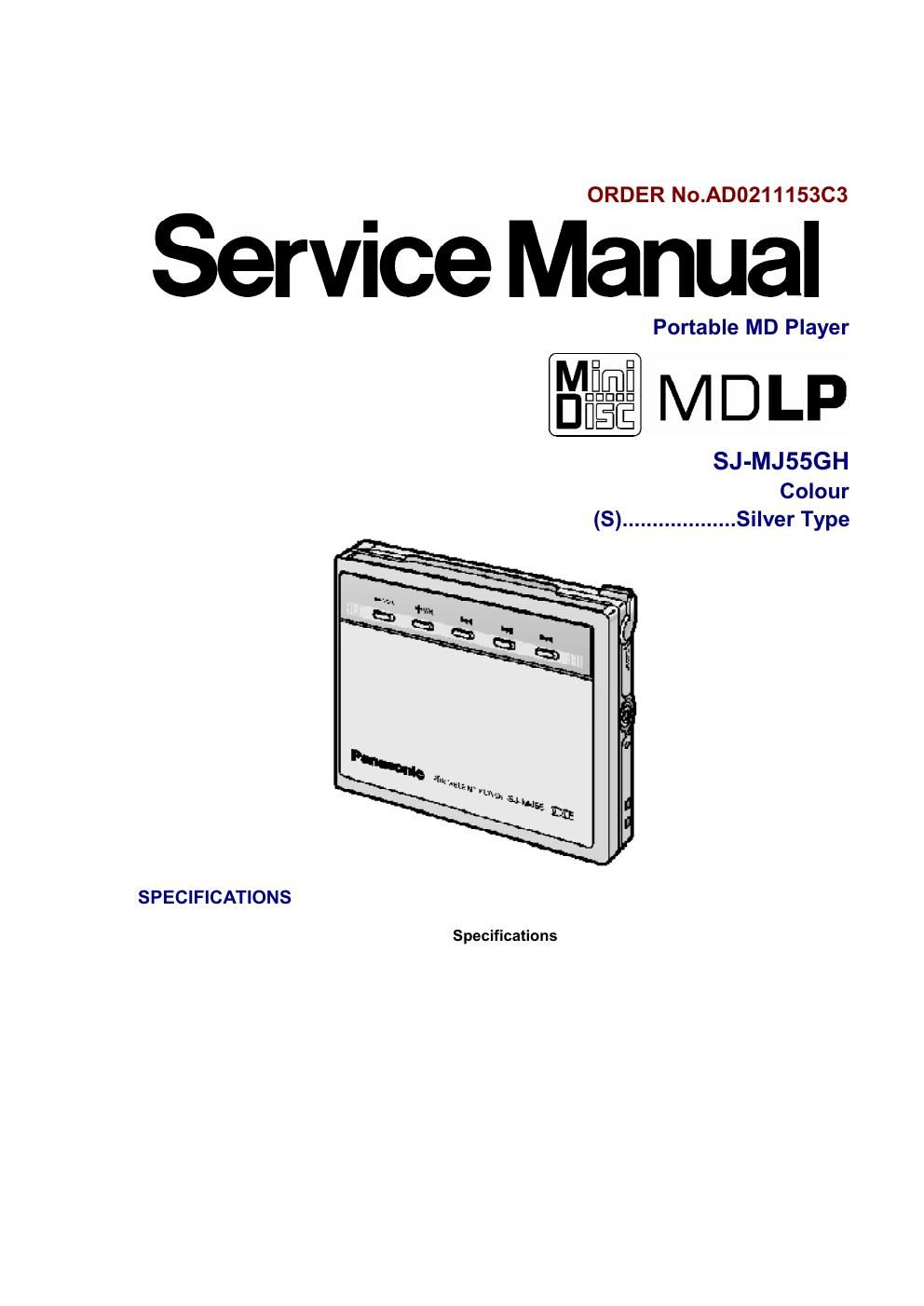

Page 1
Audio System:MiniDisc digital audio system Beam source:Semiconductor laser Wave length:780 nm Sampling frequency:44.1 kHz Coding:Adaptive Transform Acoustic Coding (ATRAC/ ATRAC3) No. of channels:2 (left and right, stereo) 1 (monaural) Frequency response:20 Hz~20 kHz (+0 dB, -6dB) Wow and flutter:Below measurable limit General Headphones: Output level (approx.):3.0 mW+3.0 mW Inpedance (approx.):32 Speakers (ceramic card type): Output level (approx.):45 mW+45 mW Inpedance (approx.):200 / 1kHz Power supply Rechargeable battery:DC 1.2V (included rechargeable battery) Battery:DC 1.5V (One LR6, AA, UM-3 battery) Dimensions (WxHxD) Cabinet dimensions:79.9x72.7x14.1 mm incl.projecting parts:80.9x74.2x17.0 mm Weights:96 g (with battery) 69 g (without battery) Play time [Approximate operating time in hours (in hold mode, at 25°C, on a flat, stable surface)] Battery type:Play time (Stereo/ LP2/ LP4) Rechargeable:40 hours/ 53 hours/ 70 hours Panasonic alkaline:63 hours/ 93 hours/ 121 hours Both together:103 hours/ 148 hours/ 193 hours [When the rechargeable battery (included) is fully recharged.] AC adaptor and charger AC adaptor input:AC220 V, 50/60 Hz, 5 VA AC adaptor output and Charger input:DC 3.5 V, 0.5A Charger output:DC 2V, 0.5 A Recharging time:About 3.5 hours
Page 2
Notes: - The play time may be less depending on the operating conditions. - Specifications are subject to change without notice. Weight and dimensions are approximate. 2002 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.1. Accessories - Stereo earphones...................................................1 pc. / (L0BAB0000174) - Wired remote control..............................................1 pc. / (N2QCBD000020) - External battery case..............................................1 pc. / (K3ZZ00200038) - Nickel-metal hydride rechargeable battery.............1 pc. / (RFKFFAZ01EM1) - Soft case.................................................................1 pc. / (RFC0074-H) - Speaker/Battery charger............................................1 pc. / (L0EAAB000011) - AC adaptor...............................................................1 pc. / (N0JCBD000001) 2. Precaution of Laser Diode
