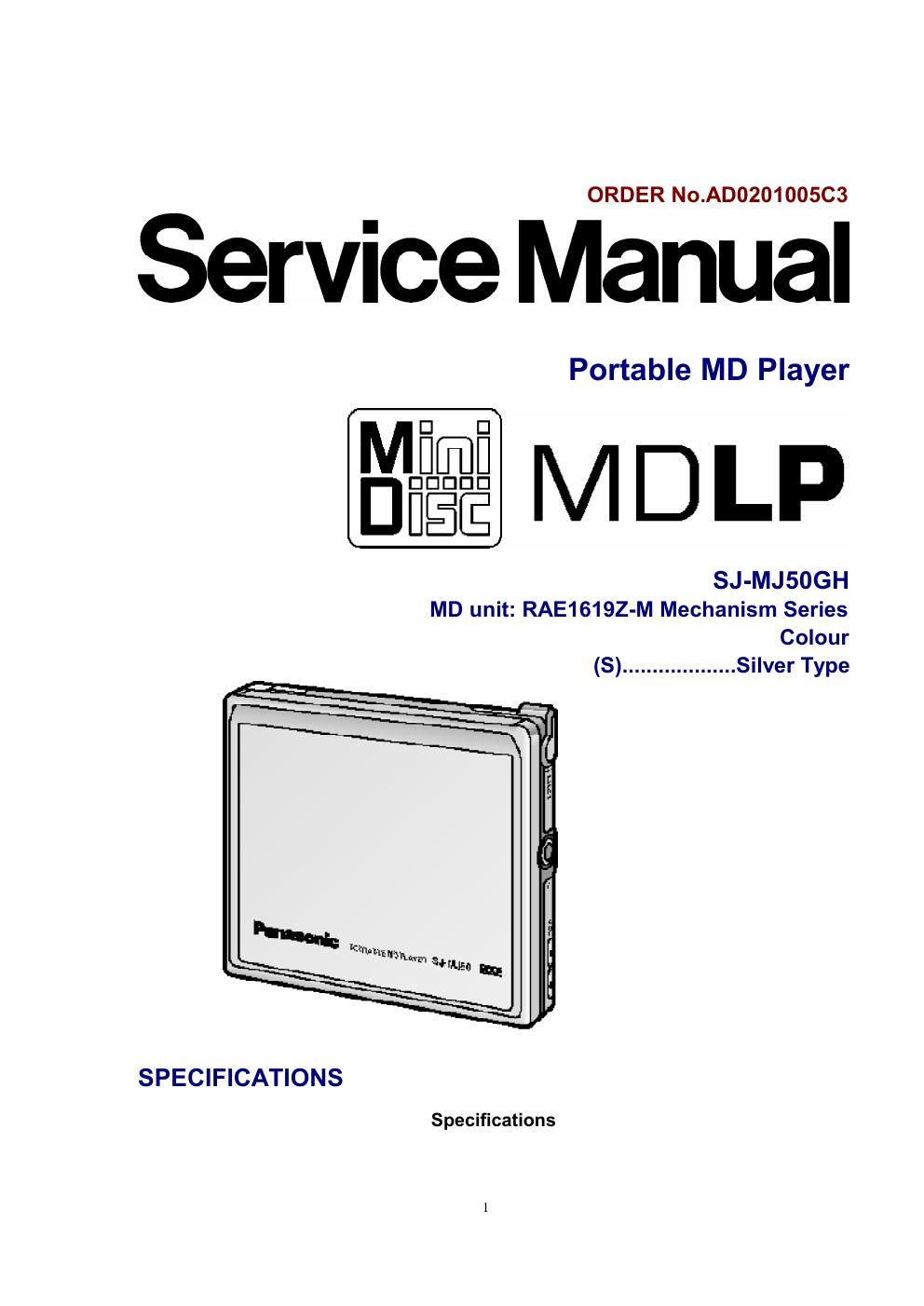

Page 1
Audio System:MiniDisc digital audio system Laser:Semiconductor laser (=780 nm) Sampling frequency:44.1 kHz Coding:Adaptive Transform Acoustic Coding (ATRAC/ ATRAC3) No. of channels:2 (left and right, stereo) 1 (monaural) Frequency response:20 Hz~20 kHz (+0 dB, -6dB) Wow and flutter:Below measurable limit General Headphone output level:3.5 mW+3.5 mW/22 Speaker output level:55 mW+55 mW/16 Speakers:3.6 cm (16 ) x2 Power supply Rechargeable battery:DC 1.2V (included rechargeable battery) Battery:DC 1.5V (One LR6, AA, UM-3 battery) Dimensions (WxHxD) Cabinet dimensions :79.9x72.7x13.7 mm incl.projecting parts :81.1x74.6x14.9 mm Weights:97 g (with battery) 70 g (without battery) Play time [Approximate operating time in hours (in hold mode, at 25°C, on a flat, stable surface)] Using earphones: Battery type:Play time (Normal/ LP2/ LP4) Rechargeable:29 hours/ 41 hours/ 48 hours Panasonic alkaline:55 hours/ 74 hours/ 93 hours 2
Page 2
Both together:87 hours/ 110 hours/ 113 hours Using the speakers: Battery type:Play time (Normal/ LP2/ LP4) Rechargeable:9.5 hours/ 9.5 hours/ 9.5 hours Panasonic alkaline:15 hours/ 15 hours/ 15 hours Both together:26 hours/ 26 hours/ 26 hours [When the rechargeable battery (included) is fully recharged.] AC adaptor and charger AC adaptor input:AC220 V, 50/60 Hz, 5W AC adaptor output and Charger input:DC 3.5 V, 0.5A Charger output:DC 2V, 0.5 A Recharging time:About 3.5 hours Notes: - The play time may be less depending on the operating conditions. - Specifications are subject to charge without notice. Weight and dimensions are approximate. 11. Accessories - Stereo earphones...................................................1 pc. (L0BAB0000162) 3
