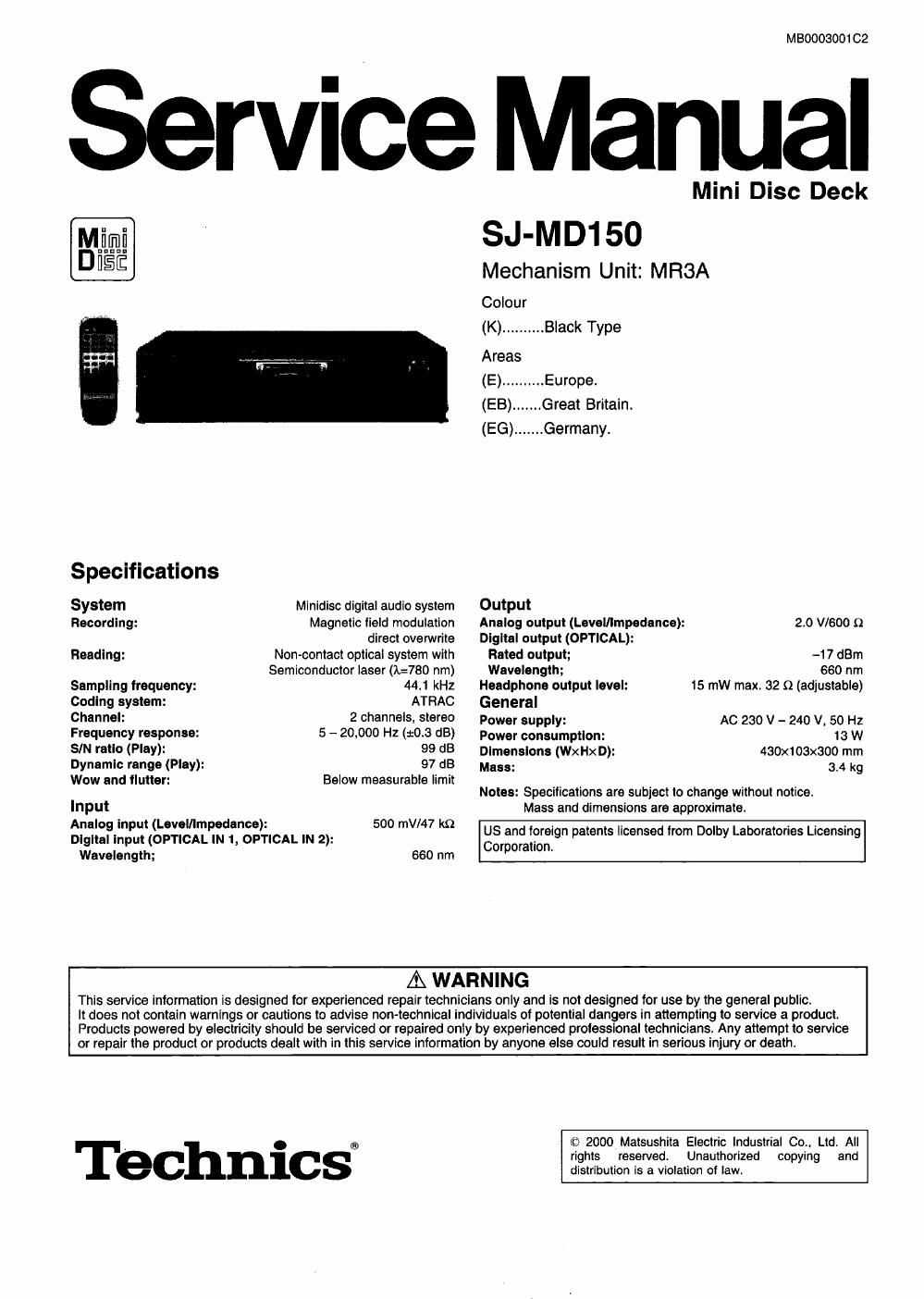

Page 1

MBOOOBOO1 CZ

Service Manual

Mini Disc Deck
SJ-MD150

Mechanism Unit: MRSA
Colour

(K) .......... Black Type

Areas

(E) .......... Europe.

(EB) ....... Great Britain.
(EG) ....... Germany.

Specifications
System Minidisc digital audio system Output
Recording: Magnetic lield modulation Analog output (Level/Impedance): 2.0 V1600 9
direct overwrite Dlgltal output (OPTICAL):

Heading: Non-contact optical system with Rated output: -17 dBm

Semiconductor laser 0:780 nm) Wavelength; 660 nm
Sampling frequency: 44.1 kHz Headphone output level: 15 mw max. 32 (1 (adjustable)
Coding system: ATRAC General
Channel: 2 channels, SW60 Power supply: AC 230 V - 240 V. 50 Hz
Frequency response: 5 - 20,000 Hz (:03 as) power consumption: 13 W
SIN ratlo (Play): 99 dB Dimensions (Wx Hx D): 430x103x300 mm
Dynamic range (Play): 97 dB Mass: 34 kg
Wow and ﬂutter: Below measurable limit . _

Notes: Specifications are subtect to change without notice.
Input Mass and dimensions are approximate.
Analog Input (Laval/Impedance): 500 mV/47 k9 . . . . .
Dlgltal Input (OPTICAL IN 1 OPTICAL IN 2): g8 and foreign patents licensed from Dolby Laboratories Licensing
orporation.
Wavelength; 660 nm
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced prolessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Technicsi
