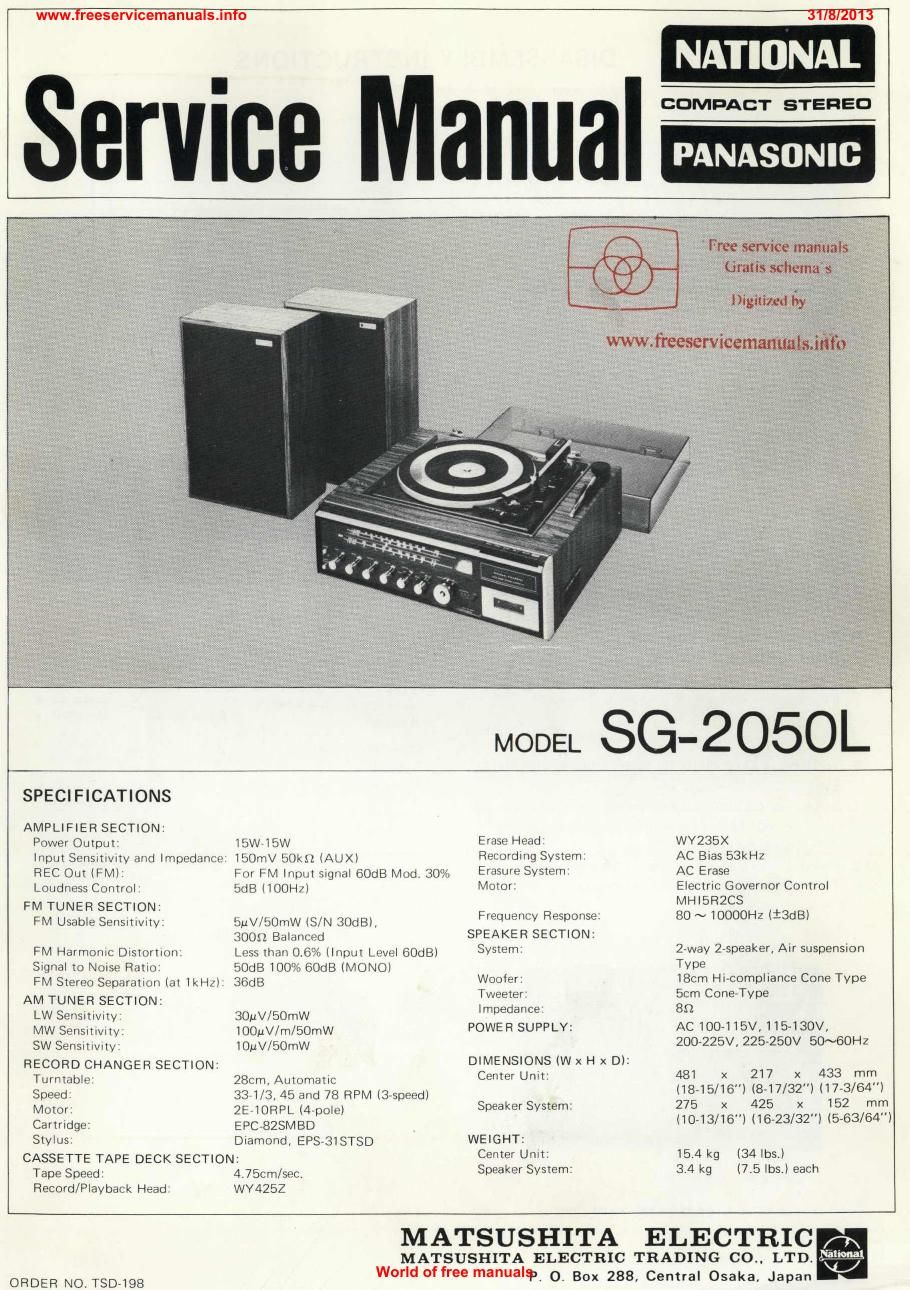

Panasonic sg 2050l

Page 2

/ SG-205O L

www.freeservicemanuals.info

El

1 ,

2

3

M

gumbo)

{Om

Lo

Net

J:

31/8/201 3

DISASSEMBLY INSTRUCTIONS

To Remove Record Changer (Refer to Figs. 1 and 2)
Loosen the Changer transit screw, as shown in Fig. 1,
Turn retaining clip of changer transit screw, as shown in
Fig I
. Unplug plug housmg from receptacle housing, as shown
in Fig i.
, Remove Changer by lifting it slightly in back and sliding
it toward rear of cabinet. Unplug two (2) PU plugs.
To reassemble, reverse above procedure.

To Remove Escutcheon with Cassette Tape Deck
(Refer to Figs. 2, 3 and 4)
Remove four (4) cabinet mounting screws Nos. 1 ~ 4, as

shown in Fig.2.
Remove six (6) [TdDIHEI mounting screws Nos. 1 ~ (5, as
shown in Fig. 3,

Unplug plug housmg and two (2) PU plugs.

Lift cabinet With record tzhangcr from body

Remove seven (7) knobs

Remove live (5) escutcheon mounting screws, Nos. 7 ~

11, as shown in Fig, 3,

. Remove three (3) escutcheon mounting screws, Nos l~
3, as shown in Fig 4.
Remove one (1) blrlLkCI for rassetle rover mounting
screw, No 4 as shown in Fig. 4.
Unplug cassette Circuit board from IBP ttHlIlLl'lOV,

. TD reassemble, HVIISH abovn prtii (Idlllt

To Remove Cassette Tape Deck

(Refer to Figs. 2, 3, 4 and 5)
. Follow instruction 1 to 8 above (Estutchton Removal)
Remove two (2) mssetlr ()(WK mounting sr iews Nos 1 ~
2.85 shown in Fig 5
, To reassemble, reverse above procedure

To Remove Level Meter (or Meter Lamp and (or Stereo
Eye)

Follow instruction l to 4 above (Escutcheori Removal).
Remove four (4) meter bracket mounting screws Nos. 1
~4,as shown in Fig 6

Remove level meter (or meter lamp and/or stereo eye).
To reassemble, reverse above procedure.

Fig. 5 CASSETTE TAPE DECK

MODEL SGZOSOL

Transit Screw

Fig.1 REAR VIEW (REAR COVER OPEN)

Screw No. 1 Screw No, 3

Screw No.6
Screw No, 5

Screw No.2

Fig.2 REAR VIEW

. Screw No 4
Screw No.1 «A Screw No. 12 6"
(Cabmm ' Screw No. 13 (Cabinet)
Screw No 2 u. , Screw No, 5
(Cabinet). (Cabinet)
4F 7
Screw No. 3 . Screw No.6
(SCabirievt) 7 i (Cabinet)
CFEW O :3 J "EA
(Escutcheon) 7.7, 1
we} g ; § . v ,.
Screw No.8 1: = e E Fftfils i. N 11
(Escutcheon) Screw No. 9 (ECrEW ho,
Screw A (Escutcheon) SW": 90""

Screw No, 10 i

(Cassette Deck) screw 8 Screw No. 14

(Cassette Deck) (EscutchEDn)

Fig.3 BOTTOM VIEW

\ e a); ' fl
. , i| _ i
£11 5W
, 7 7 W Jia L
W 5
1 if; i L 4 Screw No4

Screw N o 3

Screw No. 2

Fig. 4 TOP VIEW

Screw No, 1
