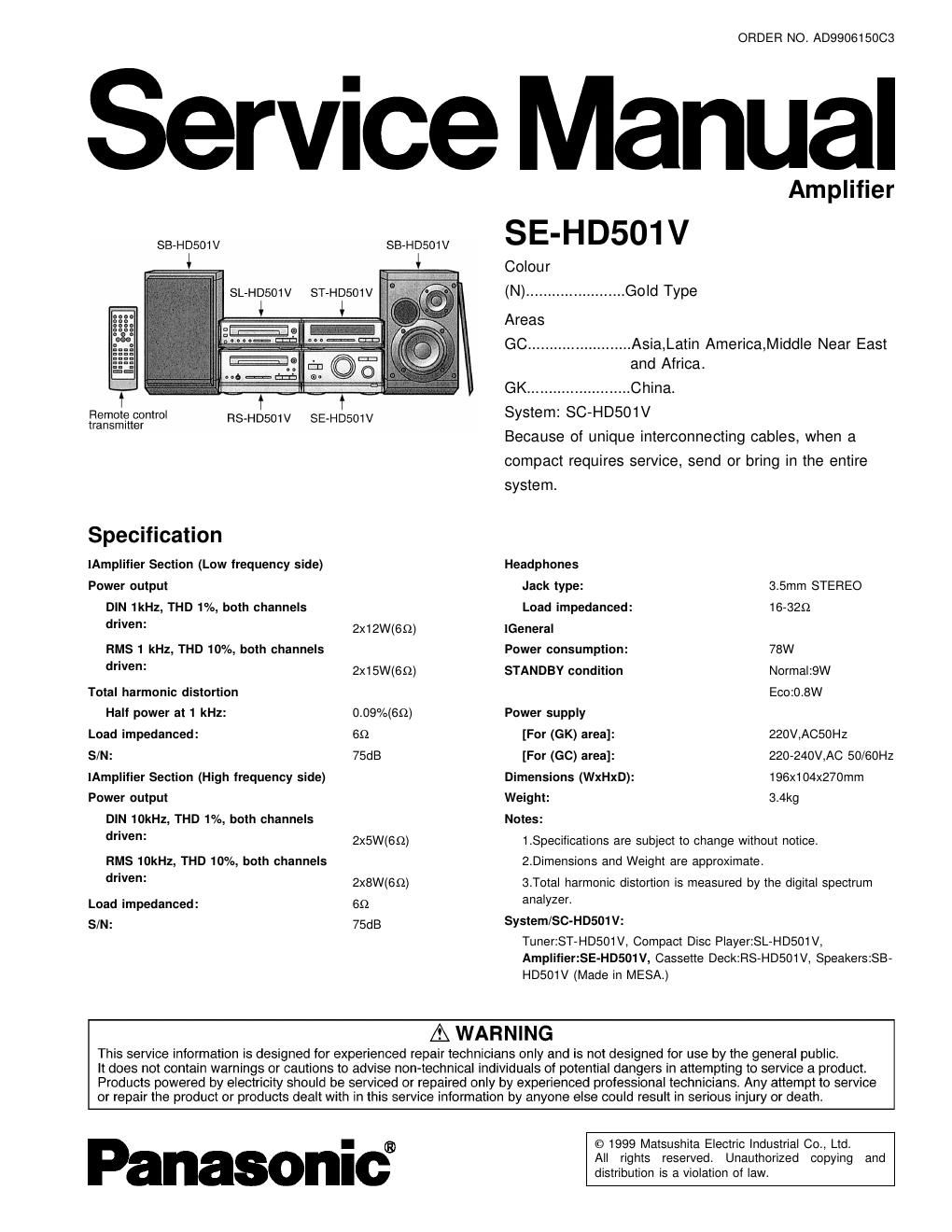

ORDER NO. AD990615003

Service Manual

SB-HD501V

SL-HD501V ST-HDSO1V

Remote control

transmitter RSVHD501 V SEVHD501V

Specification
lAmpIitier Section (Low frequency side)
Power output

DIN 1kHz, THD 1%, both channels

driven: 2x12W(6£2)

RMS 1 kHz, THD 10%, both channels

driven: 2x15W(6£2)
Total harmonic distortion

Half power at 1 kHz: 0.09%(69)
Load impedanced: 69
S/N: 75dB
lAmplitier Section (High frequency side)
Power output

DIN 10kHz, THD 1%, both channels

driven: 2X5W(6$1)

RMS 10kHz, THD 10%, both channels

driven: 2ng(69)
Load impedanced: SQ
S/N: 75dB

Amplifier
Colour
(N) ....................... Gold Type
Areas
GC ........................ Asia,Latin America,Middle Near East
and Africa.
GK ........................ China.

System: SC-HD501V
Because of unique interconnecting cables, when a
compact requires service, send or bring in the entire

system.
Headphones
Jack type: 3.5mm STEREO
Load impedanced: 16-3252
lGeneraI
Power consumption: 78W
STANDBY condition Normal:9W
Eco:0.8W
Power supply
[For (GK) area]: 220V,ACSOH2
[For (GC) area]: 220-240V,AC 50/60H2
Dimensions (WxHxD): 196x104x270mm
Weight: 3.4kg

Notes:
1.8pecifications are subject to change without notice.
2.Dimensions and Weight are approximate.
3.Total harmonic distortion is measured by the digital spectrum
analyzer.

System/SC-HD501V:
Tuner:ST-HD501V, Compact Disc Player:SL-HD501V,
Amplitier:SE-HD501V, Cassette Deck2FlS-HD501V, Speakers:SB-
HD501V (Made in MESA.)

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic®
