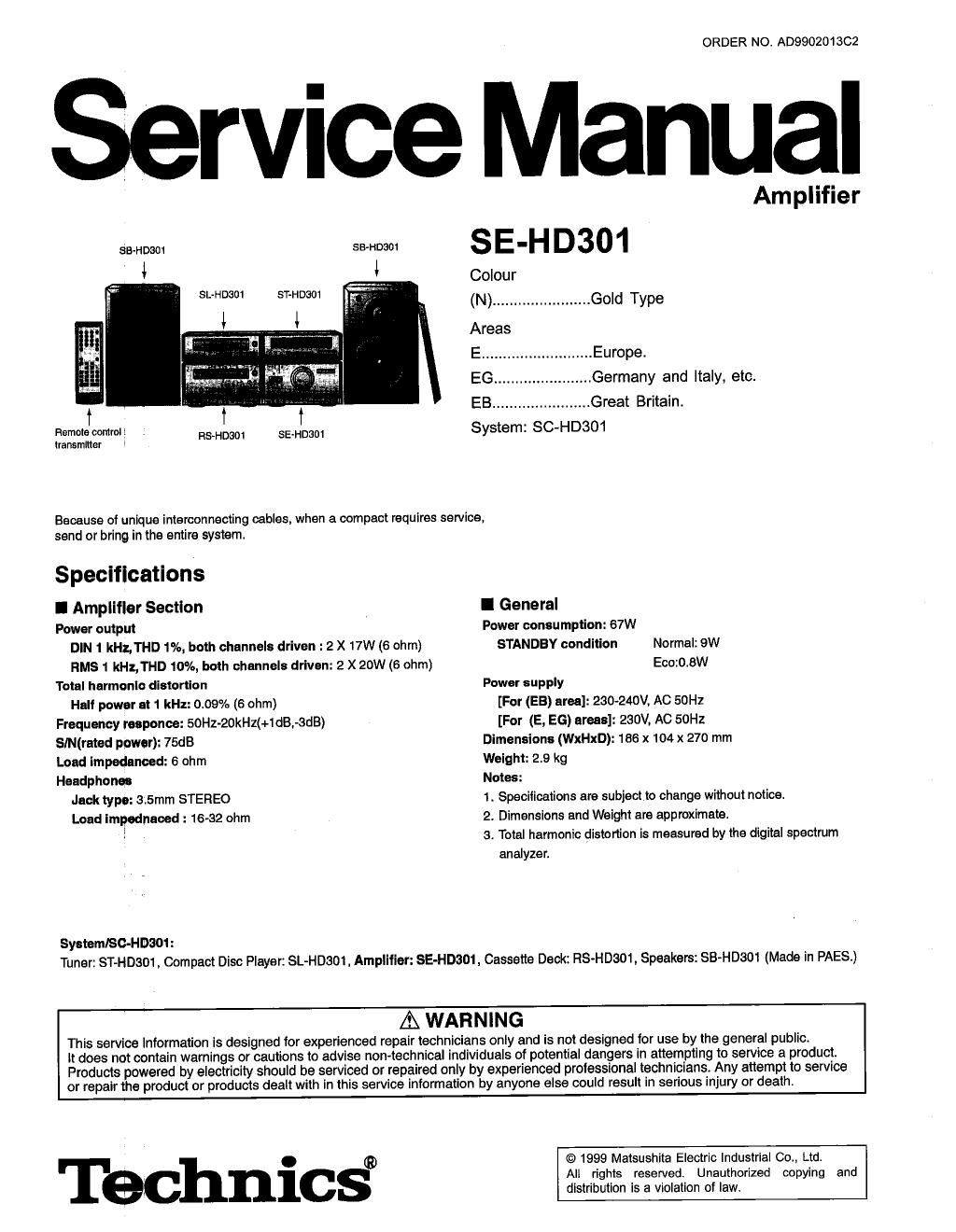

ORDER NO. AD990201302

rvice Manual

Amplifier

SB-HDSDt sa-Hoaoi S E 'H D 3 o 1

; Colour
(N)... .............. Gold Type
Areas
E.. Europe.
EG.. ...Germany and Italy, etc.
EB... ..Great Britain.
Remote control; Fis-HDsm 5541mm System: SC-HD301

transmitter

Because of unique interconnecting cables, when a compact requires service,
send or bring in the entire system.

Specifications
l Amplitler Section I General
Power output Power consumption: 67W
DIN 1 kHTHD 1%. both channels driven : 2 X 17W (6 ohm) STANDBY condition Normal: 9W
HMS 1 kHz,THD 10%, both channels driven: 2 X 20W (6 ohm) Eco:0.8W
Total harmonic distortion Power supply
Half power at 1 kHz: 009% (6 ohm) [For (EB) area]: 230v240V. AC SDHz
Frequency vesponce: 50Hz-20kHz(+1dB.-3dB) [For (E, E6) areas]: 230V. AC 50Hz
SIN(ratod power): 75dB Dimensions (WxHxD): 156 x 104 x 270 mm
Load impedanced: 6 ohm Weight: 2.9 kg
Headphones Notes:
Jack typo: 3.5mm STEREO 1. Specifications are subject to change without notice.
Load Impadnaced : 16-32 ohm 2. Dimensions and Weight are approximate.
: 3. Total harmonic distortion is measured by the digital spectrum
analyzer.
SystemISG-HDBM:

Tuner: ST-HDam, Compact Disc Player: SL-HD301 , Amplifier: SEJHD301, Cassette Deck: RS-HDaOt, Speakers: SB»HDSO1 (Made in PAES.)

A WARNING

This service Information is designed for experienced repair technicians only and is not designed for use by the general public.

it does not contain warnings or cautions to advise non-technical individuals 01 potenfiat dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced protessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1999 Matsushita Electric Industrial 00., Ltd.

0 ®
All rights resented. Unauthorized copying and
distribution is a violation of law.
