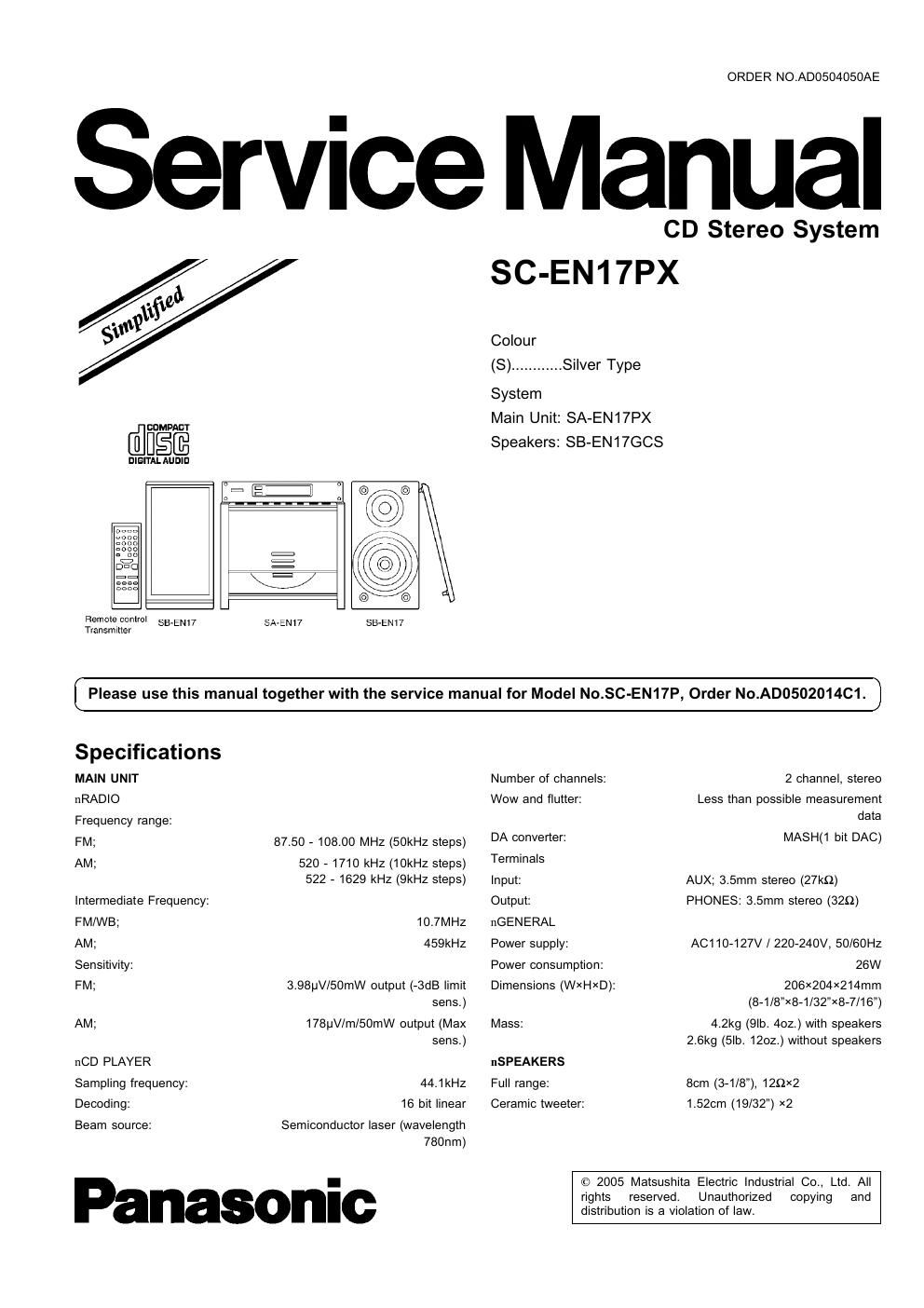

Panasonic sc en 17 px service manual

Page 2

Dimensions (WXHXD):

115mm><211mmxz15mm
(4-17/32"><8-5/16X8-15/32")

Power consumption in standby mode: 3.7W

Note:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

AWARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced prolessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

1 Note ---------------------------------------------------------------------------------------- 2
2 Change in Replacement Parts List ----------------------------------------- 2
2.1. SA-EN17PX---
2.2. SB-EN17GCS-
3 Schematic Diagram

1 Note

Page

Page
3.1. SA-EN17 ....................................................................... 3
3.2. SB-EN17GCS ................................................................ 4

4 Printed Circuit Board
5 Cabinet Parts Location-

5.1. SA-EN17PX ................................................................... 6

This simplified service manual is provided to indicate the main differences between the original Model No. SC-EN17P and the
subsequent Model No. SC-EN17PX.

2 Change in Replacement Parts List

Notes:

~ Important safety notice:

Components

Furthermore, special parts which have purposes of fire-
retardant (resistors), high-quality sound (capacitors), low-

identified by A mark have
characteristics important for safety,

noise (resistors), etc. are used.

special

When replacing any of these components, be sure to use
only manufacturers's specified parts shown in the parts list.

- The marking (RTL) indicates the Retention Time is limited
for this item. After the discontinuation of this assembly in
production, it will no longer be available.

- All parts are supplied by ASPC.

2.1. SA-EN17PX
Ref. No. Change in Replacement Parts Part Name & Description Pcs Remarks
SA-EN17P»S SA-EN17PX-S
66 RQLSO170 --- --- -
72 RYQ0559-H RY00557-H CD HOLDER B UNIT 1
85 --- XTV3+1ZGFJ SCREW 1
A2 RJA0065-1D RJA0019-D AC CORD 1 A
A3 RQT7890-1P RQT7890-3P O/I BOOK 1 English
A5 --- RJP1SGOS-Z POWER PLUG ADAPTOR 1
F901 K5D801AQOOO1 K5D801BK0007 FUSE, 1 A
P1 RPG7413 RPG7531 PACKING CASE 1
PCB2 REP3877A REP3877F MAIN P.C.B. ASS'Y 1 (RTL)
R32 ERDS2TJ330T --- --- -
R112 ERJSGEYJ682V ERJ3GEYJ392V RESISTOR, 1/10W 3.9KQ 1
R113 ERDSZTJ222T ERJ3GEYJ122T RESISTOR, 1/4W 1.2KQ 1
R212 ERJSGEYJ682V ERJ3GEYJ392V RESISTOR, 1/10W 3.9KQ 1
R213 ERDS2TJ222T ERDSZTJ122T RESISTOR, 1/4W 1.2KQ 1
R403 ERJSGEYJ151V ERJ3GEYJ221V RESISTOR, 1/10W 2209 1
R503 ERJSGEYJ151V ERJ3GEYJ221V RESISTOR, 1/10W 2209 1
