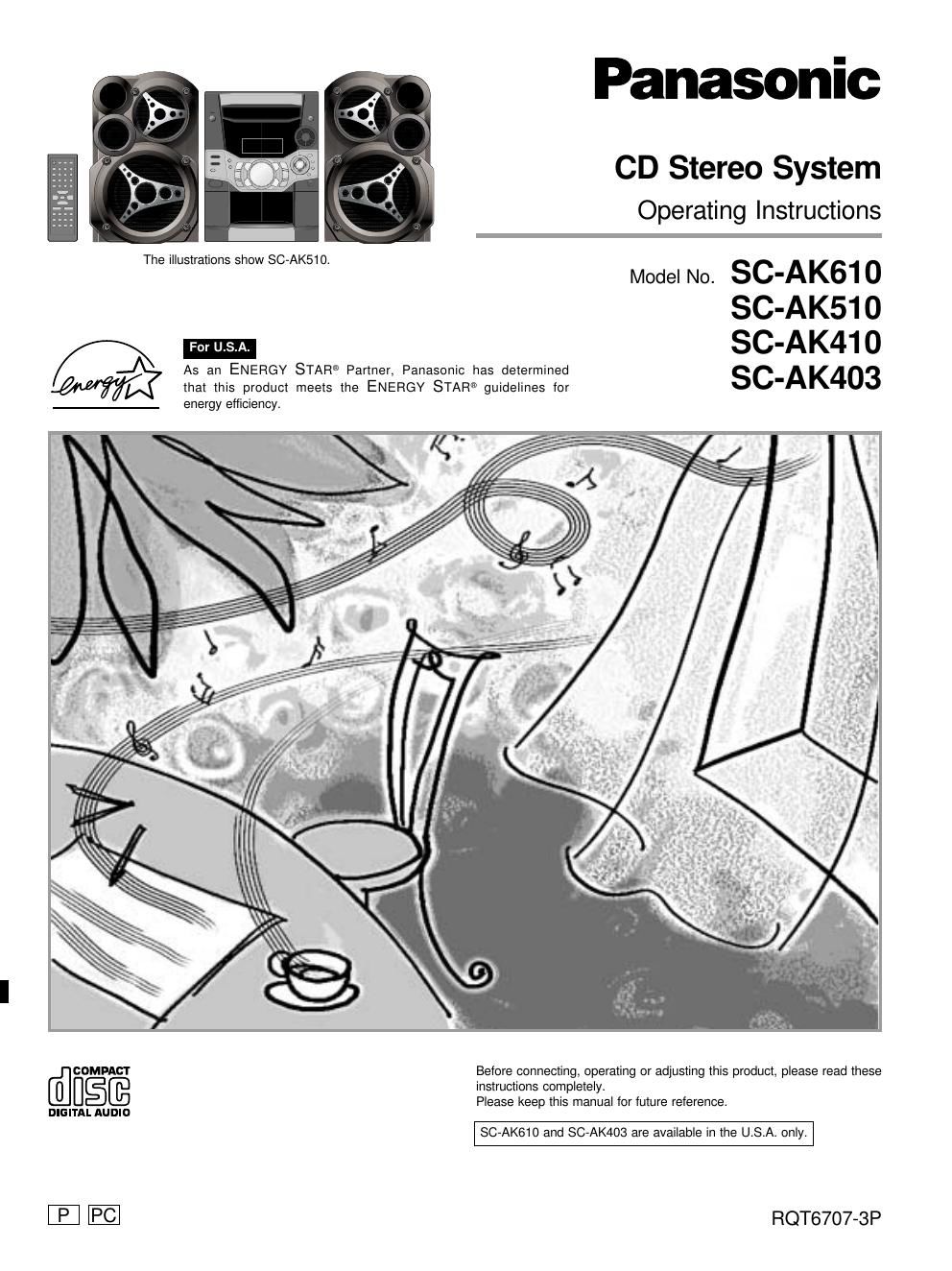

Panasonic sc ak 403 owners manual
This is the 20 pages manual for panasonic sc ak 403 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sc ak 403 owners manual (Ocr-read)
Page 1
Before using RQT6707 2 Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. These operating instructions are applicable to the following systems. Unless otherwise indicated, illustrations in these operating instructions are of SC-AK510. System SC-AK610 SC-AK510 SC-AK410 SC-AK403 Main unitSA-AK610 SA-AK510 SA-AK410 SA-AK403 Front speakersSB-AK610 SB-AK510 SB-AK410 SB-AK410 SubwooferSB-WAK610 – – – IMPORTANT SAFETY INSTRUCTIONS............................. 3 Listening caution............................................................... 3 Product Service................................................................. 3 Supplied accessories........................................................ 4 Placement of speakers...................................................... 4 The remote control............................................................ 4 Set-up................................................................................. 5 Front panel controls.......................................................... 6 The radio: manual tuning.................................................. 7 The radio: preset tuning................................................... 7 CDs ..................................................................................... 8 How discs with MP3/WMA differ from CDs................... 10 CD play mode function for MP3/WMA............................ 10 Album skip play.............................................................. 11 Track skip play............................................................... 11 INTRO function (Album scan)........................................ 11 Program play for MP3/WMA.......................................... 11 Starting play from a desired track in a desired album.... 12 Title search function....................................................... 12 Marking a track.............................................................. 13 CD display for MP3/WMA.............................................. 13 Cassettes.......................................................................... 14 Sound quality/sound field............................................... 14 Recording......................................................................... 14 Optional antenna connections....................................... 15 External unit connections............................................... 15 Using an external unit..................................................... 15 Using headphones (not included).................................. 15 Turning the demo function off........................................ 16 Convenient functions...................................................... 16 Auto-off function.............................................................. 16 Setting the time............................................................... 16 Using the timers.............................................................. 17 Troubleshooting guide.................................................... 18 Maintenance..................................................................... 18 Specifications.................................................................. 19 Limited Warranty (ONLY FOR U.S.A.).............Back cover Customer Services Directory (ONLY FOR U.S.A.).........................................Back cover Table of contents CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference. MODEL NUMBER SERIAL NUMBER CAUTION!THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. CAUTION:TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. User memo: DATE OF PURCHASE DEALER NAME DEALER ADDRESS TELEPHONE NUMBER For SC-AK410 sold in Canada Except for U.S.A. Inside of product
Page 2
Before using RQT6707 3 Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. Selecting fine audio equipment such as the unit youve just pur- chased is only the start of your musical enjoyment. Now its time to consider how you can maximize the fun and excitement your equip- ment offers. This manufacturer and the Electronic Industries Associ- ations Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing. We recommend you to avoid prolonged exposure to excessive noise. Sound can be deceiving. Over time your hearing comfort level adapts to higher volumes of sound. So what sounds normal can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level: -Start your volume control at a low setting. -Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. Once you have established a comfortable sound level: -Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Listening caution 1. Damage requiring service-The unit should be serviced by qualified service personnel if: (a) The AC power supply cord or AC adaptor has been damaged; or (b)Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d)The unit does not operate normally or exhibits a marked change in performance; or (e)The unit has been dropped or the cabinet damaged. 2. Servicing-Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel. 3. Replacement parts-When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards. Product Service Product information For product information or assistance with product operation: In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail consumerproducts@panasonic.com, or web site (http://www.panasonic.com). In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, web site (www.panasonic.ca), or an authorized Servicentre closest to you. 4. Safety check-After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition. THE FOLLOWING APPLIES ONLY IN THE U.S.A.: CAUTION:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter- ference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.-Increase the separation between the equipment and re- ceiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. Any unauthorized changes or modifications to this equipment would void the users authority to operate this device. This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT SAFETY INSTRUCTIONS
