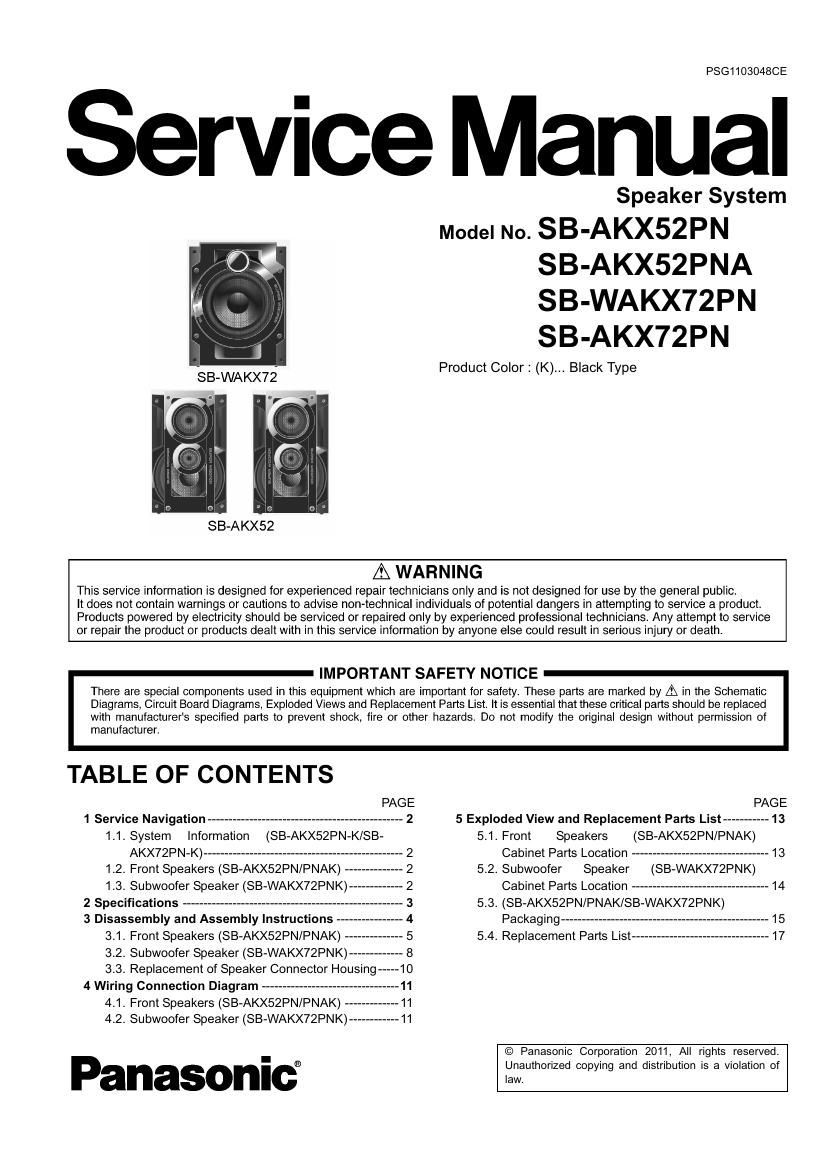

Panasonic sb akx72pn
This is the 18 pages manual for panasonic sb akx72pn.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb akx72pn (Ocr-read)
Page 1
2 1 Service Navigation 1.1. System Information (SB-AKX52PN-K/SB-AKX72PN-K) Below is the System breakdown: SB-AKX52PN-K is use for the following main models: SC-AKX52EB-K SC-AKX52EG-K SC-AKX52GN-K SC-AKX52PH-K SC-AKX52PN-K SC-AKX52PR-K SB-AKX72PN-K is use for the following main models: SC-AKX72PH-K SC-AKX72PN-K SC-AKX72PR-K 1.2. Front Speakers (SB-AKX52PN/PNAK) The illustrations for the speakers will be described in this manual. - Disassembly and Assembly Instructions - Wiring Connection Diagram - Exploded View - Replacement Parts List 1.3. Subwoofer Speaker (SB-WAKX72PNK) The illustrations for the speakers will be described in this manual. - Disassembly and Assembly Instructions - Wiring Connection Diagram - Exploded View - Replacement Parts List Speaker System SB-AKX52PN-K SB-AKX72PN-K Front Speakers SB-AKX52PN-K SB-AKX52PNAK Subwoofer Speaker - SB-WAKX72PNK
Page 2
3 2 Specifications Front Speakers (SB-AKX52PN/PNAK) Ty p e3 way, 3 speaker system (Bass reflex) Speaker unit(s) Super woofer 20 cm cone type Woofer 10 cm cone type Tweeter 6 cm cone type Impedance5 Ω (high), 4 Ω (low) Output sound pressure86 dB/W (1 m) Frequency range48 Hz to 26 kHz (-16 dB) 66 Hz to 20 kHz (-10 dB) Dimensions (W x H x D)250 mm x 414 mm x 301 mm Mass5.6 kg Subwoofer Speaker (SB-WAKX72PNK) Ty p e1 way, 1 speaker system (Bass reflex) Speaker unit(s) Woofer 25 cm cone type Impedance8 Ω Output sound pressure82 dB/W (1 m) Frequency range48 Hz to 250 Hz (-16 dB) 50 Hz to 200 Hz (-10 dB) Dimensions (W x H x D)320 mm x 414 mm x 327 mm Mass8.2 kg Notes: 1. Specifications are subject to change without notice. Mass and dimensions are approximate. 2. Total harmonic distortion is measured by the digital spectrum ana- lyzer.
