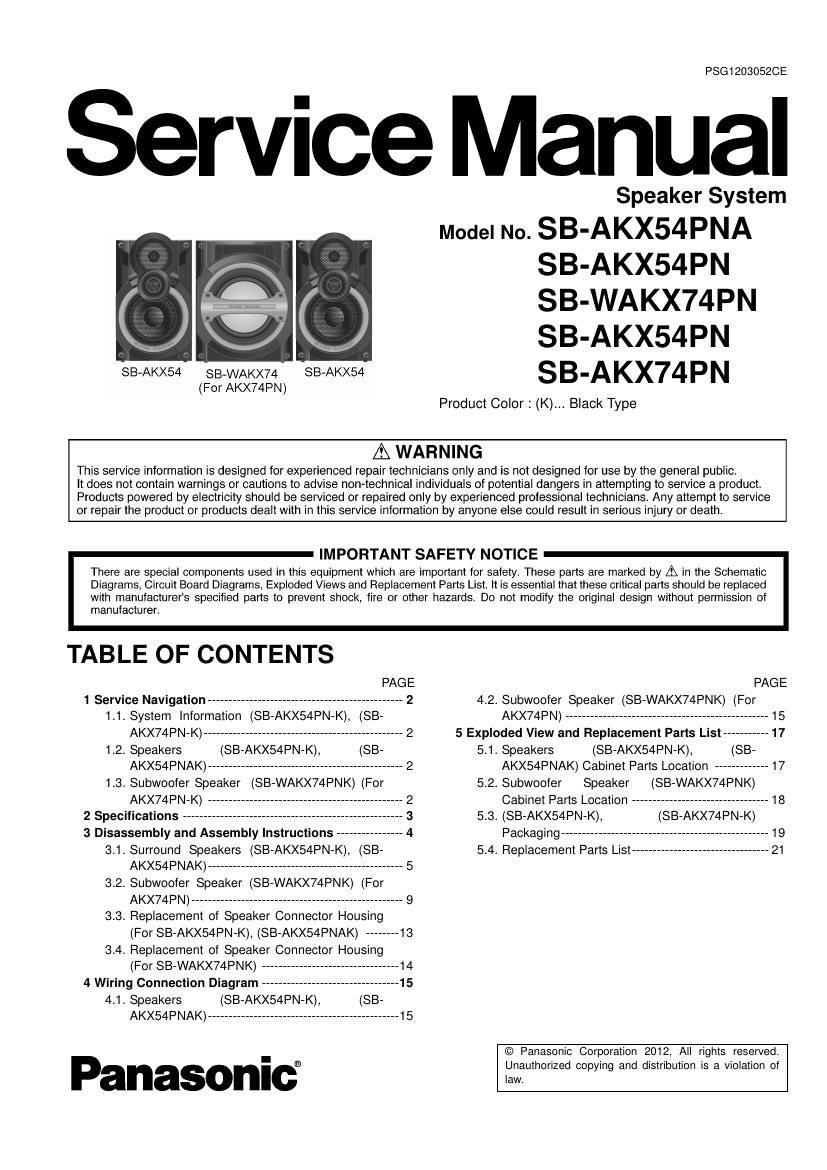

Extracted text from panasonic sb akx54pn (Ocr-read)
Page 1
2 1 Service Navigation 1.1. System Information (SB-AKX54PN-K), (SB-AKX74PN-K) Below is the System breakdown: SB-AKX54PN-K is use for the following main models: SC-AKX54GN-K SC-AKX54PH-K SC-AKX54PN-K SB-AKX74PN-K is use for the following main models: SC-AKX74PH-K SC-AKX74PN-K SC-AKX74PR-K 1.2. Speakers (SB-AKX54PN-K), (SB-AKX54PNAK) The illustrations for the speakers will be described in this manual. - Disassembly and Assembly Instructions - Wiring Connection Diagram - Exploded View - Replacement Parts List 1.3. Subwoofer Speaker (SB-WAKX74PNK) (For AKX74PN-K) The illustrations for the speaker will be described in this manual. - Disassembly and Assembly Instructions - Wiring Connection Diagram - Exploded View - Replacement Parts List Speaker System SB-AKX54PN-K SB-AKX74PN-K Speakers SB-AKX54PNAK SB-AKX54PN-K Subwoofer Speaker - SB-WAKX74PNK
Page 2
3 2 Specifications Speakers (SB-AKX54PN-K), (SB-AKX54PNAK) Ty p e3 way, 3 speaker system (Bass reflex) Speaker unit(s) Super Woofer 20 cm cone type Woofer 10 cm cone type Tweeter 6 cm cone type Impedance5 Ω (high), 4 Ω (low) Output sound pressure87 dB/W (1 m) Frequency range48 Hz to 26 kHz (-16 dB) 66 Hz to 20 kHz (-10 dB) Dimensions (W x H x D)250 mm x 429 mm x 274 mm Mass5.2 kg Subwoofer Speaker (SB-WAKX74PNK), (For AKX74PN-K) Ty p e1 way, 1 speaker system (Bass reflex) Speaker unit(s) Super Woofer 25 cm Cone type Impedance8 Ω Output sound pressure83 dB/W (1 m) Frequency range48 Hz to 250 Hz (-16 dB) 50 Hz to 200 Hz (-10 dB) Dimensions (W x H x D)320 mm x 400 mm x 274 mm Mass6.9 kg Notes: 1. Specifications are subject to change without notice. Mass and dimensions are approximate. 2. Total harmonic distortion is measured by the digital spectrum ana- lyzer.
