Extracted text from panasonic sb akx10pn (Ocr-read)

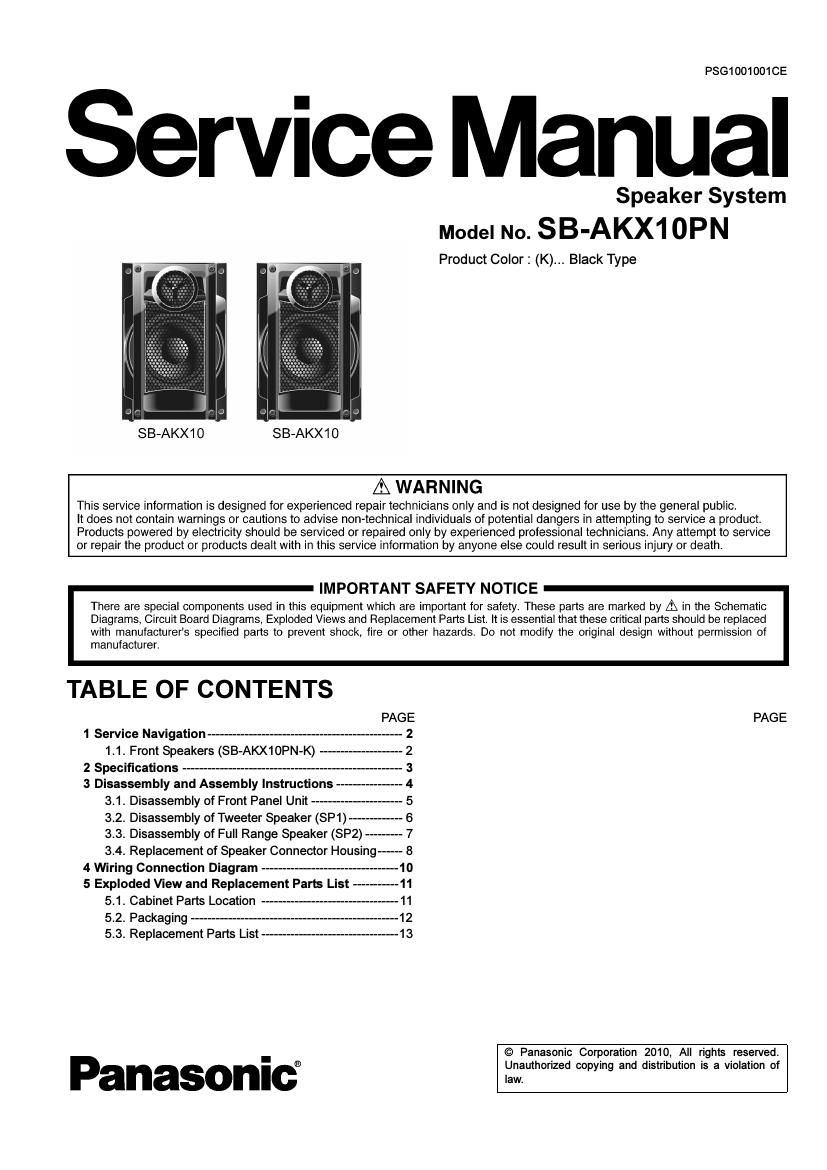

Page 1
2 1 Service Navigation 1.1. Front Speakers (SB-AKX10PN-K) The illustrations and disassembly procedures for the Front Speakers will be described in this manual.
Page 2
3 2 Specifications Front Speakers (SB-AKX10PN-K) Ty p e2 way, 2 speaker system (Bass reflex) Speaker unit(s)Impedance 4 Ω Full range 16 cm Cone type Tweeter 6 cm Cone type Output sound pressure85 dB/W (1.0 m) Frequency range34 Hz to 22 kHz (-16 dB) 41 Hz to 20 kHz (-10 dB) Dimensions (W x H x D)220 mm x 332 mm x 186 mm Mass2.6 kg Notes: 1. Specifications are subject to change without notice. Mass and dimensions are approximate. 2. Total harmonic distortion is measured by the digital spectrum ana- ly zer.
