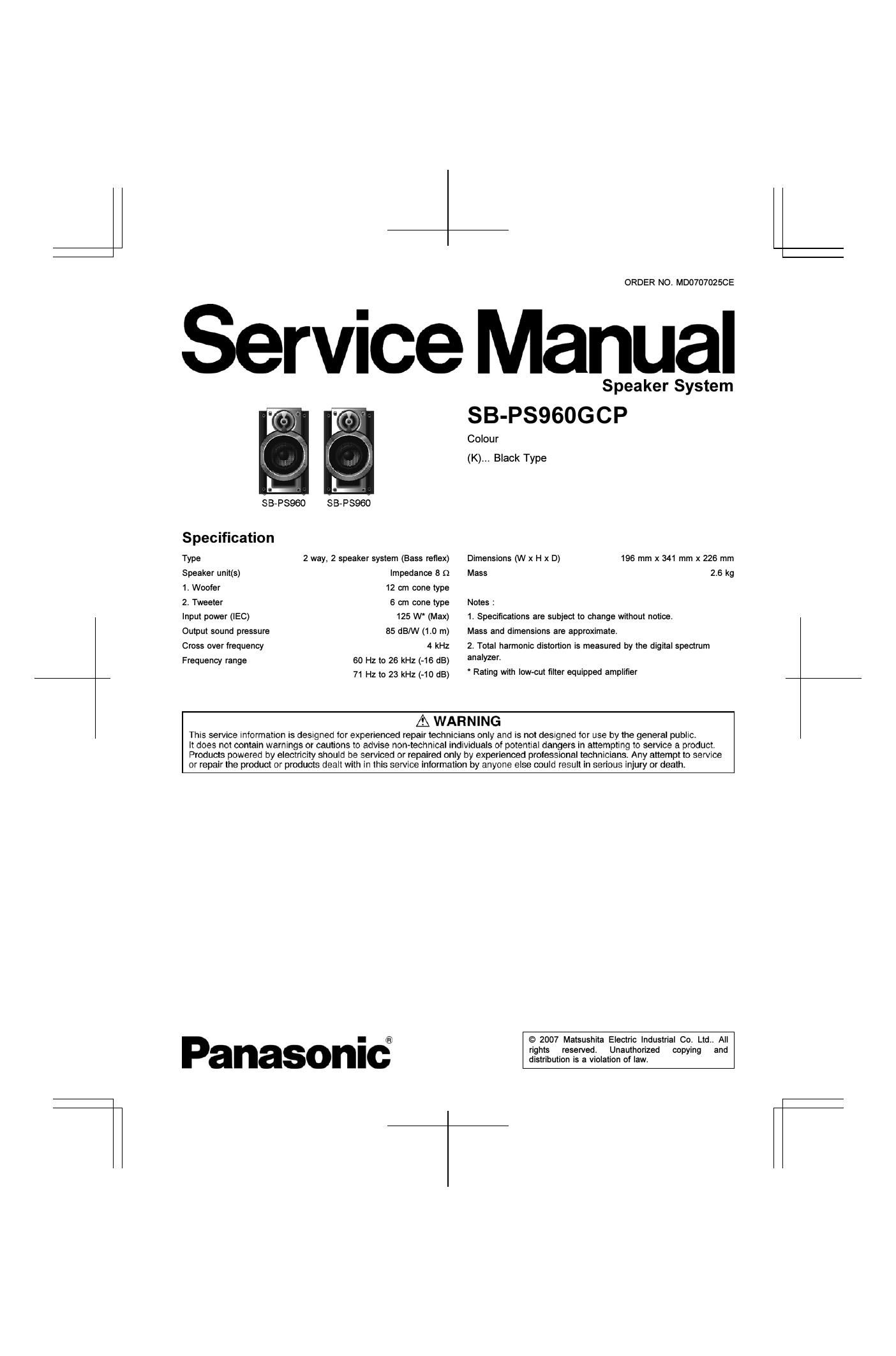

Panasonic sb ps 960 gcp service manual
This is the 13 pages manual for panasonic sb ps 960 gcp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb ps 960 gcp service manual (Ocr-read)
Page 1
1 System Combination 1.1. System Breakdown Note : The tables below show the breakdown for speaker combinations used in main unit systems. System SF-AK960GCPK Music center SA-AK960GCPK Front speakers SB-PF960GCPK Speaker system SB-AK960GCPK Surround speakers SB-PS960GCPK Subwoofer SB-WAK960GCPK Active subwoofer SB-WAK860GCPK 2 SB-PS960GCP
Page 2
2 Assembling and Disassembling ATTENTION SERVICER Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Specia l reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 4. Refer to the Parts No. on the page of Parts Locatio n and Replac ement Parts List (Section 5), if necessary. Below is the list of disassembly sections Disasse mbly of Front panel Disasse mbly of Tweeter (SP1) Disasse mbly of Woofer (SP2) 3 SB-PS960GCP
