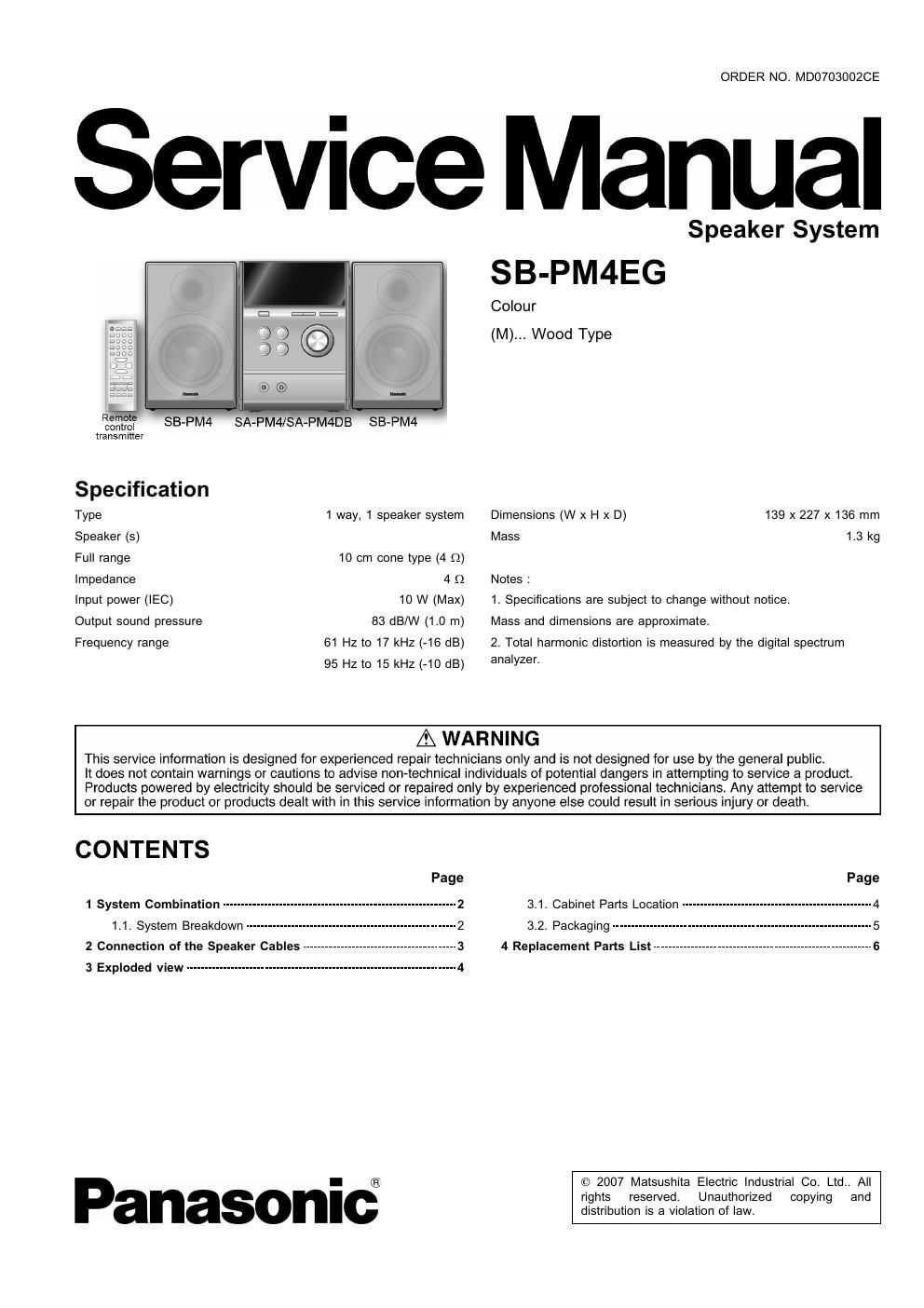

Panasonic sb pm 4 eg service manual
This is the 6 pages manual for panasonic sb pm 4 eg service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb pm 4 eg service manual (Ocr-read)
Page 1
1 System Combination 1.1. System Breakdown Note :The table below show the breakdown for speaker combinations used in main unit systems. System SC-PM4DBEB/E/EG/EB- S Music center SA-PM4DBEB/E/EG/EB- S Front speakers SB-PM4EG-M 2 SB-PM4EG
Page 2
· Be sure to connect speaker cables before connecting the AC power supply cord. · The load impedance of any speaker used with this unit must be 4Ω. · Be sure to connect the cable from the right speaker to the right terminal and the cable from the left speaker to the left terminal. 1. Twist and pull off the vinyl tip of the speaker cords. If the speaker cords do not have vinyl tips, connectthem directly to the terminals. Make sure the bare ends of the wires are not unravelled. 2. Insert the wire to the rear panel of the unit and close the lever. Notes : · To prevent damage to circuitry, never short-circuit positive (+) and negative (-) speaker wires. · Be sure to connect only positive (red) wires to positive (+) terminals and negative (black) wires to negative (-) terminals. Placem ent Speakers are designed identically sothat no left or right channel orientation is necessary. Connection Use only thesupplied speakers The combination of the main unit and speakers provide thebest sound. Using other speakers can damage the unit and sound quality will be negatively affecte d. Note · Keep your speakers at least 10 mm awayfrom the system for proper ventilation. · These speakers do not have magnetic shieldi ng. Do not place them near televisions, personal computers or other devices easily influen ced by magnetism. · You cannot take the front net off the speakers. 2 Connection of the Speaker Cables 3 SB-PM4EG
