Panasonic sb pf 460 gc service manual
This is the 11 pages manual for panasonic sb pf 460 gc service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb pf 460 gc service manual (Ocr-read)

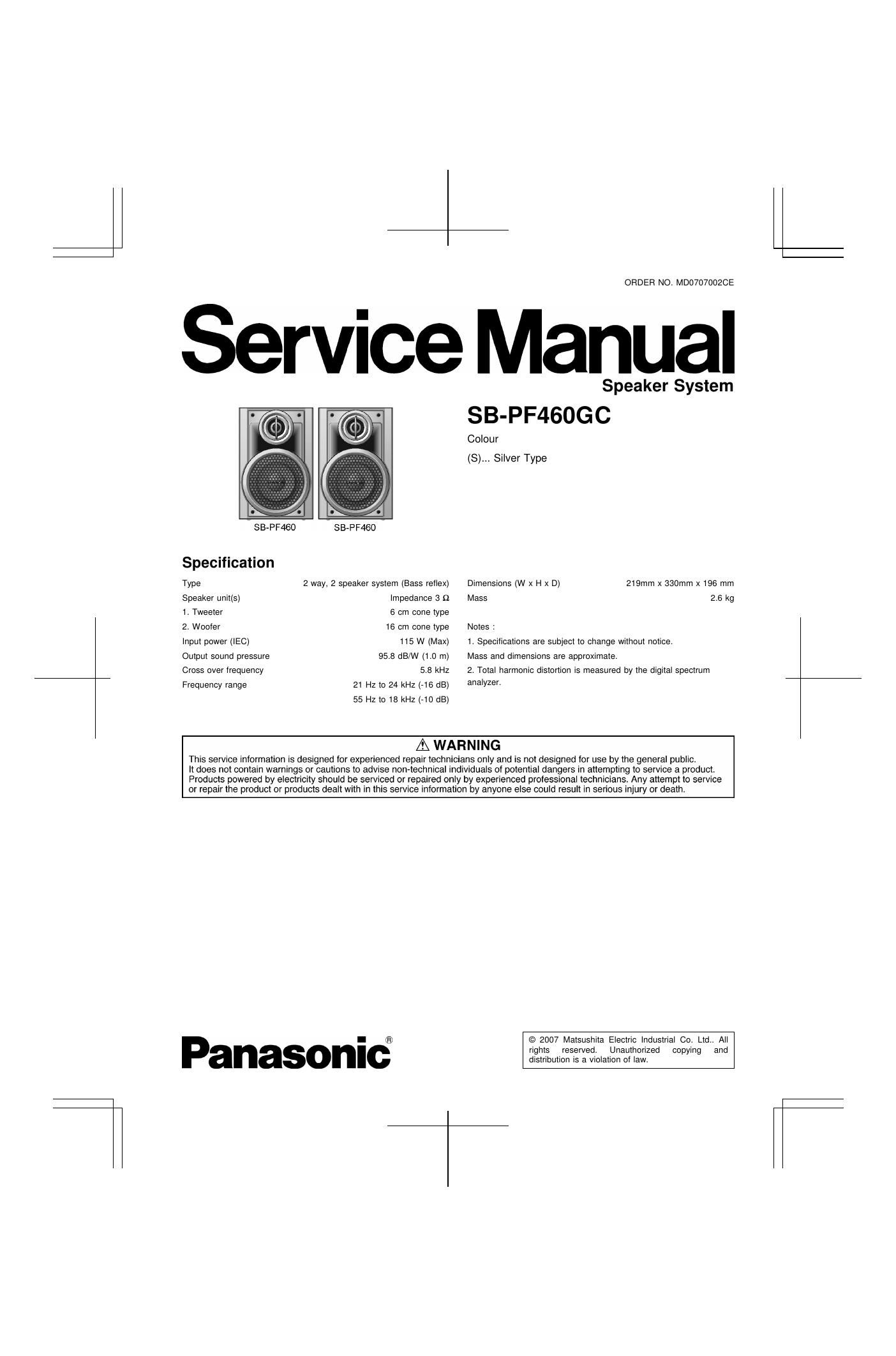

Page 1
1 System Combination 1.1. System Breakdown Note : The tables below show the breakdown for speaker combinations used in main unit systems. System SC-VK460EE-S Music center SA-VK460EE-S Front speaker SB-PF460GC-S System SC-VK460GC-S Music center SA-VK460GC-S Front speaker SB-PF460GC-S System SC-VK460GCSS Music center SA-VK460GCSS Front speaker SB-PF460GC-S System SC-VK460GCTS Music center SA-VK460GCTS Front speaker SB-PF460GC-S System SC-VK460GS-S Music center SA-VK460GS-S Front speaker SB-PF460GC-S 2 SB-PF460 GC
Page 2
2 Assembling and Disassembling ATTENTION SERVI CER Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Specia l reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 4. Refer to the Parts No. on the page of Parts Locatio n and Replac ement Parts List (Section 5), if necessary. Below is the list of disassembly sections - Disasse mbly of Rear cabinet assembly - Disasse mbly of Tweeter (SP1) - Disasse mbly of Woofer (SP2) 2.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart as below. 3 SB-PF460 GC
