Panasonic sb ns 55 p service manual
This is the 11 pages manual for panasonic sb ns 55 p service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb ns 55 p service manual (Ocr-read)

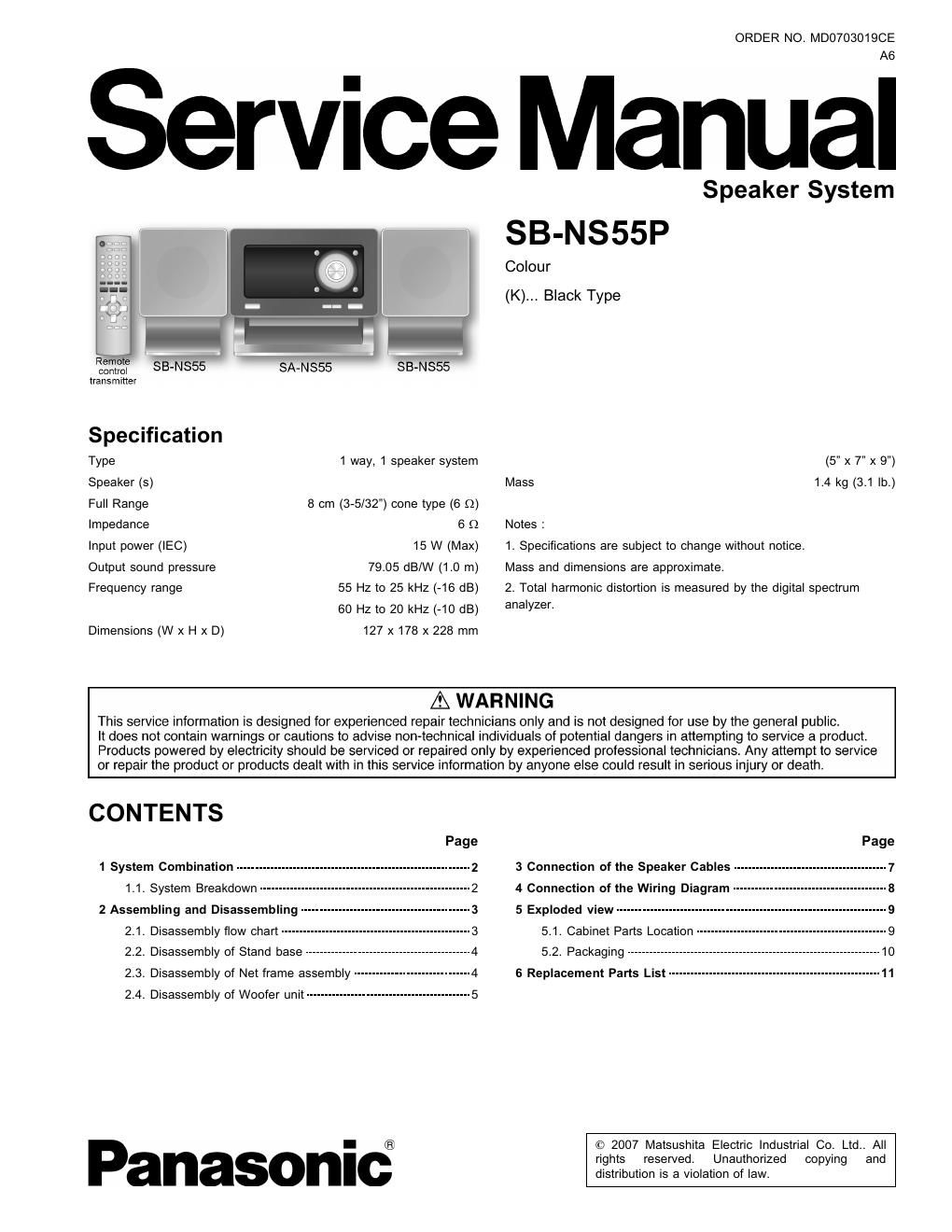

Page 1
1 System Combination 1.1. System Breakdown Note :The table below show the breakdown for speaker combinations used in main unit systems. System SC-NS55P-K Music center SA-NS55P-K Speaker system SB-NS55P-K 2 SB-NS55P
Page 2
2 Assembling and Disassembling ATTENTION SERVICER Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Specia l reassembly procedures are described only when required. 3. Select items from the followingindex when checks or replacement are required. 4. Refer to the Parts No. on the page of Parts Location and Replac ement Parts List (Section 6), if necessary. Below is the list of disassembly sections · Disasse mbly of Stand base · Disasse mbly of Net frame assembly · Disasse mbly of Woofer unit 2.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart as below. 3 SB-NS55P
