Panasonic sb hw 550 g service manual
This is the 7 pages manual for panasonic sb hw 550 g service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb hw 550 g service manual (Ocr-read)

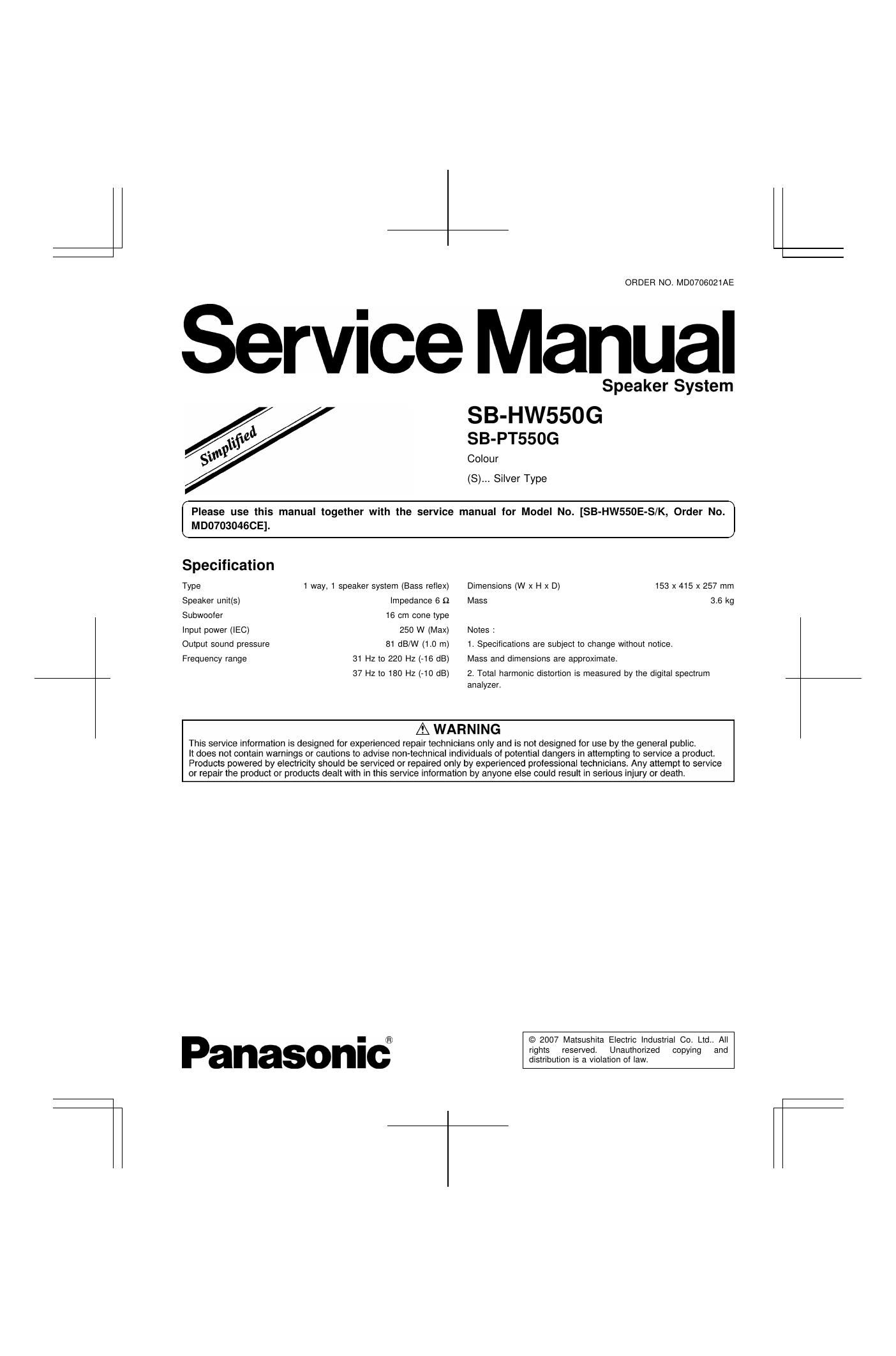

Page 1
1 System Combination 1.1. System Breakdown Note : The table below show the breakdown for speaker combinations used in main unit systems. SB-PT550G-S consists of SB-HF550G-S (x2), SB-HS550G-S (x2), SB-HC550G-S (x1). System SC-PT550GT-S Music center SA-PT550GT-S Front speaker SB-HF550G-S Surround speaker SB-HS550G-S Center speaker SB-HC550G-S Subwoofer SB-HW550G-S 2 SB-HW550G
Page 2
2 Notes This Service Manua l does not contain the following information becaus e of the similar construction between this model & base model SB-HW 550E-S/K: - Assembling and Disassembling - Connection of the speaker cables - Connection of the wiring diagram Please refer to the original Service Manua l of SB-HW 550E-S /K. (Order No. MD070 3046C E) Main differences between SB-HW 550G-S and SB-HW 550E- S/K. - Specification - Specification label 3 SB-HW550G
