Panasonic sb hs 851 g service manual

This is the 7 pages manual for panasonic sb hs 851 g service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 7
panasonic sb hs 851 g service manual

Extracted text from panasonic sb hs 851 g service manual (Ocr-read)

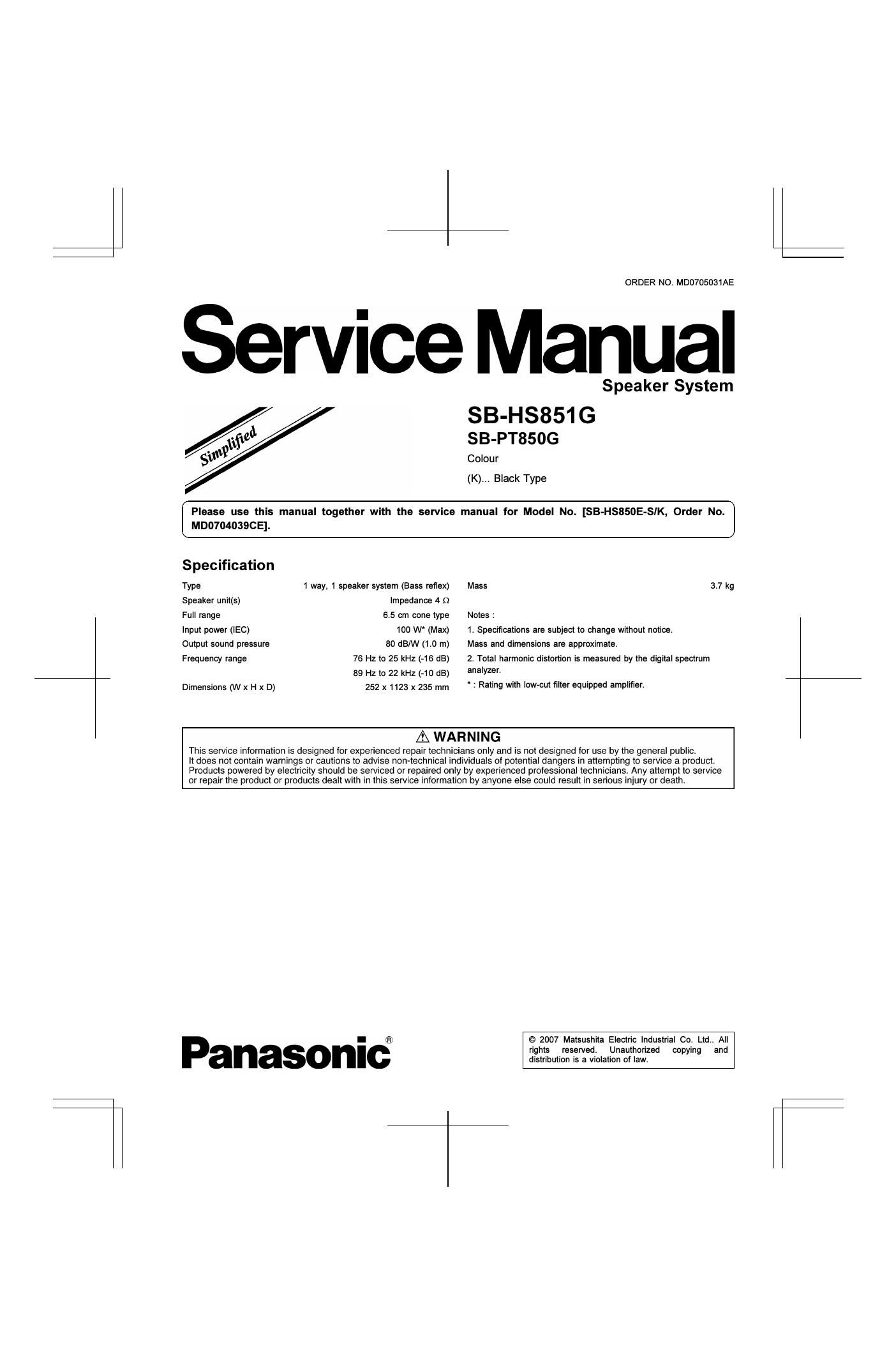

Page 1

1 System Combination 1.1. System Breakdown Note : The table below show the breakdown for speaker combinations used in main unit systems. System SC-PT850WGN-K Music center SA-PT850WGN-K Front speaker SB-HF850G-K Surround speaker SB-HS851G-K Center speaker SB-HC550E-K Subwoofer SB-HW550E-K Digital transmitter SH-PT850GN-K SB-PT850G-K consists of SB-HF850G-K (x2), SB-HS851G-K (x2), SB-HC550E-K (x1). 2 SB-HS85 1G

Page 2

2 Notes This Service Manua l does not contain the following information becaus e of the similar construction between this model & base model SB-HS850E- S/K: Assembling and Disassembling Connection of the speaker cables Connection of the wiring diagram Please refer to the original Service Manua l of SB-HS850E-S /K. (Order No. MD070 4039C E) Main differences between SB-HS851G-K and SB-HS850E- S/K. Specification Specification label 2.1. Packaging Information (SB-HS851G-K) Note : This service manual does not contain the packaging information for SB-HS851G-K. The complete packaging of SB-PT850 G-K contain s the packaging information for SB-HS851G-K . For the complete packaging of SB-PT850 G-K, please refer to (section 5.2) service manual of SB-HF850G-K (Order no. MD070 5030C E). 3 SB-HS85 1G
