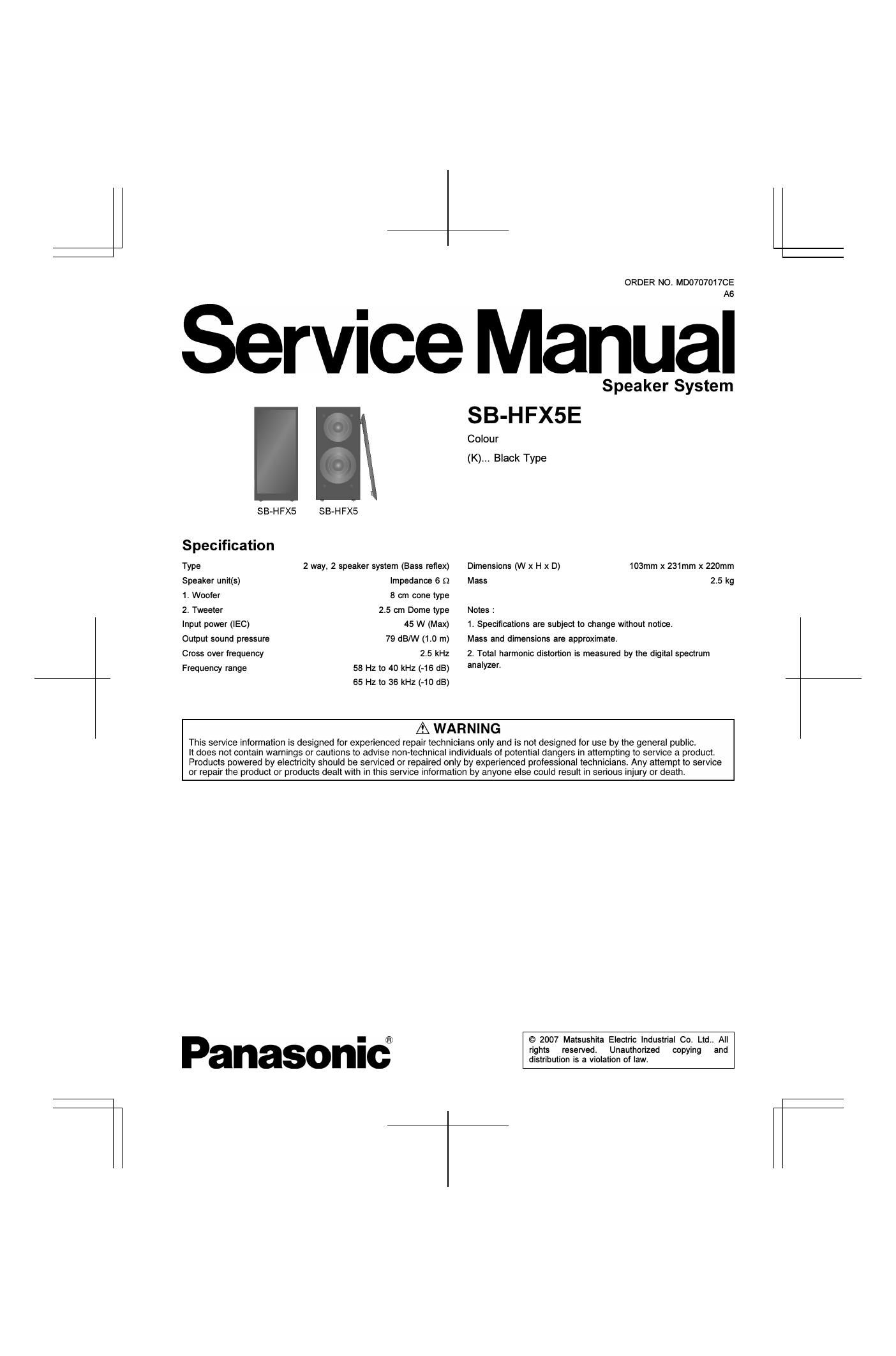

Panasonic sb hfx 5 e service manual
This is the 15 pages manual for panasonic sb hfx 5 e service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb hfx 5 e service manual (Ocr-read)
Page 1
1 System Combination 1.1. System Breakdown Note : The tables below show the breakdown for speaker combinations used in main unit systems. System SC-PTX5E-K Music center SA-PTX5E-K Speaker system SB-HFX5E-K Subwoofer SB-HW750P-K System SC-PTX5EB-K Music center SA-PTX5EB-K Speaker system SB-HFX5E-K Subwoofer SB-HW750P-K System SC-PTX5EG-K Music center SA-PTX5EG-K Speaker system SB-HFX5E-K Subwoofer SB-HW750P-K System SC-PTX5GN-K Music center SA-PTX5GN-K Speaker system SB-HFX5E-K Subwoofer SB-HW750P-K System SC-PTX5PP-K Music center SA-PTX5PP-K Speaker system SB-HFX5E-K Subwoofer SB-HW750P-K 2 SB-HFX5E
Page 2
2 Assembling and Disassembling ATTENTION SERVICER Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Specia l reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 4. Refer to the Parts No. on the page of Parts Locatio n and Replac ement Parts List (Section 6), if necessary. Below is the list of disassembly sections Disasse mbly of Net frame assembly Disasse mbly of Front panel Disasse mbly of Tweeter (SP1) Disasse mbly of Woofer (SP2) Disasse mbly of P.C.B assembly Disasse mbly of Terminal 3 SB-HFX5E
