Panasonic sb hf 850 g service manual
This is the 15 pages manual for panasonic sb hf 850 g service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb hf 850 g service manual (Ocr-read)

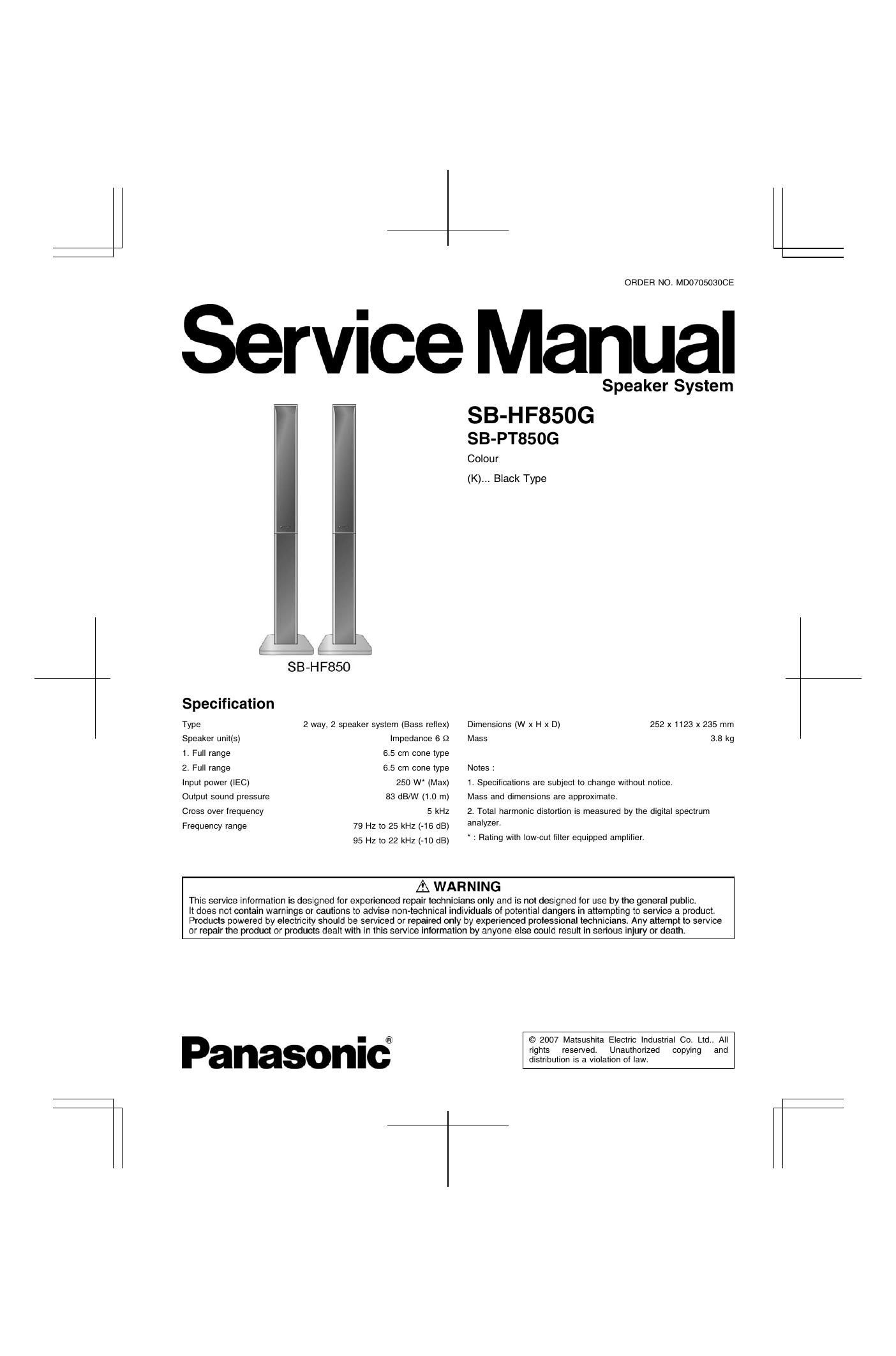

Page 1
1 System Combination 1.1. System Breakdown Note : The table below show the breakdown for speaker combinations used in main unit systems. System SC-PT850WGN-K Music center SA-PT850GN-K Front speaker SB-HF850G-K Surround speaker SB-HS851G-K Center speaker SB-HC550E-K Subwoofer SB-HW550E-K Digital Tx & Rx system SH-PT850GN-K SB-PT850G-K consists of SB-HF850G-K (x2), SB-HS851G-K (x2), SB-HC550E-K (x1). 2 SB-HF850 G
Page 2
2 Assembling and Disassembling ATTENTION SERVI CER Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Specia l reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 4. Refer to the Parts No. on the page of Parts Locatio n and Replac ement Parts List (Section 6), if necessary. Below is the list of disassembly sections - Disasse mbly of Upper box assembly - Disasse mbly of Upper rear cabinet - Disasse mbly of Woofer 1 (SP1) - Disasse mbly of Woofer 2 (SP1) - Disasse mbly of Terminal jack - Disasse mbly of Lower box assembly - Disasse mbly of Lower rear cabinet assembly - Disasse mbly of Lower base stand assembly 2.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart as below. 3 SB-HF850 G
