Panasonic sb hf 550 g service manual

This is the 7 pages manual for panasonic sb hf 550 g service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 7

Extracted text from panasonic sb hf 550 g service manual (Ocr-read)

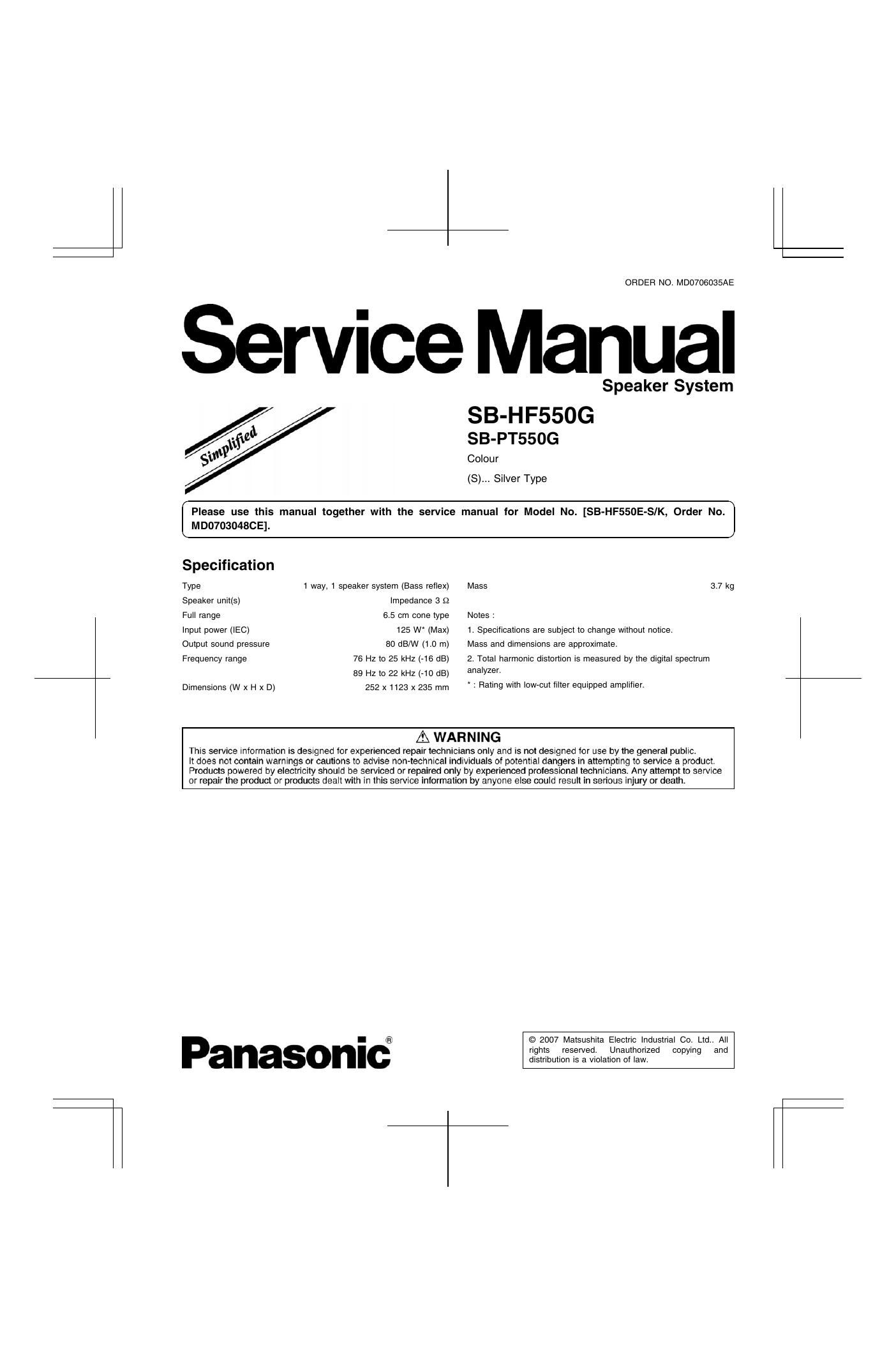

Page 1

ORDER NO. MD0706035AE

Service Manual

Speaker System

SB-HF550G
SB-PTSSOG

Colour
(8)... Silver Type

Please use this manual together with the service manual for Model No. [SB-HF550E-S/K, Order No.
MDO7030480E].

Specification
Type 1 way, 1 speaker system (Bass reflex) Mass 3.7 kg
Speaker unit(s) Impedance 3 9
Full range 6.5 cm cone type Notes :
Input power (IEC) 125 W' (Max) 1. Specifications are subject to change without notice.
Output sound pressure 80 dB/W (1.0 in) Mass and dimensions are approximate.
Frequency range 76 Hz to 25 kHz (-16 dB) 2. Total harmonic distortion is measured by the digital spectrum

89 Hz to 22 kHz (-10 dB) analyzer-
Dimensions (W x H x D) 252 x 1123 x 235 mm ' : Rating with low-cut filler equipped amplifier.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

I ii
rights reserved. Unauthorized copying and
distribution is a violation of law.
