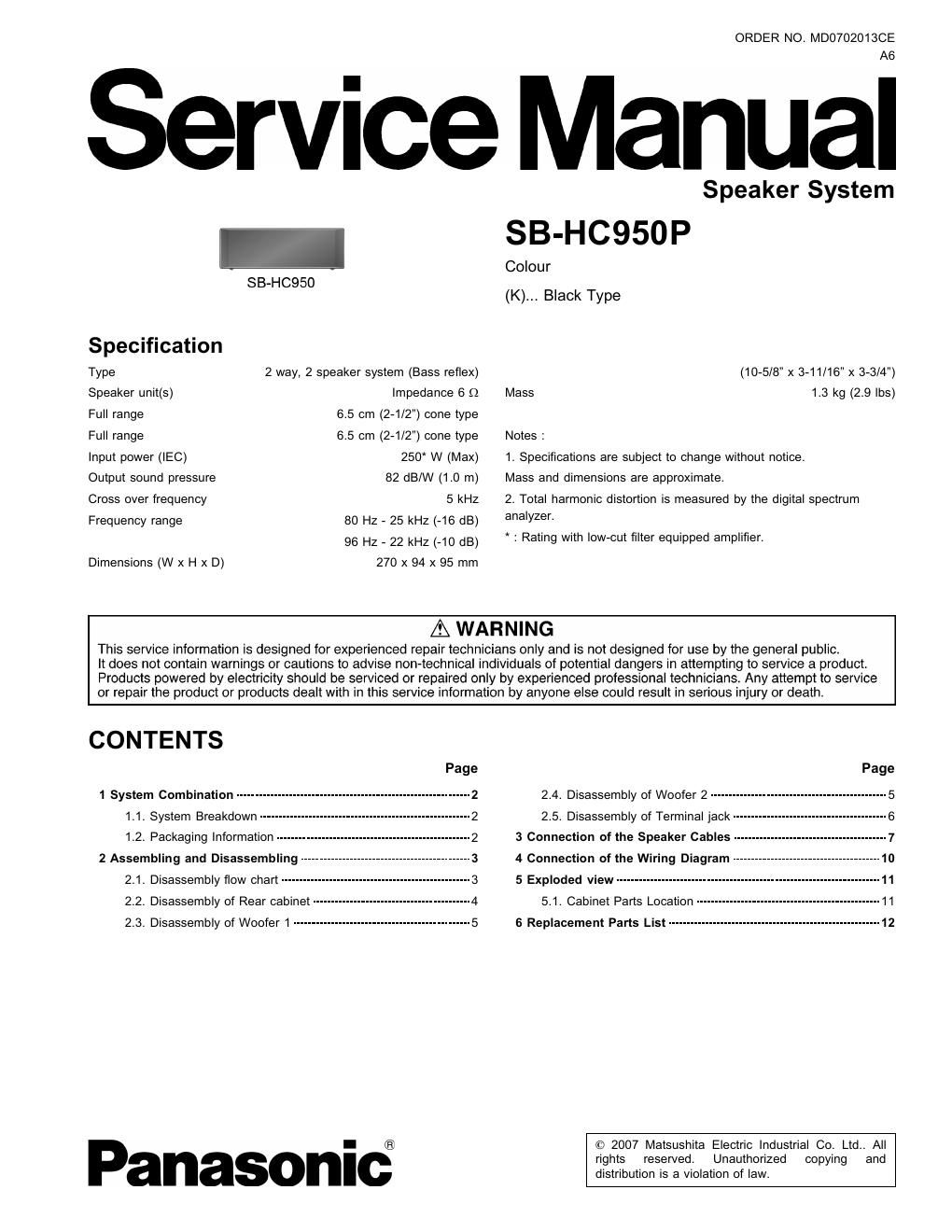

Panasonic sb hc 950 p service manual
This is the 12 pages manual for panasonic sb hc 950 p service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb hc 950 p service manual (Ocr-read)
Page 1
1 System Combination 1.1. System Breakdown Note : The diagrams below show the breakdown for speaker combinations used in main unit systems. SB-PT950 P-K consists of SB-HF950P-K (x2), SB-HS950P-K (x2), SB-HC950P-K (x1) SB-PT105 0P-K consists of SB-HF1050P-K (x2), SB-HS1050P -K (x2), SB-HC950P-K (x1) 1.2. Packaging Information Note : Please refer to service manua l of SB-HF950P-K (MD0702010CE) and SB-HF1050P-K (MD0703052CE) to understand the packaging condition for SB-HC950P-K. 2 SB-HC95 0P
Page 2
2 Assembling and Disassembling ATTENTION SERVICER Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Specia l reassembly procedures are described only when required. 3. Select items from the followingindex when checks or replacement are required. 4. Refer to the Parts No. on the page of Parts Location and Replac ement Parts List (Section 6), if necessary. Below is the list of disassembly sections · Disasse mbly of Rear cabinet · Disasse mbly of Woofer 1 · Disasse mbly of Woofer 2 · Disasse mbly ofTerminal jack 2.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart as below. 3 SB-HC95 0P
