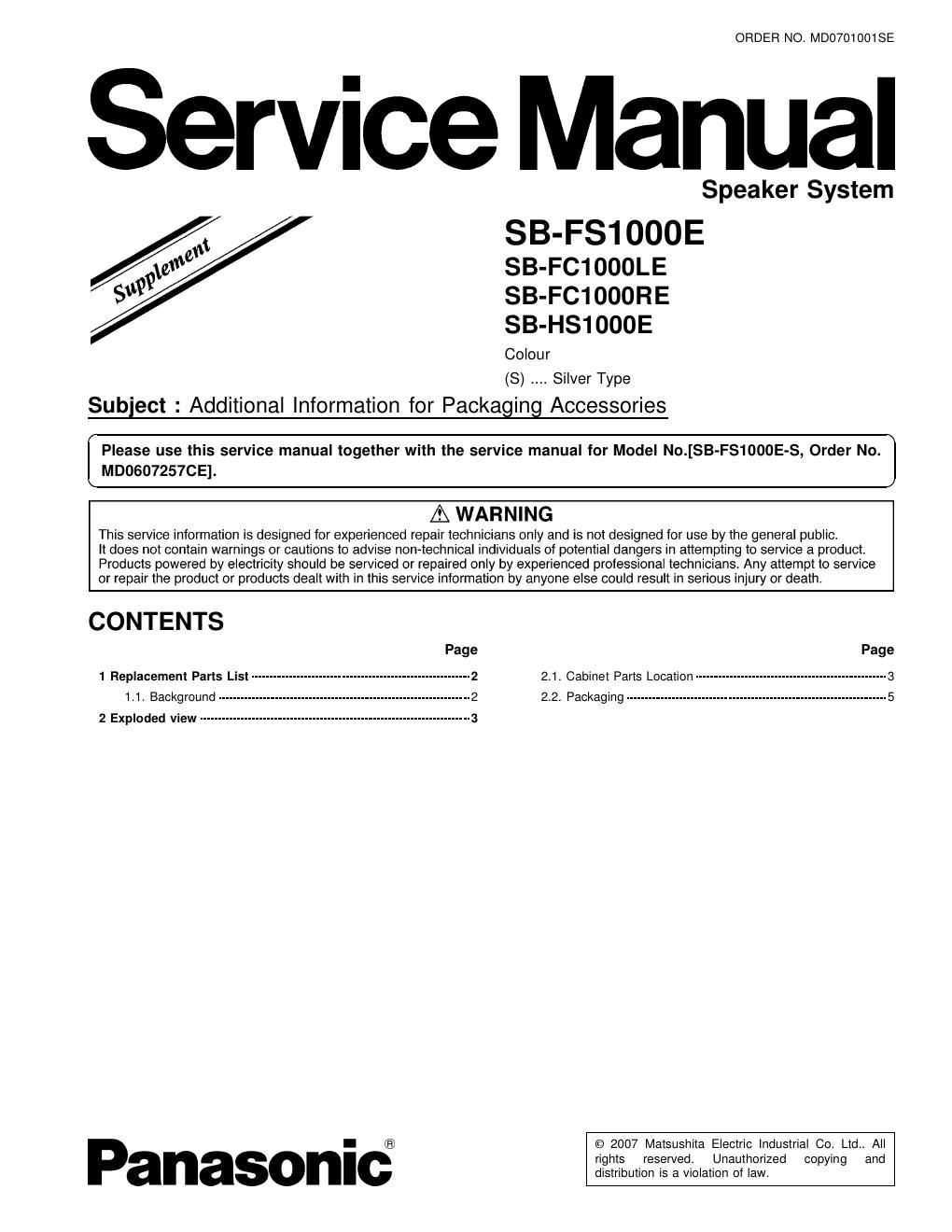

Page 1

1 Replacement Parts List 1.1. Background This document illustrates additional accessories parts found in SB-FS1000E-S. Part Number Model No. Ref. No. Original Part No. New Part No. Part Name & Descriptions REMARKS SB-FS1000E-S A5 - XSB4+20FJK Stand base mounting screws ADD [M] A6 - RKA0190-H Wall Spacers ADD [M] A9 - RMR1503-K Nylon clamp ADD [M] A10 - XTW3+10JFK Screw forNylon clamp ADD [M] [M] indicates parts that are supplied by PAVCSG. 2 SB-FS1000E

Page 2

2 Exploded view 2.1. Cabinet Parts Location 2.1.1. SB-FC1000LE/SB-FC1000RE (Revise) 3 SB-FS1000E
