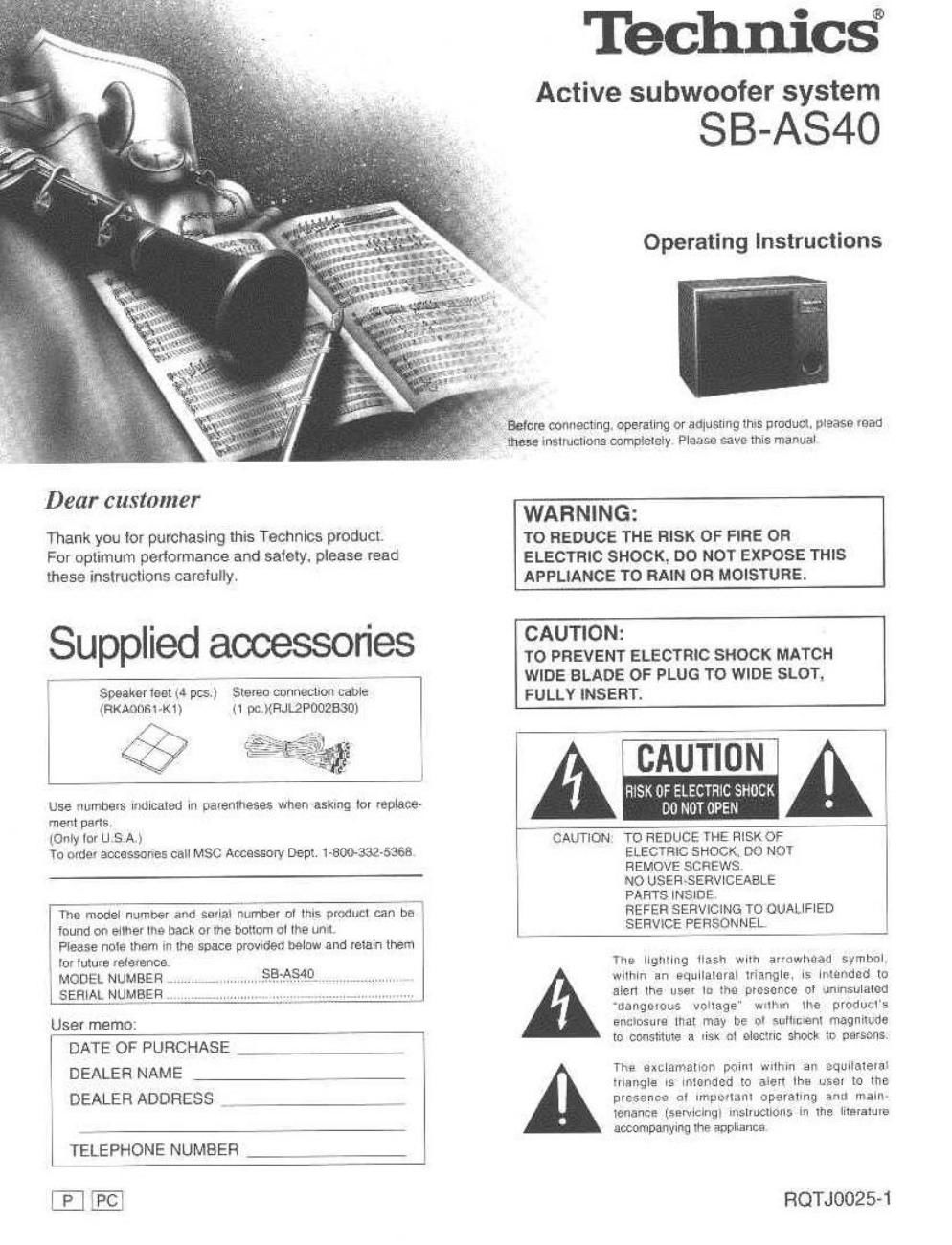

Page 1

Dear customer

Thank you Ior purchasing this Technlcs product.
For optimum pedorrnance and salary. please read
these instructions carefully

Supplied accessories
- Speaker 1991 \A pas) Stereo connection cable
(RKADDSI -K1) 0 pc )(RJLZPDOZBSO)

r" \
14\ . I
. >

s4?

Use 'IUmDSIS indicated m pavemheses when asking lo: replace-
merit DHfIb

[Only [or Li S A)

To order aocessones call M90 Accessory Dents 1-800-3326368

The mooel number and serial number 0! this producl can be
Iound on ellher me back or me bottom ol Ihe and,

Please nola them In the space provaded belnw and main them
lo: Iutura «elexsnco
MODEL NUMBER

5375??? .. A,
| SERIAL NyMBEFI

User memo:

DATE OF PURCHASE 77
DEALER NAME
DEALER ADDRESS

I TELEPHONE NUMBER

EEC

0 ®
Tbchmcs
Active subwoofer system

SB-AS4O

Operating Instructions

Before connecting operallng or adlusnng II'IlS producI, please read
We lnslrucllons completely Please save this manual

WARNING:

TO FIEDUCE THE FIISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH
WIDE BLADE OF PLUG TO WIDE SLOT.
FULLY INSERT.

CAUTION

RISK OF ELECTRIC SHOCK

A Do NOT OPEN

CAUTION TO REDUCE THE RISK OF
ELECTRIC SHOCKI DO NOT
REMOVE SCREWS
NO USERSERVICEABLE
PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL

the lighting Hash wun arrowhead symbol

wnhm an equilateral lriangle l5 intended lo
alen the user In me presence r)! uninsulalod
uangorow voliage" wxlhm IIIO produzrls
Enclosure man may be 0' summer magmwde
ID commie a iisx oi electric shock ID persons,
The exclamation pmnl mlhln an equllmeval
mangle: I5 warmed to aien Iha use! to me
presencs oI Imp-31mm operating aml mam.

rename (sewlclngl mslmcllon'. In me. lnnraluve
accompanying 1hr- appliance

RQTJ0025-1

Page 2

Precautions

Before using this unit please read these operating instructions care-
fully. Take special care to follow the warnings indicated on the unit
itself as well as the safety suggestions listed below.

Afterwards keep them handy lor future reference.

Safety

Maintenance

1. Power SourcehThe unit should be connected to power supply
only of the type described in the operating instructions or as
marked on the unit.

2. Polarization-If the unit is equipped with a polarized AC power
plug (a plug having one blade wider than the other). that plug will
lit into the AC outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet, try reversing the
plug. It the plug should still tail to fit. contact your electrician to
replace your obsolete outlet. Do not defeat the safety purpose of
the polarized plug.

3. Power Cord Protection-AC power supply cords should be
routed so that they are not likely to be walked on or pinched by
items placed upon or against them. Never take hold of the plug or
cord if your hand is wet. and always grasp the plug body when
connecting or disconnecting it.

4. Nonuse Periods-When the unit is not used. turn the power oil.
When left unused for a long period of time. the unit should be
unplugged from the household AC outlet.

Installation

Environment

1. Water and Moisture-Do not use this unit near water-for ex-
ample. neara bathtub. washbowl. swimming pool. orthe like. Damp
basements should also be avoided.

2. Heat-The unit should be situated away from heat sources such
as radiators and the like. It also should not be placed in tempera-
tures less than 5°C (41°F) or greater than 85"C (95°F).

Placement

1. Ventilation-The unit should be situated so that its location or
position does not interfere with its proper ventilation. Allow 10 cm
(4") clearance from the rear of the unit.

2. Foreign Material-Care should be taken so that objects do not
fall into and liquids are not spilled into the unit. Do not subject this
unit to excessive smoke. dust. mechanical vibration. or shock.

3. Magnetism-The unit should be situated away from equipment
or devices that generate strong magnetic fields.

4. stacking-Do not place heavy objects. other than system com-
ponents. on top of the unit.

5. Surface-Place the unit on a flat. level surface.

6. Carts and Stands-The unit should be used only with a cart or
stand that is recommended by the manufacturer. The unit and
cart combination should be moved with care.

Quick stops. excessive force. and uneven sur-
faces may cause the unit and cart combination to
overturn.

7. Wall or Ceiling Mounting-The unit should not be mounted to a
wall or ceiling. unless specified in this operating instructions.

Clean the cabinet. panel and controls with a soft cloth lightly moist-
ened with mild detergent solution.

Do not use any type of abrasive pad. scouring powder or solvent
such as alcohol or benzine.

Service

1. Damage Requiring Servlce-The unit should be serviced by
qualified service personnel when:

(a) The AC power supply cord or the plug has been damaged: or

(b) Objects have fallen or liquid has been spilled into the unit; or

(c) The unit has been exposed to rain; or

(d)The unit does not appear to operate normally or exhibits a
marked change in performance: or

(e) The unit has been dropped. or the enclosure damaged.

2. Servicing-The user should not attempt to service the unit beyond
that described in the operating instructions. All other servicing
should be referred to an authorized service personnel.

(Only for USA)
Call 1-800-545-2672 for the address of an authorized factory
servicenter.

Listening caution

g

Selecting fine audio equipment such as the unit you've just pur-
chased is only the start of your musical enjoyment. Now its time
to consider how you can maximize the fun and excitement your
equipment offers. This manufacturer and the Electronic In-
dustries Association's Consumer Electronics Group want you to
get the most out of your equipment by playing it at a safe level.
One that lets the sound come through loud and clear without an-
noying blaring or distortion-and. most importantly. without affec-
ting your sensitive hearing.

We recommend you to avoid prolonged exposure to excessive
noise.

Sound can be deceiving. Over time your hearing comfort level

adapts to higher volumes of sound. So what sounds normal"

can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level

BEFORE your hearing adapts.

To establish a safe level:

0 Start your volume control at a low setting.

- Slowly increase the sound until you can hear it comfortably and
clearly, and without distortion.

Once you have established a comfortable sound level:
- Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing
damage or loss in the future, After all. we want you listening for a
lifetime.
