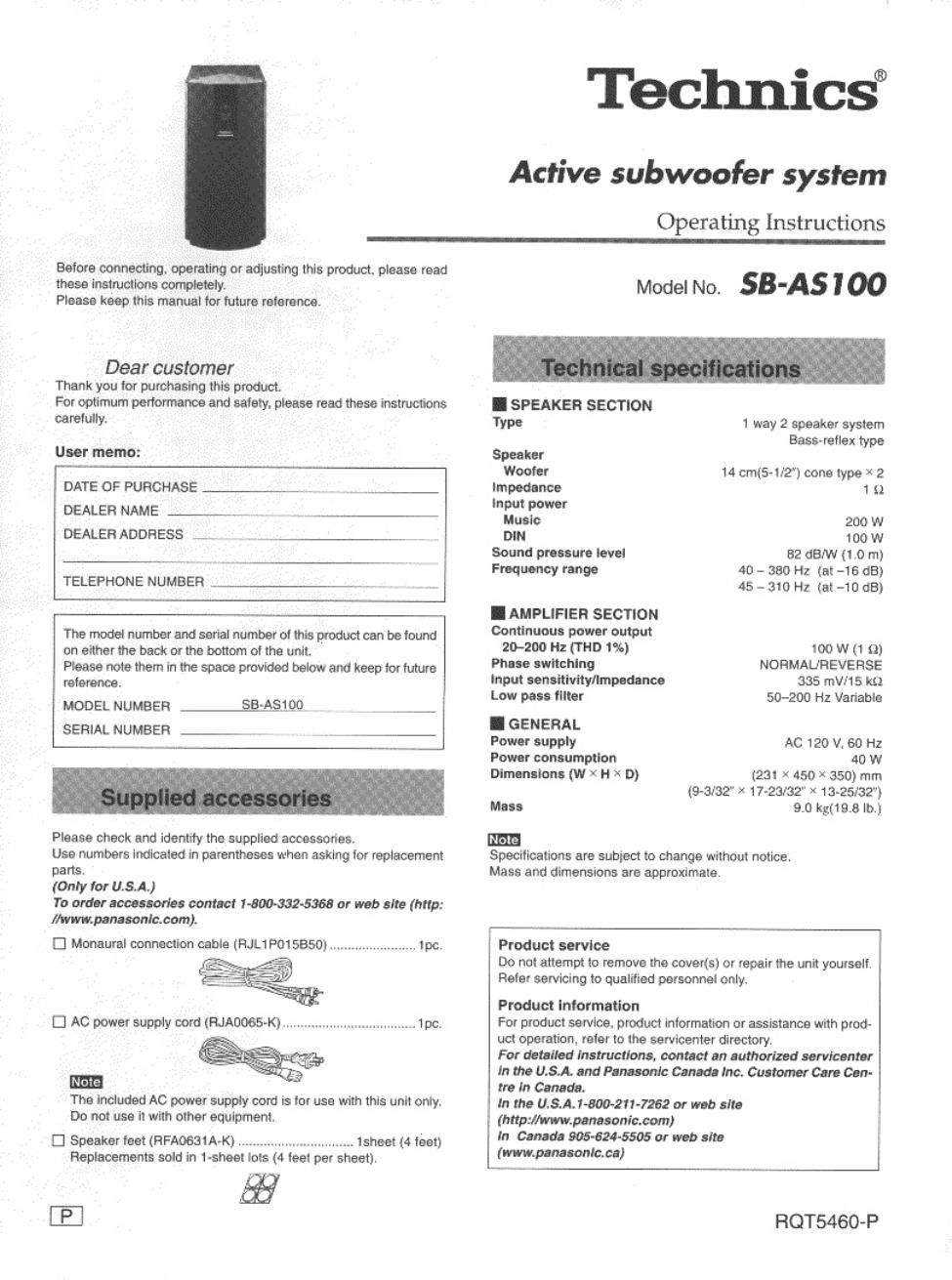

Page 1

Before connecting. operating or adjusting this product. please read
these instructions completely
Please keep this manual for future relerence,

Dear customer
Thank you tor purchasing this product.
For optimum performance and salety. please read these instmctions
carefully.

User memo:
DATE OF PURCHASE _...
DEALER NAME _....
DEALER ADDRESS _-..
TELEPHONE NUMBER __-..

The model number and serial number 01 this product can be found
on either the back or the bottom at the unit.

Please note them in the space provided below and keep for future
reference.

MODEL NUMBER 55418190
SERIAL NUMBER - . . .._

Please check and identity the supplied accessories.

Use numbers Indicated in parentheses when asklng lor replacement
parts.

(Only In: u.s.A.)

To WWW contact 1-800-362-5368 or web sine (Imp:
mini-laminar").

CI Monaural connection cable (RJL1P015850) 1pc.

2'?

El Ac power supply cord (Rleoss-K) 1pc

The included AC power supply cord is for use with this unit only.
Do not use It with other equipment.

1] Speaker feet (RFAosatA-K) tsheet (4 feet)
Replacements sold in 1-sheet lots (4 feet per sheet).

a
El

Technics®

Active subwoofer system

Operating Instructions

__

Model No. SB-AS 100

I SPEAKER SECTION
Type 1 way 2 speaker system
Bass-reflex type

Speaker

Woofer 14 cm(5-l/2) cone type X 2
Impedance 1 st
Input power

Muelc 200 w

DIN 100 W
Sound pressure level 82 dB/W (t .0 m)
Frequency range 40 - 380 Hz (at -16 dB)

45 - 310 Hz (at -10 dB)

I AMPLIFIER SECTION
Continuous power output

20-200Hzr1'HD 1%) 100W(1(i)
Phase twitching NORMAUREVE RSE
Input oensitivityllmpedlnce 335 mVi15 kn

Low pan filter 50-200 Hz Variable

I GENERAL

Power supply AC 120 V. 60 Hz

Power consumption 40 W

Dimensions (W 3 H X D) (23f X 450 x 350) mm
(9-31'32" X 17-23/32" X 13-25/32")

Men 9.0 kg(19,8 lb.)

Specifications are subject to change without notice.
Mass and dimensions are approximate.

Product service
Do not attempt to remove the cover(s) or repair the unit yourself.
Refer servicing to qualified personnel only.

Product Information

For product service. product information or assistance wrth prod-
uct operation, rater to the servioenter directory.

For denim! Instructions. connect on authorized urvlcenm
in the 0.5.4. and Panasonic Canada inc. Customer Can Gen-
rre in Canada.

In the U.S.A.1-800~211-7262 or woo Alta
(hnp://www.panesonrc.com)

In Canada 905-624-6505 or no em

(mpanaeonlcca)

RQT5460-P

Page 2

h Positioning the speaker

fl Attach the rubber feet (included) to the speaker
Attach these mbber leet to prevent vibration causing the speaker to
move or fall over.

" E The diagram shows the basic positioning of each
I I speaker.
) - The subwoofer can be placed in any position as long as it is at a

reasonable distance from the TV.
a - Do not place any object on top of this unit.

It Irregular coloring occurs on your television

this speaker is designed to be used close to a television, but the

E picture may be affected with some televisions and set-up combina-
tions.

Center speaker Surround speakers If this occurs. turn the television off for about 30 minutes.

(not included) TV (not included) (not included) The televisions demagnetizing function should correct the problem.

if it persists, move the speaker further away from the television.

Note:
Do not attach this speaker to walls or ceilings.

Protection circuitry

This unit incorporates speaker-protection circuits to prevent dam-

age caused by excessive input ar abnormal signals. When excess

input is detected, the input is automatically interrupted,

I ll sound is interrupted...

SUDWOOter 1. Reduce the volume level from the receiver or amplifier.

Front speakers 2. Check whether or not there is anything wrong with the equipment
(0 included) used such as the sound source, or connections. If there is noth-

ing wrong, turn off the power.

3. Turn on the power once again.

I After the protection circuitry is reset...

Take care not to increase the receiver's or amplifier's volume level

too much.

Active

Other notes:

Be sure to reduce the volume on the receiver (or amplifier) when the
signal input exceeds the rated allowable input to avoid damage to
circuitry or other malfunctions,

Monaural connection cable
(included) 6 In}

I Connections

Connecting to receiver (or amplifier)

Household AC outlet _
(AC 120V/60Hz)

Note:
» - Can be connected to a receiver (or amplifier) with a pin cord type

subwoofer terminal,
fie IPZWS; SUWW cord - Before making the connections. switch OFF the power to the re»
|nCU E

Receiver (or amplifier) ceiver (or amplifier).
(not included)

00000
00000

Power connections
Connect AC power supply cord after all other cables and cords are
connected.

Note

1. Avoid placing in areas as follows:
- In direct sunlight
. Near heating appliances or other sources of heat
- Where there is high humidity
2. Never use alcohol, paint thinner, benzine or similar chemicals to
clean the unit, as they may damage the finish.

'HOT5460
