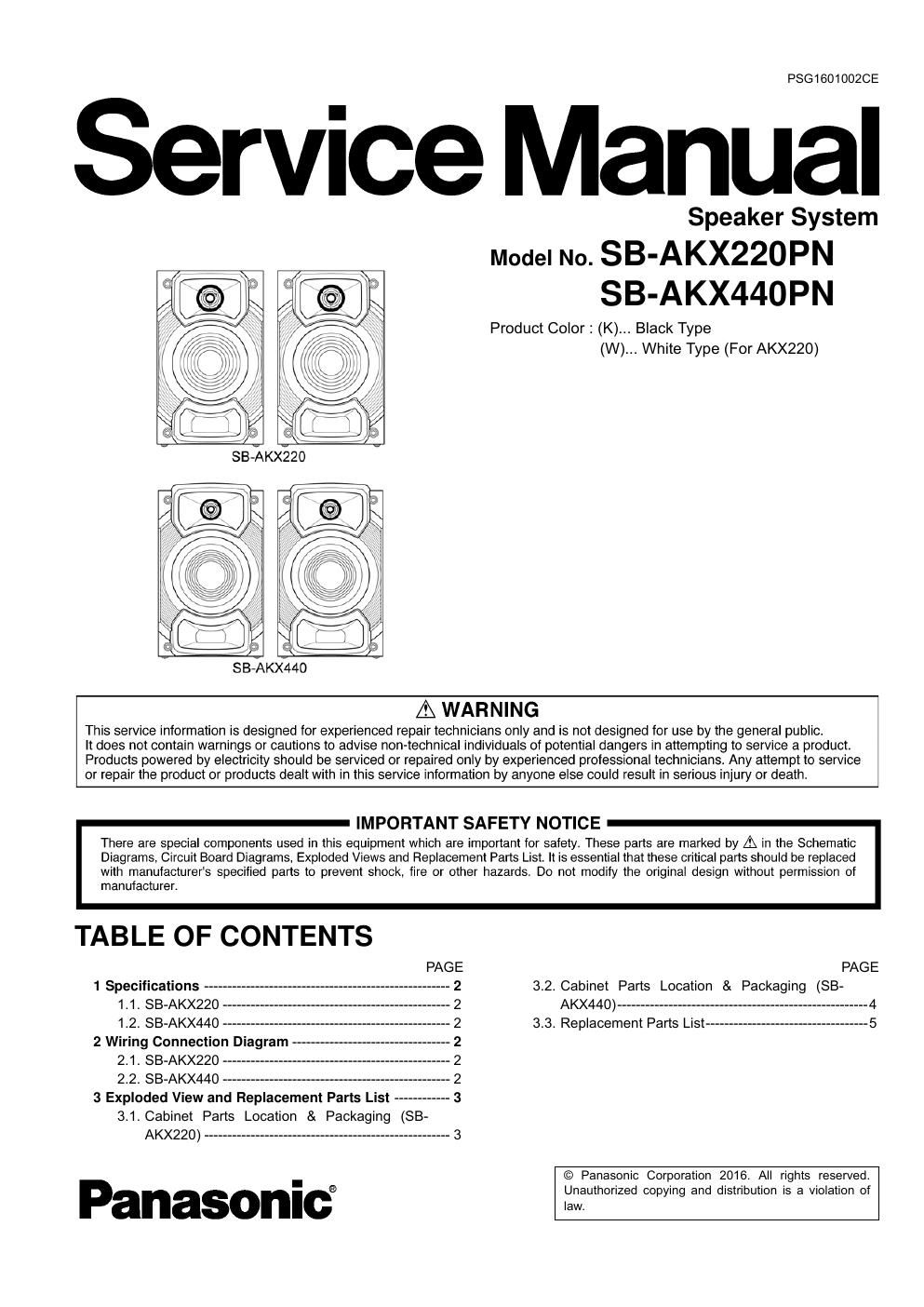

Panasonic sb akx220p service manual

This is the 5 pages manual for panasonic sb akx220p service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 5
panasonic sb akx220p service manual

Extracted text from panasonic sb akx220p service manual (Ocr-read)


Page 1

2 1 Specifications 1.1. SB-AKX2201.2. SB-AKX440 2 Wiring Connection Diagram 2.1. SB-AKX220 2.2. SB-AKX440 Speaker unit(s) Full Range 16 cm cone type Tweeter 6 cm cone type Impedance 4 Ω Dimensions (W x H x D) 199 mm x 333 mm x 210 mm Mass 3.3 kg Notes: 1. Specifications are subject to change without notice. Mass and dimensions are approximate. 2. Total harmonic distortion is meas ured by the digital spectrum ana- lyzer. Speaker unit(s) Full Range 20 cm cone type Tweeter 6 cm cone type Impedance 3 Ω Dimensions (W x H x D) 257 mm x 422 mm x 219 mm Mass 4.5 kg Notes: 1. Specifications are subject to change without notice. Mass and dimensions are approximate. 2. Total harmonic distortion is m easured by the digital spectrum ana- lyzer.

Page 2

3 3 Exploded View and Replacement Parts List 3.1. Cabinet Parts Location & Packaging (SB-AKX220) P2 P2 *P1 POLYFOAM (TOP) POLYFOAM (BOTTOM)*P1 *P1SB-AKX220PN SB-AKX220PN SP2 SP1 7 7 6 6 6 6 5 5 5 5 5 5 5 5 4 3 3 3 3 2 1 c d a b ab c d 1 2 3 4 567 8 9 A B C DE F G H 10 11 12 13 SB-AKX220PNK SB-AKX220PNW CABINET DRAWING SB-AKX220PNK SB-AKX220PNW PACKAGING DRAWING
