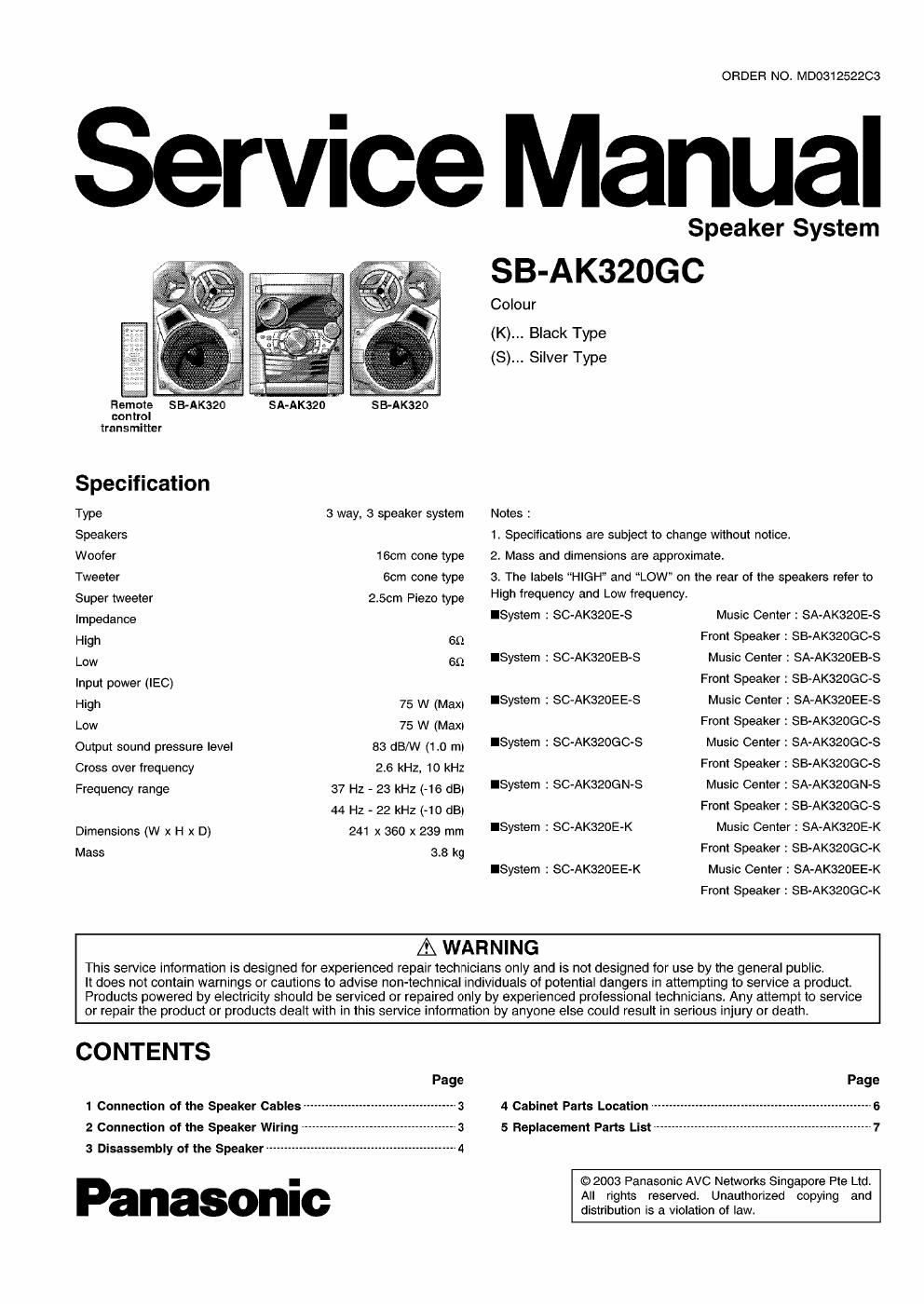

Page 1

ORDER NO. MD0312522C3

rvice Manual

Remote SB-AK320
control
transmitter

Speedwafion

Type

Speakers

Woofer

Tweeter

Super tweeter
Impedance

High

Low

Input power (IEC)
High

Low

Output sound pressure level
Cross over frequency
Frequency range

Dimensions (W x H x D)
Mass

SB-AK320

3 way, 3 speaker system

16cm cone type
6cm cone type
2.50m Piezo type

69
69

75 W (Max)

75 W (Max)

83 (BM (1.0 m)

2.6 kHz, 10 kHZ

37 Hz - 23 kHZ (-16 dB)
44 Hz - 22 kHZ (-10 dB)
241 x 360 x 239 mm
3.8 kg

Speaker System
SB-AK320GC

Colour

(K)... Black Type
(8)... Silver Type

Notes :
1. Specifications are subject to change without notice.
2. Mass and dimensions are approximate.

3. The labels HIGH" and LOW" on the rear of the speakers refer to
High frequency and Low frequency.

ISystem : SC-AK32OE-S Music Center : SA-AK320E-S
Front Speaker : SB-AK32OGC-S
Music Center : SA-AKSZOEB-S
Front Speaker : SB-AKSZDGC-S
Music Center : SA-AKSZOEE-S
Front Speaker : SB-AK32OGIC-S
Music Center : SA-AKSZOGC-S
Front Speaker : SB-AK3ZOGIC-S
Music Center : SA-AK32OGN-S
Front Speaker : SBAK32OGC'S
Music Center : SA-AK320E-K
Front Speaker : SB-AK32OGC-K
Music Center : SA-AKSZOEE-K
Front Speaker : SB-AK32OGC-K

ISystem : SC-AKSZDEB-S

ISystem : SC-AK320EE»S

ISystem : SC-AK32OGC-S

ISystem : SCvAK32DGN-S

ISystem : SC~AK320E~K

ISystem : SC-AK320EE-K

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians, Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

Page
1 Connection of the Speaker Cables ----------------------------------------- 3
2 Connection of the Speaker Wiring ----------------------------------------- 3
3 Disassembly of the Speaker --------------------------------------------------- 4

Panasonic

Page
4 Cabinet Parts Location ----------------------------------------------------------- 6
5 Replacement Parts List ---------------------------------------------------------- 7

@2003 Panasonic AVC Networks Singapore Ple Ltd,
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

6 Packaging ------------------------------------------------------------------------------- 7
