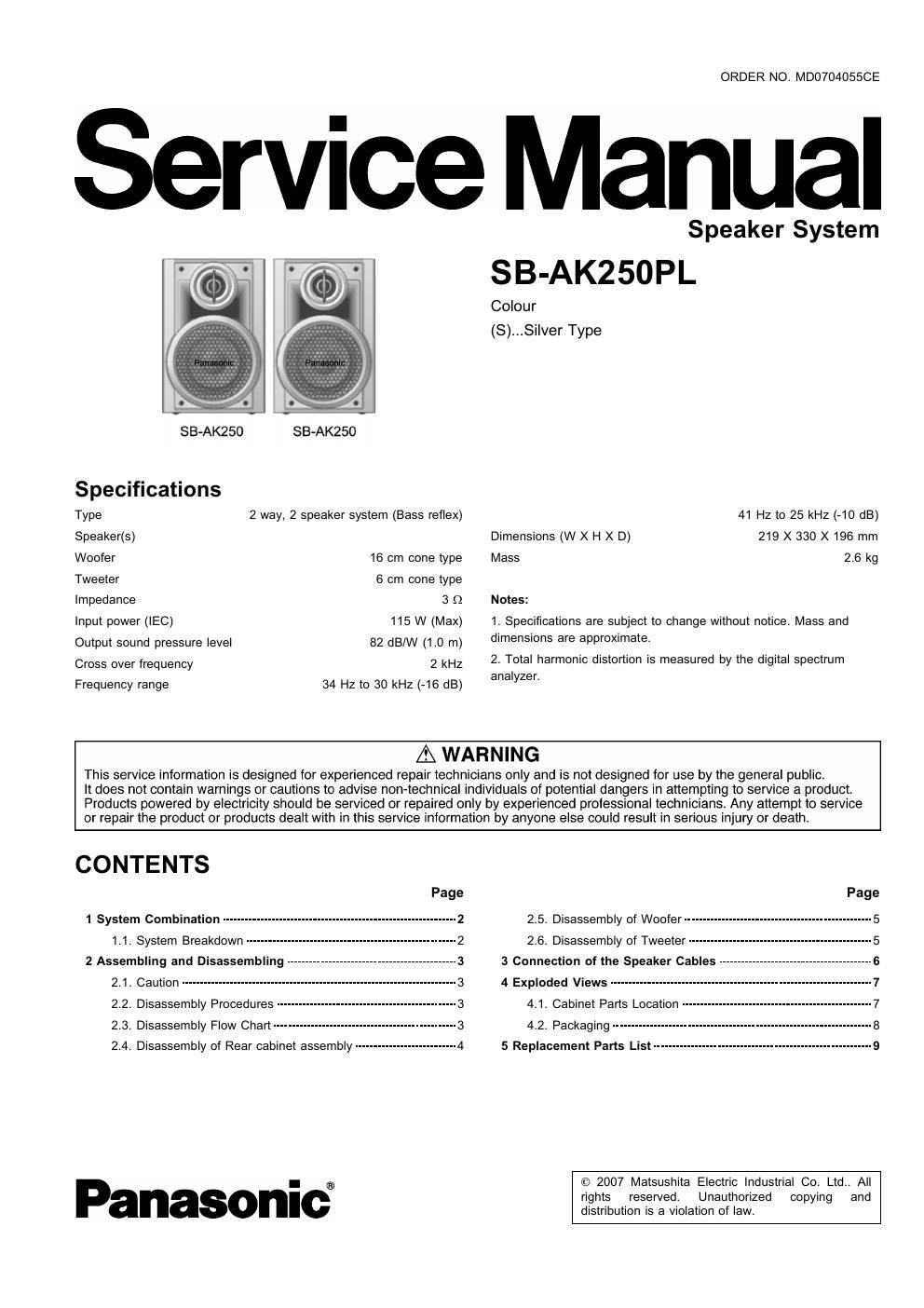

Panasonic sb ak 250 pl service manual
This is the 9 pages manual for panasonic sb ak 250 pl service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sb ak 250 pl service manual (Ocr-read)
Page 1
1 System Combination 1.1. System Breakdown Note: The tables below show the breakdown for speaker combinations used in main unit system. 1.1.1. ForSB-AK250PL-S 2 SB-AK250PL
Page 2
2 Assembling and Disassembling 2.1. Caution Attention Servic er Some chassis components may have sharp edges. Be careful when disassembly and servicing. 1. This section describes procedure for checking the operation of replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. 3. Select items from the followingindex when checks or replacement are required. 4. Refer to the Part No.on the page of Parts Location and Replac ement Parts List (Section 5) if necessary. 2.2. Disassembly Procedures · Disassembly of Rear cabine t assembly · Disassembly ofWoofer · Disassembly of Tweeter 2.3. Disassembly Flow Chart The following chart is the procedure for disassembly the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart as below. 3 SB-AK250PL
