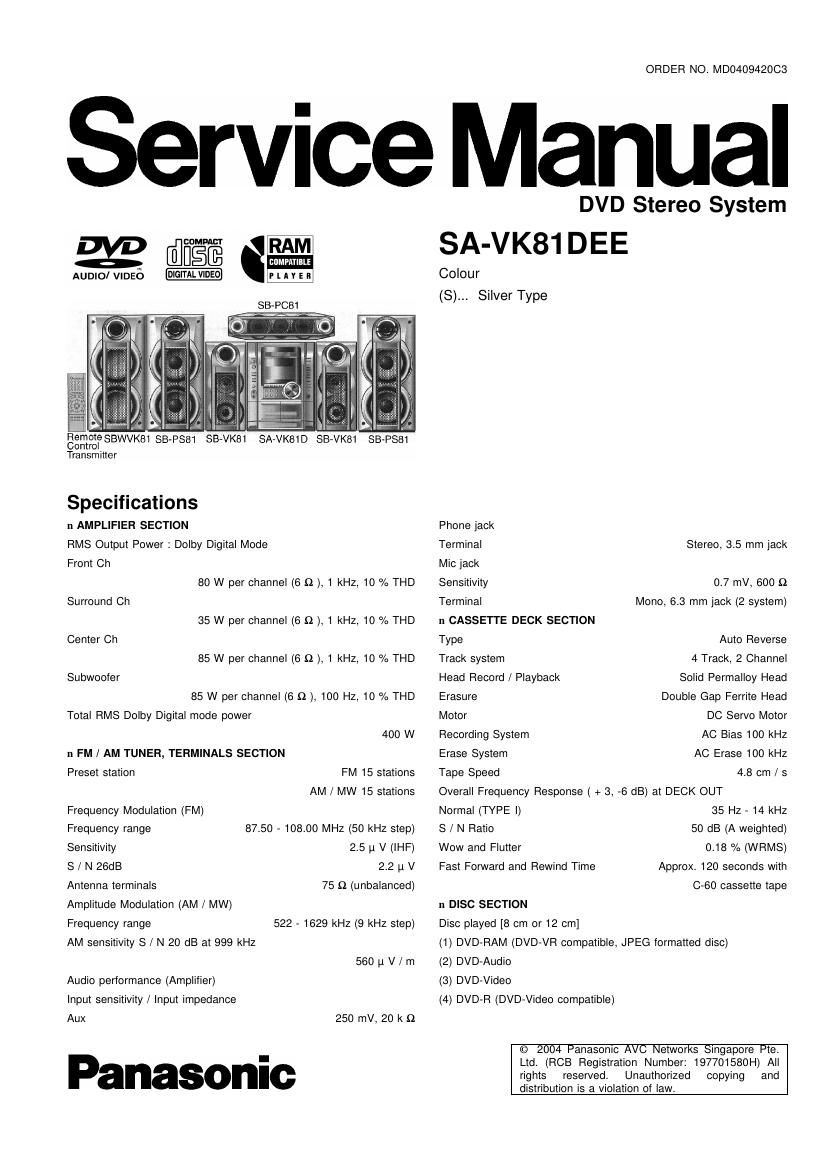

SA-VKB1 DEE

(5) CD-Audio (CD-DA)
(6) Video CD
(7) SVCD (Conforming to IE062107)

(8) CD-R / CD-RW (CD-DA, Video CD, SVCD, MP3, WMA, JPEG
formatted disc)

(9) MP3 / WMA '
~ Compatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 192 kbps
(to) JPEG
~ Exif Ver 2.1 JPEG Baseline files
~ Picture resolution: between 320x240 and 6144x4096 pixels
(Sub sampling is 4:22 or 42:0)
(11) HighMAT Level 2 (Audio and Image)

- The total combined maximum number of recognizable audio and
picture contents and groups: 4000 audio and picture contents
and 400 groups.

Pick up
Wavelength (DVD / CD)
Audio ouptut (Disc)

662 nm / 785 nm
Number of channels 5.1 ch (FL, FR, C, SL, SR, SW)
Audio performance (measurement at: Line out terminal)

Frequency response
CD-Audio

n VIDEO SECTION
Video system

4Hz-20kHz(+1,-2dB)

Signal system PAL625 / 50, PAL525 / 60, NTSC
Composite video output
Output level 1 Vp-p (75 Q )
Terminal Pin jack (1 system)
S VIDEO output
Y output level 1 Vp-p (75 Q )

0.3 Vp-p (75 o ) (PAL)
0.286 Vp-p (75 o ) (NTSC)

8 terminal (1 system)

C output level

Terminal

Component video output (480P /480|)
Y output level 1 Vp-p (75 Q )
0.7 Vp-p (75 o)

0.7 Vp-p (75 o)

P 3 output level
P F. output level
Terminal
Pin jack (Y: green, P B : blue, P R : red) (1 system)
n GENERAL
Power supply
AC 230-240V, SOHZ

Power consumption 275 W
Power consumption in standby mode:

1 W
Dimensions (WxHxD) 250 x 330 x 372 mm
Mass 9.6 kg

Operating temperature range + 5 ° C to + 35 ° C

5 % to 90 A: RH (no
condensation)

Operating humidity range

n SYSTEM
SC-VK81D(EE) Music Center: SF-VK81D (EE)
Front Speaker: SB-VK81 (GC)

Center Speaker: SB-PCB1 (GC) x
1

Surround Speaker: SB-PSB1 (GC)
x 2

Subwoofer: SB-WVKB1 (GC) x 1
SF-VK81D EE-S consists of SA-VK81 D EE-S & SB-PT81GC-S
SB-PT81 GC-S consists of SB-P881 (GO) x 2 & SB-PCB1 (GC) x 1
SB-VK81 D GC-S consists of SB-VK81 (GC-S) x 2 & SB-WVK81 (GC-
S) x 1
Notes:

1.8pecifications are subject to change without notice. Mass and
dimensions are approximate.

2.Total harmonic distortion is measured by the digital spectrum
analyzer.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

Page
1 Before Repair and Adjustment ----------------------------------------------- 3
2 Protection Circuitry ----------------------------------------------------------------- 4

3 Safety Precautions -----
3.1. General Guidelines

4 Prevention ot Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices --------------------------------- 5
5 Handling the Lead-tree Solder ------------------------------------------------ 5
5.1. About lead free solder (PbF) --------------------------
6 Cautions to be taken when handling Optical Pickup

6.1. Handling Optical Pickup ---------------------------------

Page
6.2. Replacing Precautions for Optical Pickup Unit ----------------- 6
6.3. Grounding for Preventing Electrostatic Destruction ---------- 6

7 Precaution of Laser Diode

8 Accessories --

9 Operation Procedures
10 Disc information ------------------------------------------------------------------- 11
11 About HighMAT --------------------------------------------------------------------- 13

11.1. What is HighMAT? --
11.2. Why use HighMAT?
11.3. The advantages of using HighMAT
