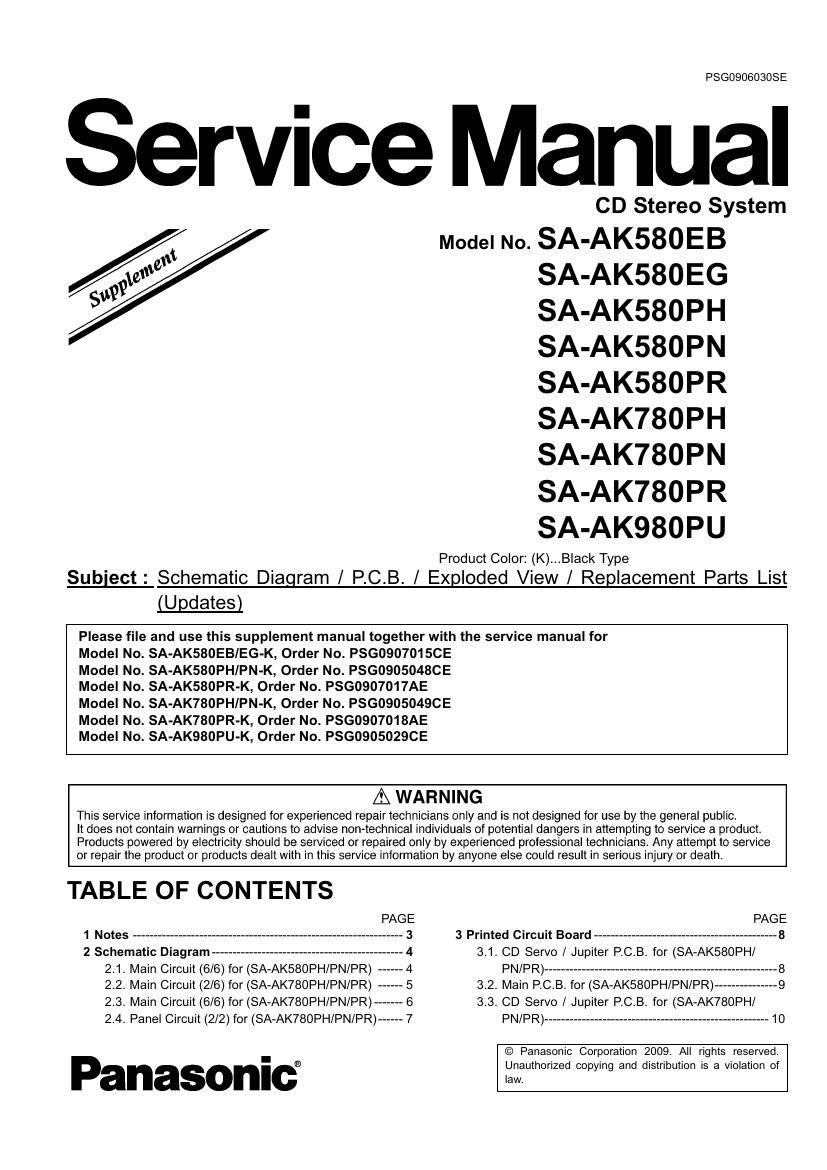

Page 1
PSG090603OSE
Service Manual
CD Stereo System
Model No. SA-AK580EB
SA-AK580EG
SA-AK580PH
SA-AK580PN
SA-AK580PR
SA-AK780PH
SA-AK780PN
SA-AK780PR
SA-AK980PU
Product Color: (K)...Black Type
Subiect: Schematic Diaqram / P.C.B. / Exploded View / Replacement Parts List
(Updates)
Please file and use this supplement manual together with the service manual for
Model No. SA-AKSBOEBIEG-K, Order No. PSGO90701SCE
Model No. SA-AK580PHIPN-K, Order No. PSGOQO5048CE
Model No. SA-AK580PR-K, Order No. PSGO§O7017AE
Model No. SA-AK780PHIPN-K, Order No. PSGOQO5049CE
Model No. SA-AK780PR-K, Order No. PSGO§O7018AE
Model No. SA-AK980PU-K, Order No. PSGOSOSOZBCE
x
gvfiw
A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products deatt with in this service information by anyone else could result in serious injury or death.
TABLE OF CONTENTS
PAGE PAGE
1 Notes 3 3 Printed Circuit Board -------------------------------------------- 8
2 Schematic Diagram ---------------------------------------------- 4 3.1. CD Servo / Jupiter P.C.B. for (SA-AKSSOPH/
2.1. Main Circuit (6/6) for (SA-AK580PH/PN/PR)
2.2. Main Circuit (2/6) for (SA-AK780PH/PN/PR) 3.2. Main P.C.B. for (SA-AK580PH/PN/PR)--
2.3. Main Circuit (6/6) for (SA-AK780PH/PN/PR) 3.3. CD Servo / Jupiter PCB. for (SA-AK780PH/
2.4. Panel Circuit (2/2) for (SA-AK780PH/PN/PR) ------ 7 PN/PR)-
PN/PR)-
© Panasonic Corporation 2009. All rights reserved.
Panasonicfi) Unauthorized copying and distribution is a violation of
law.
Page 2
3.4. Main P.C.B. for (SA-AK780PH/PN/PR)--
4 Exploded View -
4.1. Cabinet Parts Location for (SA-AK58OPH/PN-
K) 12
4.2. Cabinet Parts Location for (SA-AK780PH/PN-
K) 13
4.3. Cabinet Parts Location for (SA-AK980PU-K) ----- 14
5 Replacement Parts List -----mm.-................... ...15
5.1. Mechanical Replacement Parts List
5.2. Electrical Replacement Parts List---
