Page 1

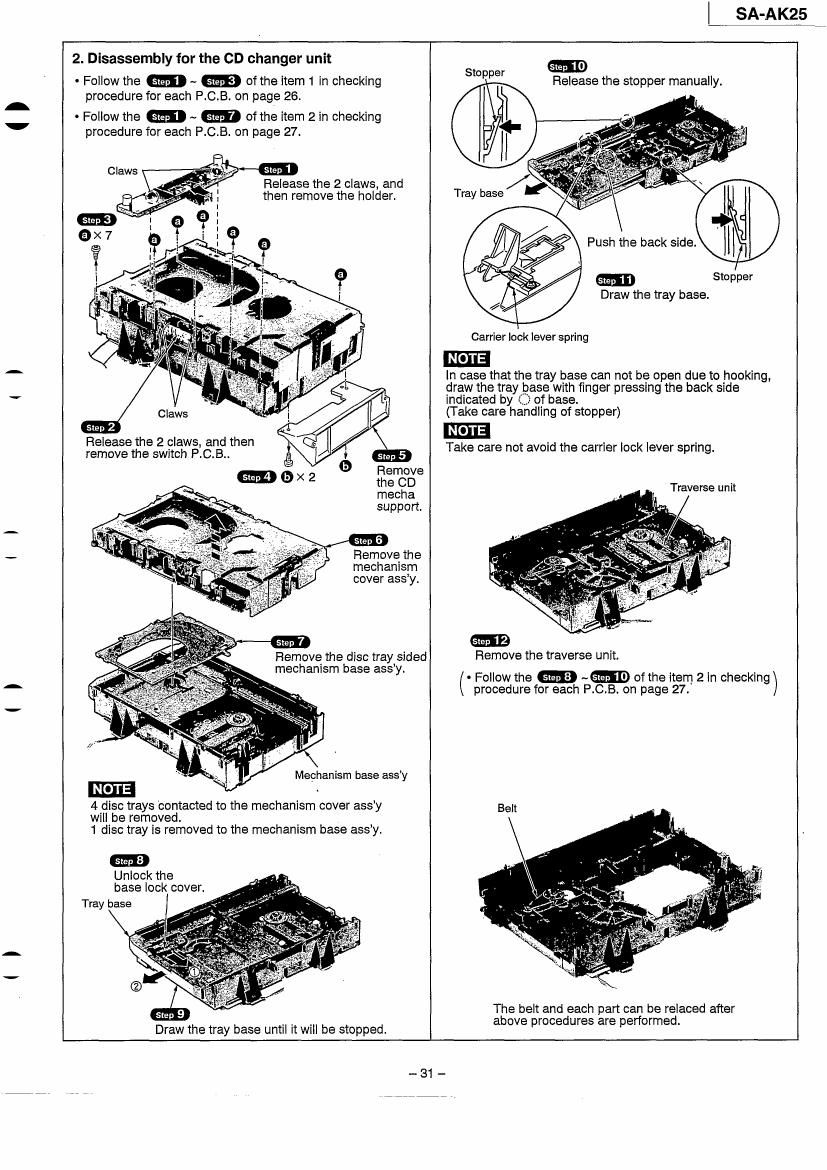

2. Disassembly for the CD changer unit
- Follow the ~ of the item 1 in checking
procedure for each P.C.B. on page 26.
- Follow the M) ~ of the item 2 in checking
procedure for each P.C.B. on page 27.
Release the 2 claws, and
then remove the holder.
Release the 2 claws, and then
remove the switch P.C.B..
Remove
the CD
mecha
support.
Remove the
mechanism
cover assy.
Remove the disc tray sided
mechanism base assy.
Mechanism base assy
4 disc trays contacted to the mechanism cover assy
will be removed.
1 disc tray is removed to the mechanism base assy.
Unlock the
base lock cover.
Tray base
Release the stopper manually.
Stopper
Stopper
Draw the tray base.
Carrier lock lever spring
In case that the tray base can not be open due to hooking,
draw the tray base with finger pressing the back side
indicated by f base
(Take care handling of stopper)
NOTE
Take care not avoid the carrier lock lever spring.
Traverse unit
Remove the traverse unit.
- Follow the -w of the item 2 in checking
procedure for each P.C.B. on page 27.
The belt and each part can be relaced after
above procedures are performed.
SA-AK275 fl
Page 2
sit-AK25
3. Reassembly for the CD changer unit
End of carrier
Slide the carrier in the
direction of arrow (d).
Carrier lock lever
(Tray base side)
Carrier
Pull the drive rack in the
direction of arrow (-v)
fully.
Drive rack
Insert the tray base to the mechanism base ass'y
with keeping the procedures m. and @.
ass'y
insert the drive rack until
the drive rack interferes
with the drive gear.
(Posrtlon @)
Drive rack
Drive gear
Tray base
When the gear begins to rotate, rotate the pulle gear
Rotate the pulle gear clockwise
gently by hand 5 or 6 times).
gear wi i fall free.
Mechanism base
G roove
with fin er pressure (position ®) because the rive rack
m3 Allow the tray base be open manually.
(Draw the Inserted tray base forward.)
Tray base
Locate the projection at the marking b as shown left.
Marking p "
Stopper
3
NOTE pper
in case that the projection wlll
not locate at the marking b .
draw the tray base, and then try
the procedures @ ~ @
again.
Tray base
Align the boss of traverse unit with the groove of
mechanism base asey.
. Traverse unit
Mechanism
base ass'y
While lilting the claw
upward, press the lock
lever (L) with forcing the
lock lever (8).
Lock lever (S)
Lock lever (L)
_32_
