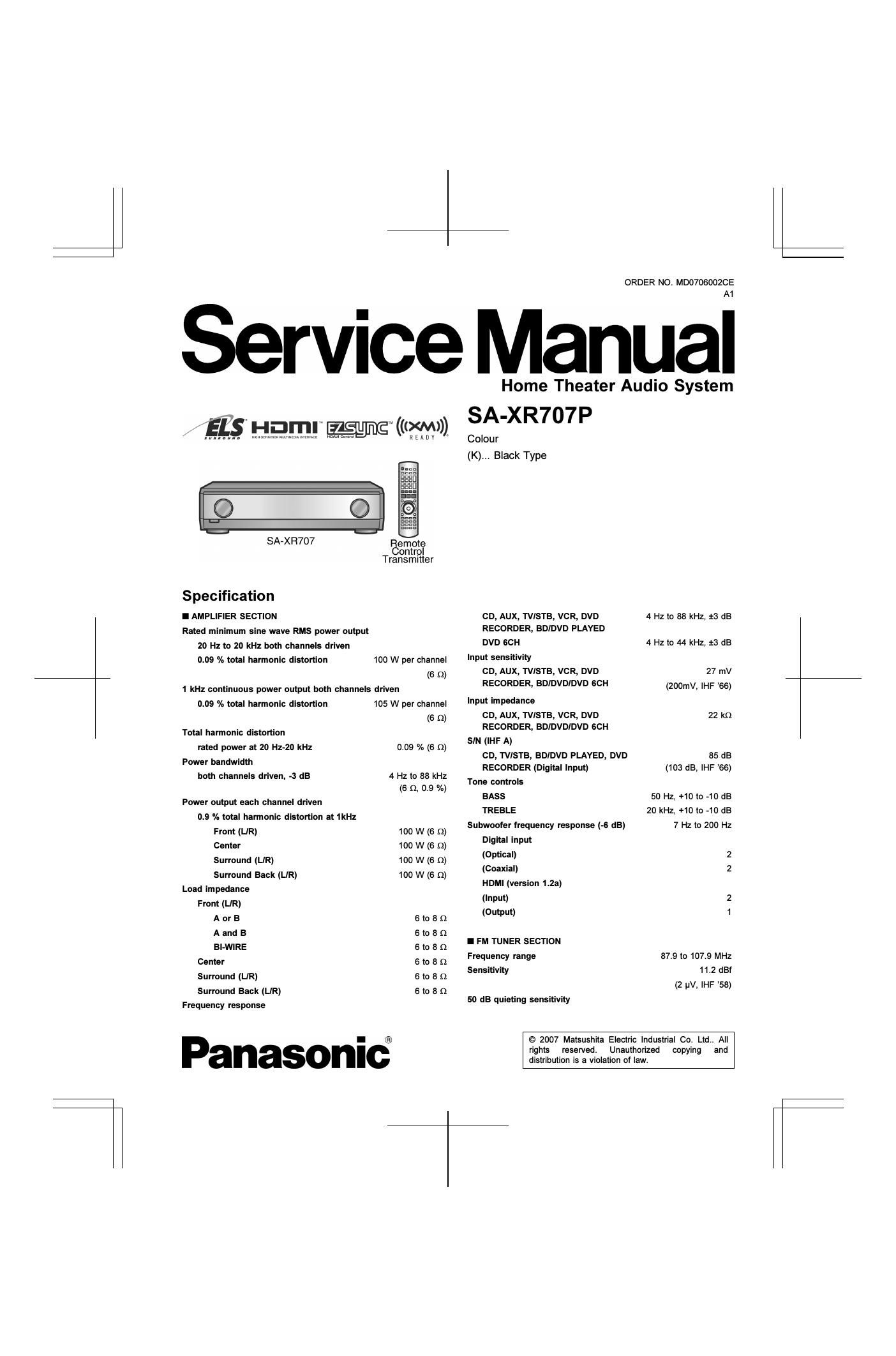

Panasonic sa xr 707 p service manual

Page 2

MONO

STEREO

Total harmonic distortion

18.3 dBf
(4.5 V, IHF 58)

38.3 dBf
(45 av, IHF 58)

MONO 0.2%
STEREO 0.3%
SIN
MONO 73 dB
STEREO 67 dB
Frequency response 20 Hz to 15 kHz,
+1 dB, -2dB
Alternate channel selectivity 65 dB
Capture ratio 1.5 dB
Image rejection at 98 MHz 40 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB

Antenna terminal 75 Q (unbalanced)

I AM TUNER SECTION
530 to 1710 kHZ

Maximum input voltage 1.5 Vp»p
Input/output impedance 75 Q
S-Video
Input BD/DVD PLAYED,
DVD RECORDER,
TV/STB, AUX
Output TV MONITOR
Component Video
Input DVD RECCORDER,
TV/STB
Output TV MONITOR
I GENERAL
Power supply AC 120 V, 60 Hz
Power consumption 140 W
Dimensions (W x H x D) 430 mm x 107.5 mm x
390 mm
(16-15/16" x 4-7/32" x 1541/32")
Mass (Weight) Approx.

5.3 kg (11.7 lb.)

I DIN POWER

1 kHz, T.H. D. 1% 2 x 100 w (6 o)

Frequency range Power consumption in standby mode: 0.7 W
Sensitivity 20 UV, 330 I-V/m Power consumption in HDMI off mode: 0.3 W
Selectivity 55 dB
IF rejection at 1000 kHz 50 dB Notes:
1. Specifications are subject to change without notice.

I VIDEO SECTION 2. Total harmonic distortion is measured by the digital spectrum
Output voltage at 1 V input (unbalanced) 110.1 Vp-p analyzer.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced protessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

Page

1 Safety Precautions

2 Prevention of Electro Sta charge (ESD) to

Electrostatically Sensitive (ES) Devices ................................. 5
3 Service caution based on legal restrictions ........................... 5
4 Accessories ---------------------------------------------------------------------------- 7
5 Operating Instructions Procedures ........................................ 3
6 Self Diagnosis Display Function ........................................... 21
7 HDMI Checking Method ........................................................ 24

8 Assembling and Disassembling ............

9 Voltage Measurement & Waveform Chart

10 Wiring Connection Diagram

11 Block Diagram ....................

12 Notes 0f Schematic Diagram ................................................ 75
13 Schematic Diagram ............................................................... 77
14 Printed Circuit Board Diagrams ................................. 109
15 Illustration of ICs, Transistors and Diodes ........................ 119
16 Terminal Function of IC's ................................................... 120
17 Exploded Views .................................................................. 123
18 Replacement Parts List ....................................................... 127
