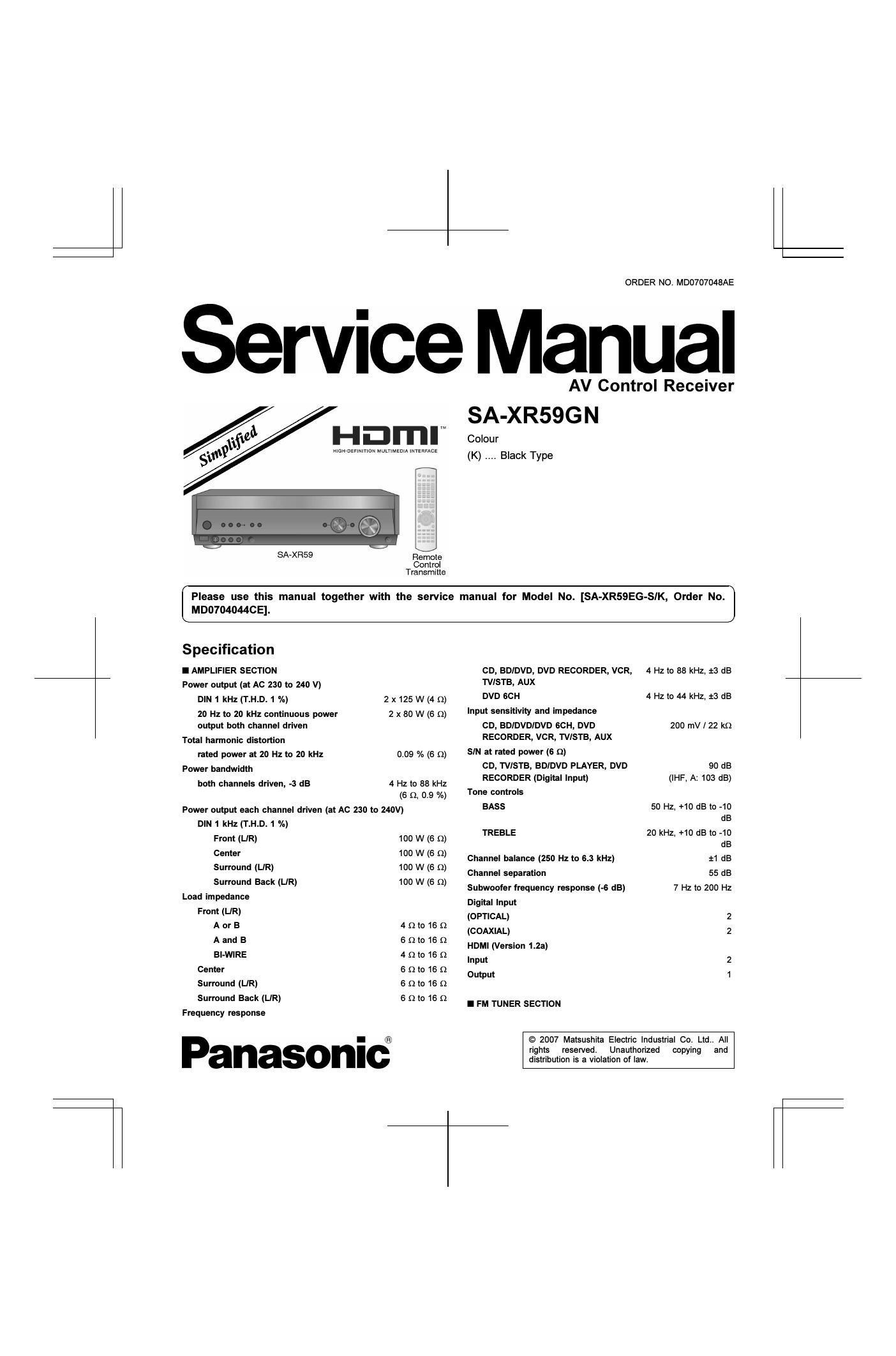

Panasonic sa xr 59 gn service manual

Page 1

Frequency range 87.50 MHz to 108.00 MHz Sensitivity S/N 30 dB 1.5 µV / 75Ω S/N 26 dB 1.3 µV / 75Ω S/N 20 dB 1.2 µV / 75Ω IHF usable sensitivity (IHF ,58) 1.5 µV / 75Ω IHF 46 dB stereo quieting sensitivity 22 µV / 75Ω Total harmonic distortion MONO 0.2% STEREO 0.3% S/N MONO 60 dB STEREO 58 dB Frequency response 20 Hz to 15 kHz, +1 dB, -2 dB Alternate channel selectivity ±400 kHz, 65 dB Capture ratio 1.5 dB Image rejection at 98 MHz 40 dB IF rejection at 98 MHz 70 dB Spurious respone rejection at 98 MHz 70 dB AM suppression 50 dB Stereo separation 40 dB Carrier leak 19 kHz, -30 dB 38 kHz, -50 dB Channel balance (250 Hz to 6.3 kHz) ±1.5 dB Limiting point 1.2 µV Bandwidth IF amplifier 180 kHz FM demodulator 1000 kHz Antenna terminal 75Ω(unbalanced) AM TUNER SECTION Frequency range 522 kHz to 1611 kHz (9 kHz steps) 1 Notes 3 2 Accessories 4 530 kHz to 1620 kHz (10 kHz steps) Sensitivity 20 µV, 330 µV/m Selectivity (at 999 kHz) 55 dB IF rejection (at 999 kHz) 50 dB VIDEO SECTION Output voltage at 1 V input (unbalanced) 1 ± 0.1 Vp-p Maximum input voltage 1.5 Vp-p Input/outp ut impedance 75Ω(unbalanced) S-Video Input DVD, DVD Recorder, TV/STB Output TV MONITOR Component Video Input DVD Recorder, TV/STB Output TV MONITOR GENERAL Power supply AC 230 to 240 V, 50 Hz Power consumption 140 W Dimensions (W × H × D) 430 mm × 107.5 mm × 390 mm Mass 4.7 kg Power consumption in standby mode: 0.9 W Power consumption in HDMI off mode: 0.35 W Notes: 1. Specifications are subject to change without notice. 2. Mass and dimensions are approximate. 3. Total harmonic distortion is measured by the digital spectrum analyzer. 3 Exploded Views 5 4 Replacement Parts List 7 CONTENTS Page Page 2 SA-XR59 GN
