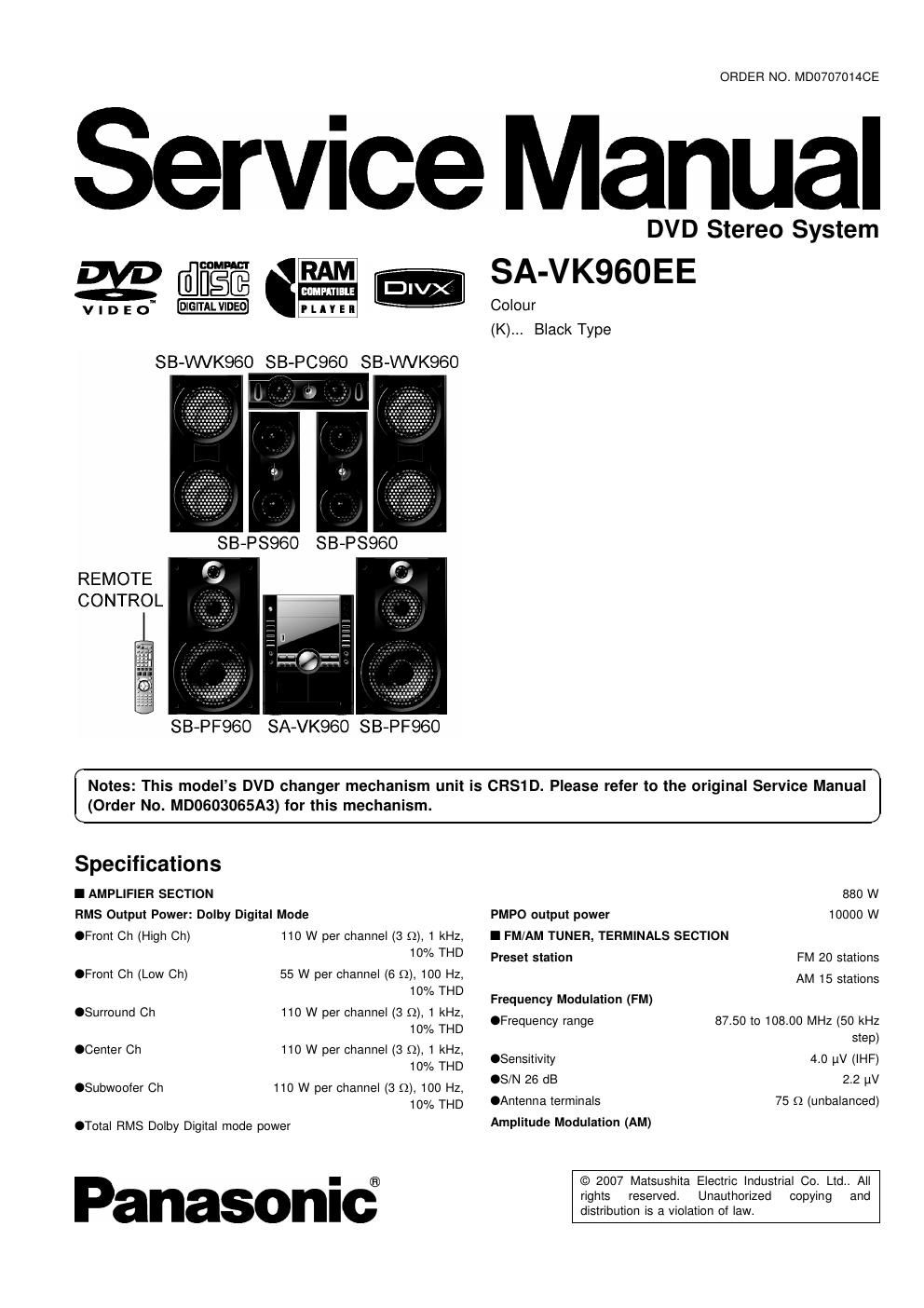

Panasonic sa vk 960 ee service manual

Page 2

SA-VKQBOEE

.Frequency range
AM Sensitivity S/N 20 dB at 999 kHz

522 to 1629 kHz (9 kHz step)

1000 uV/m

Music Port input jack
.Sensitivity 100 mV, 4.7 k!)
.Terminal Stereo, 3.5 mm jack
Phone iack
.Terminal Stereo, 3.5 mm jack
Mic iack
.Sensitivity 0.7 mV, 600 9
.Terminal Mono, 6.3 mm jack (2 system)
AUX
.Sensitivity 2 V, 8 k9
.Terminal Stereo, FtCA jack
USB Port
.USB standard USB 2.0 full speed
.Media file format support MP3 (.mp3)

WMA (*.wma)

JPEG (1'ng '-J'Deg)
MPEG4 (.asf)

FAT12, FAT16, FAT32
500 mA (Max)

.USB device file system
.USB port power
I CASSETTE DECK SECTION

OType 1 way, Auto Reverse
.Track system 4-Track, 2 Channel
Heads

.Record/Playback Solid permalloy head
OErasure Double gap ferrite head
Motor DC servo motor

AC bias 100 kHz
AC erase 100 kHz
4.8 cm/s

Recording system
Erasing system
Tape speed
Overall frequency response (+3, -6 dB) at DECK OUT
35 Hz to 14 kHz
50 dB (A weighted)
0.18% (WRMS)

.Normal

SIN ratio

Wow and flutter

Fast forward and rewind time
Approx. 120 seconds with C-60 cassette tape

I VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC

Composite video output

.Output level 1 Vp-p (75 0)

.Terminal Pin jack (1 system)

Component video output

[NTSC: 430p/430i, PAL: 576p/576i]

.Y output level 1 Vp-p (75 Q)
OPE output level 0.7 Vp-p (75 (2)
OPR output level 0.7 Vp-p (75 (2)

.Terminal
Pin jack (Y: green, PB: blue, PR: red) (1 system)
I DISC SECTION
Disc played [s cm or 12 cm]
(1) DVD (DVD-Video, Divx"H7 )

(2) DVD-RAM (DVD-VB, JPEG7, MP37, MPEG4"5 7, DiVX
#7)
(3) DVD-Ft (DVD-Video, DVD-VR, .JPEG 1 MP32 7, MPEG45~7,
DiVXH')

(4) DVD-Ft DL (DVD-Video, DVD-VB)

(5) DVD-FtW (DVD-Video, DVD-VR, JPEGM, MP3"2 7, MPEG45'
If?) DIVX 6, #7)

(6) +R/+FtW (Video)

(7) +R DL (Video)

(8) CD,CD-R/RW [CD-DA, Video CD, svco, MP327, WMAH,
JPEGHW, MPEG4 5-7, Divx~"7, HighMAT Level 2 (Audio and
Image)]

H Conforming to IECG2107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

"3 Windows Media Audio Ver. 9.0 L3

Not compatible with Multiple Bit Rate (MBFt)

Exit Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels

(Sub sampling is 420:0, 42:0, 4:22 or 4:4:4). Extremely long and
narrow pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders.

Conforming to SD VIDEO specifications (ASF standard) / MPEG4
(Simple Profile) video system/ (3.726 audio system.

5 Plays all versions of DIVX® video (including DivX®6) with standard
playback of DIVX® media files. Certified to the DivX Stereo System
Profile.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.

Pick up

Wavelength

.CD 785 nm
.DVD 662 nm
Laser power

.CD CLASS 1M
.DVD CLASS 1

Audio output (Disc)
.Number of channels (FL, FFt, C, SL, SR, SW) 5.1 ch
Audio performance (measurement at: Ftec out terminal)
OFrequency response (CD-Audio) 4 Hz to 20 kHz
I GENERAL
Power supply AC 230 V, 50 Hz
Power consumption 360 W
Power consumption in standby mode
0.9 W (approximate)
250 x 330 x 334.6 mm
5.5 kg
+5°C to +35°C

5% to 90% RH (no condensation)

Dimensions (W x H x D)
Mass
Operating temperature range
Operating humidity range
Notes:
1.Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

I SYSTEM
