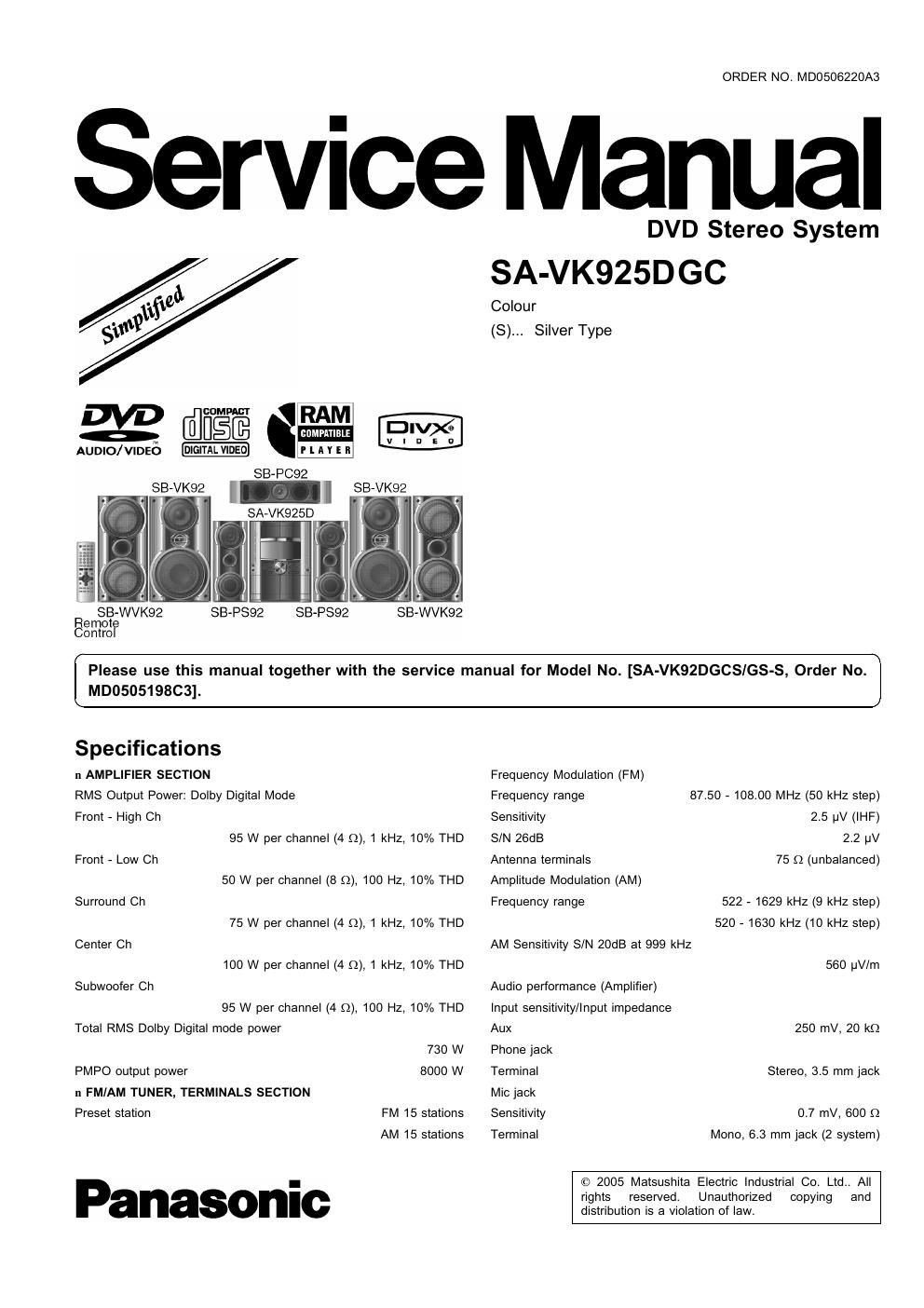

ORDER NO. M D0506220A3
Service Manual
DVD Stereo System
SA-VK925DGC
Colour
(8)... Silver Type
22 lfliiéfi
AUDIO/VIBE?)
3343092
I- II
VSB-WVKQZ
emol
ontro
Please use this manual together with the service manual for Model No. [SA-VK9ZDGCSIGS-S, Order No.
MD050519803].
Specifications
n AMPLIFIER SECTION Frequency Modulation (FM)
RMS Output Power: Dolby Digital Mode Frequency range 87.50 - 108.00 MHz (50 kHz step)
Front - High Ch Sensitivity 2.5 uV (IHF)
95 W per channel (4 Q), 1 kHz, 10% THD S/N 26dB 2.2 V
Front - Low Ch Antenna terminals 75 Q (unbalanced)
50 W per channel (8 Q), 100 Hz, 10% THD Amplitude Modulation (AM)
Surround Ch Frequency range 522 - 1629 kHz (9 kHz step)
75 W per channel (4 Q), 1 kHz, 10% THD 520 - 1630 kHz (10 kHz step)
Center Ch AM Sensitivity SIN 20dB at 999 kHz
100 W per channel (4 Q), 1 kHz, 10% THD 560 pV/m
Subwoofer Ch Audio performance (Amplifier)
95 W per channel (4 Q), 100 Hz, 10% THD Input sensitivity/Input impedance
Total RMS Dolby Digital mode power Aux 250 mV, 20 kg
730 W Phone jack
PMPO output power 8000 W Terminal Stereo, 3.5 mm jack
n FMIAM TUNER, TERMINALS SECTION Mic jack
Preset station FM 15 stations Sensitivity 0.7 mV, 600 (2
AM 15 stations Terminal Mono, 6.3 mm jack (2 system)
© 2005 Matsushita Electric Industrial Co. Ltd.. All
I
rights reserved. Unauthorized copying and
distribution is a violation of law.
