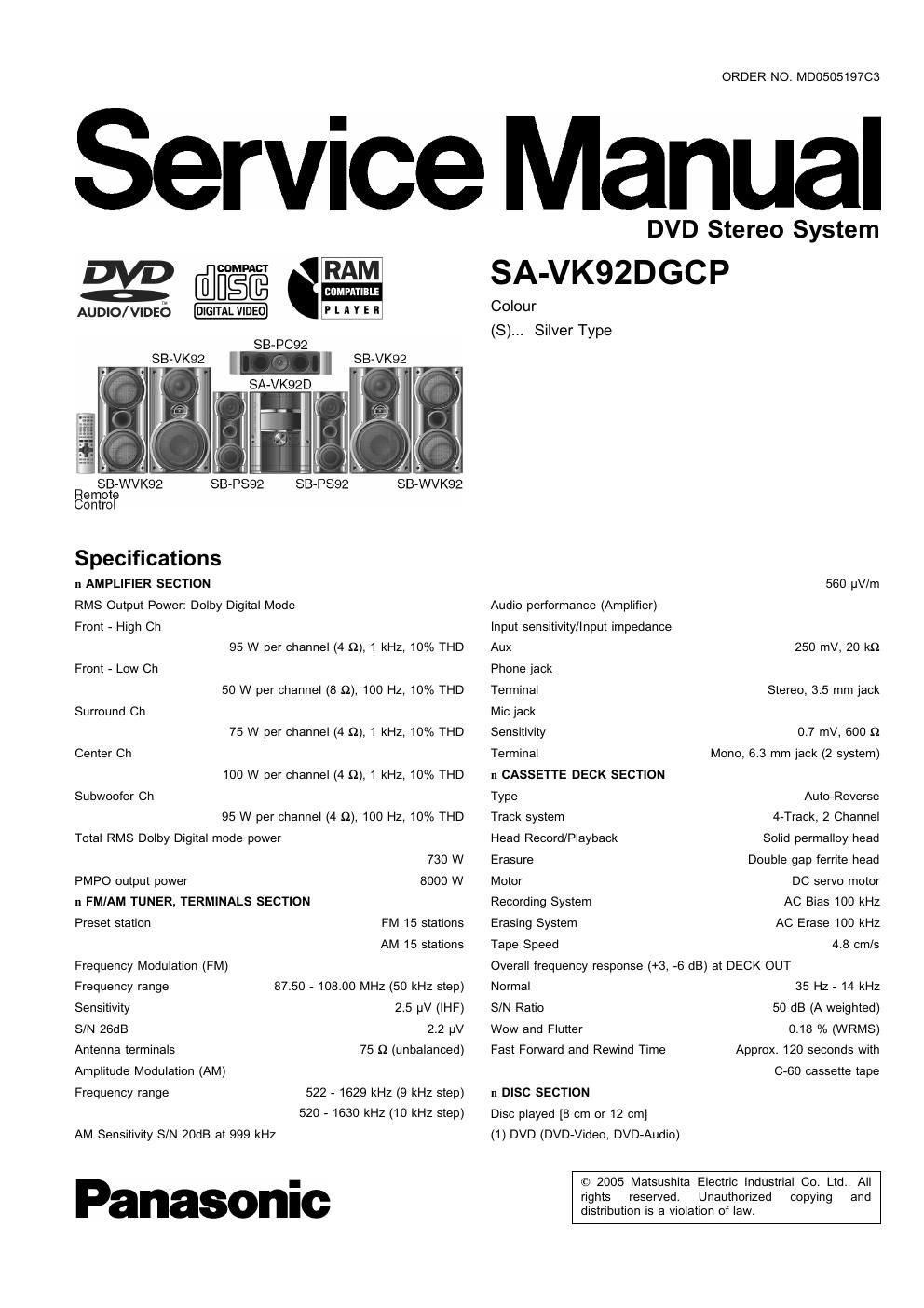

Panasonic sa vk 92 dgcp service manual

Page 2

SA-VK92 D60?

(2) DVD-RAM (DVD-VR, JPEGVf)

(3) DVD-R (DVD-Video)

(4) DVD»RW (DVD-Video)

+ R/RW (Video)

5) CD,CD-R/RW [CD-DA. Video CD, SVCD' ', MP3' 2,, WMA. °,' °,
JPEGt, 5, HighMAT Level 2 (Audio and Image)]

Conforming to |EC62107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver.9.0. Class 2A

Not compatible with Multiple Bit Rate (MBR)

4 Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 4:2:2 or 4:2:0)

° The total combined maximum number of recognizable audio and

picture contents and groups: 4000 audio and picture contents and
400 groups.

Pick up

Wavelength

CD 785 nm
DVD 662 nm

Audio output (Disc)
Number of channels 5.1 ch (FL,FR.C,SL,SR,SW)
Audio performance (measurement at: Line out terminal)

Frequency response
CD-Audio

n VIDEO SECTION

Video system

4 HZ to 20 kHz (+1 dB.-2 dB)

Signal system NTSC
Composite video output

Output level 1 Vp-p (75 0)
Terminal Pin jack (1 system)

S-video output
Y output level 1 Vp-p (75 9)
0.3 Vp-p (75 Q) (PAL)
0.286 Vp-p (75 9) (NTSC)
)

S terminal (1 system

C output level

Terminal

Component video output (480p/480i)
Y output level 1 Vp-p (75 Q)
0.7 Vp-p (75 o)

0.7 Vp-p (75 :2)

PE output level

PR output level

Terminal

Pin jack (Y: green, PB: blue, PR: red) (1 system)
n GENERAL

Power supply

AC 110 to 127V/220 to 240 V, 50/60HZ
Power consumption 450 W

Power consumption in standby mode:

0.9 W (approximate)

250 x 330 x 348 mm

9.4 kg

+5°C to +35°C

5% to 90% RH (no condensation)

Dimensions (W x H x D)
Mass

Operating temperature range
Operating humidity range

It SYSTEM

SC-VK92D (GCP) Music System: SF-VK92D (ch)

Speakers: SB-VK92D (GC)

SF-VKQZD GCP
SA-VK92D GCP-S

Music System
Music Center

Satellite Speakers SB-PT92 GC-S
Speaker System SB-PT92 GC-S
Surround Speakers SB-PS92 GC-S
Center Speaker SB-PC92 GC-S

Speaker System SB-VK92D GC-S
Front Speakers SB-VK92 GC-S
Subwoofer SB-WVK92 GC -3

Notes:
1.Specifications are subject to change without notice. Mass and
dimensions are approximate.
2.Total harmonic distortion is measured by the digital spectrum
analyzer.

MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.

Windows Media. and the Windows logo are
trademarks, or registered trademarks of

Microsoft Corporation in the United States ..
and/or other countries. .
WMA is a compression format developed Swim
by Microsoft Corporation. It achieves the my?

same sound quality as MP3 with a file size
that is smaller than that of MP3.

HighMATTM and the HighMAT logo are
either trademarks or registered
trademarks of Microsoft Corporation in
the United States and/or other countries.

[3H
T

AflfllndMABE

-w . HDCDQ, High Definition Compatible Digital® and

Pacitic MicrosonicsM are either registered
trademarks or trademarks of Pacific Microsonics. Inc. in the
United States and/or other countries.

HDCD system manufactured under license from Pacific
Microsonics. Inc. This product is covered by one or more of the
following: In the USA: 5.479.168, 5.638.074. 5,640,161.
5.808.574. 5.838.274. 5,854,600. 5,864,311. 5.872.531. and in
Australia: 669114, with other patents pending.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
