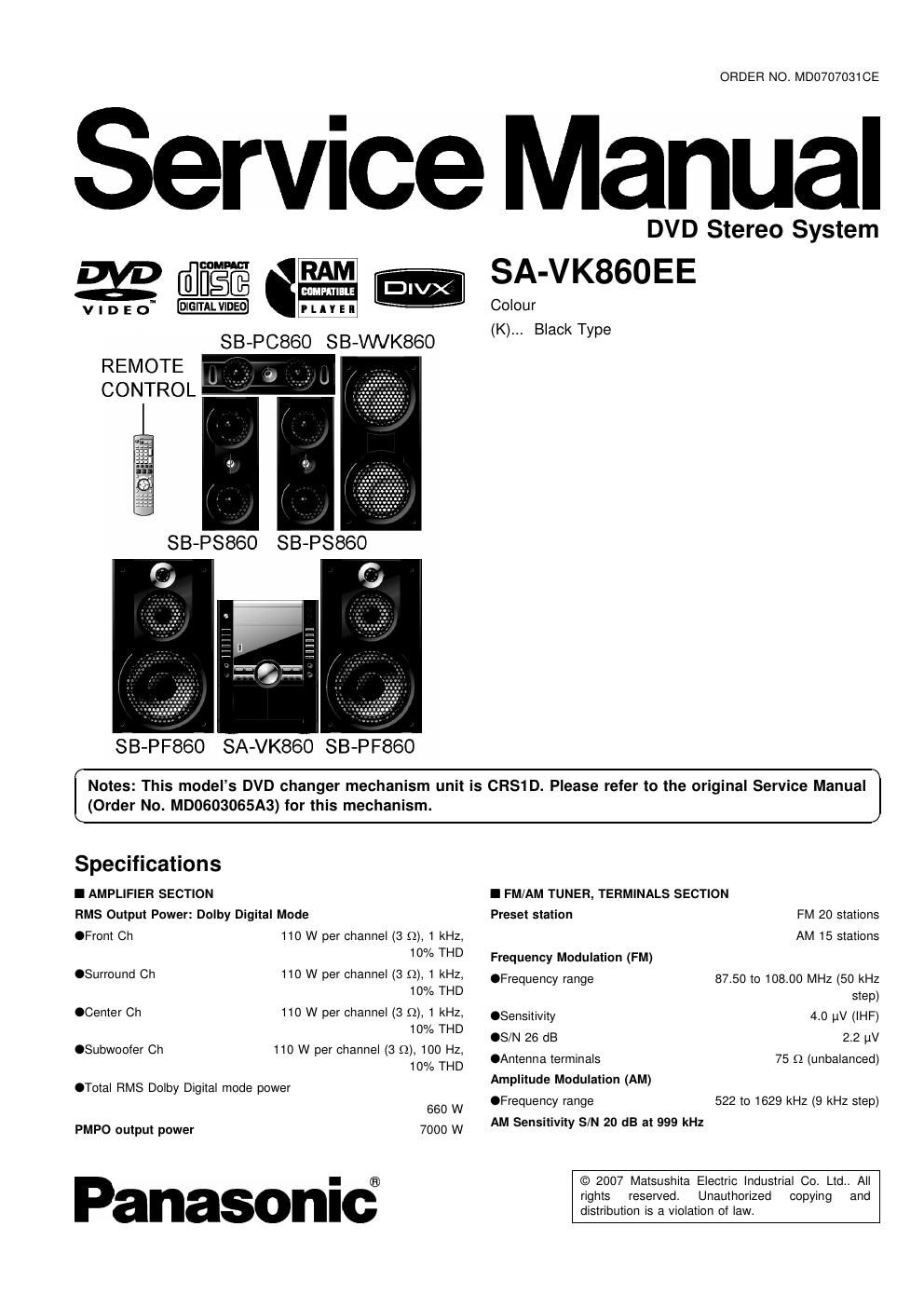

Page 1

ORDER NO. MDO7070310E

Service Manual

@fiéfi

v I D E o" DIGITALVIDEO
SB-PCSGO SB-V\NK860
REMOTE
CONTROL

8 B-PF860 SA-VK86O SB-PF860

DVD Stereo System
SA-VK860EE

Colour
(K)... Black Type

Notes: This models DVD changer mechanism unit is CRS1 D. Please refer to the original Service Manual

(Order No. MD0603065A3) for this mechanism.

Specifications

I AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode

OFront Ch 110 W per channel (3 Q), 1 kHz,
10% THD
.Surround Ch 110 W per channel (3 Q), 1 kHz,
10% THD
OCenter Ch 110 W per channel (3 Q), 1 kHz,
10% THD
OSubwoofer Ch 110 W per channel (3 Q), 100 Hz,
10% THD

OTotal RMS Dolby Digital mode power
660 W
PMPO output power 7000 W

Panasonic®

I FM/AM TUNER, TERMINALS SECTION
Preset station FM 20 stations
AM 15 stations
Frequency Modulation (FM)

OFrequency range 87.50 to 108.00 MHz (50 kHz

step)
OSensitivity 4.0 (N (IHF)
.S/N 26 (18 2.2 (1V

.Antenna terminals

Amplitude Modulation (AM)
OFrequency range

AM Sensitivity SN 20 dB at 999 kHz

75 Q (unbalanced)

522 to 1629 kHz (9 kHz step)

© 2007 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-VKBBOEE

Music Port input iack
.Sensitivity
.Terminal

Phone iack
.Terminal

Mic iack

.Sensitivity
.Terminal

AUX

.Sensitivity
.Terminal

USB Port

.USB standard
.Media file format support

.USB device file system
.USB port power

I CASSETTE DECK SECTION
.Type

.Track system

Heads
.Record/Playback
.Erasure

Motor

Recording system
Erasing system

Tape speed

1000 pV/m

100 mV, 4.7 k!)
Stereo, 3.5 mm jack

Stereo, 3.5 mm jack

0.7 mV, 600 Q
Mono, 6.3 mm jack (2 system)

2 V, 8 k9
Stereo, RCA jack

USB 2.0 full speed
MP3 (.mp3)

WMA (.wma)

JPEG (ipg. -lpeg)
MPEG4 (.asf)

FAT12, FAT16, FAT32
500 mA (Max)

1 way, Auto Reverse
4-Track, 2 Channel

Solid permalloy head
Double gap ferrite head
DC servo motor

AC bias 100 kHz

AC erase 100 kHz

4.8 cm/s

Overall frequency response (+3, -6 dB) at DECK OUT

.Normal

S/N ratio

Wow and flutter

Fast Iorward and rewind time

35 Hz to 14 kHz
50 dB (A weighted)
0.18% (WRMS)

Approx. 120 seconds with C-60 cassette tape

I VIDEO SECTION
Video system
Composite video output
.Output level

.Terminal

Component video output

[NTSC: 480p/480i, PAL: 576p/576i]

.Y output level
OPE output level
CPR output level
.Terminal

PAL625/50, PAL525/60, NTSC

1 Vp-p (75 (2)
Pin jack (1 system)

1 Vp-p (75 o)
0.7 Vp-p (75 o)
0.7 Vp-p (75 9)

Pin jack (Y: green, PB: blue, PR: red) (1 system)

I DISC SECTION
Disc played [8 cm or 12 cm]

(1) DVD (DVD-Video, DiVX57)

(2) DVD-RAM (DVD-VFt, JPEGM, MP327, MPEG4? DivX

#7)

(3) DVD-Fl (DVD-Video, DVD-VR, JPEG 1 MP3"2 7, MPEG45'7,
DivX-)

(4) DVD-Fl DL (DVD-Video, DVD-VR)

(5) DVD-RW (DVD-Video, DVD-VR, JPEGM 7, MP3 7, MPEG4
(r7) DiVXHW)

(e) +R/+FtW (Video)

(7) +R DL (Video)

(8) CD,CD-R/RW [CD-DA, Video CD, svco, MP327, WMAW,
JPEGHW, MPEG4 5", DivX"7, HighMAT Level 2 (Audio and
Image)]

" Conforming to IECG2107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver. 9.0 L3

Not compatible with Multiple Bit Rate (MBR)

" Exil Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels

(Sub sampling is 420:0, 42:0, 4:22 or 4:4:4). Extremely long and
narrow pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD Video recorders.

Conforming to SD VIDEO specifications (ASF standard) / MPEG4
(Simple Profile) video system/ (3.726 audio system.

5 Plays all versions of DiVX® video (including DivX®6) with standard
playback of DIVX® media files. Certified to the DiVX Stereo System
Profile.

"7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.

Pick up

Wavelength

.CD 785 nm
.DVD 662 rim
Laser power

.CD CLASS 1M
.DVD CLASS 1

Audio output (Disc)
.Number of channels (FL, FR, C, SL, SR, SW) 5.1 ch
Audio performance (measurement at: Ftec out terminal)
.Frequency response (CD-Audio) 4 Hz to 20 kHz
I GENERAL

Power supply

Power consumption

AC 230 V, 50 Hz
290 W

Power consumption in standby mode
0.9 W (approximate)
Dimensions (W x H x D) 250 X 330 x 334.6 mm
Mass 5.5 kg
+5°C to +35°C
5% to 90% RH (no condensation)

Operating temperature range
Operating humidity range
Notes:
1.Specifications are subject to change without notice.
Mass and dimensions are approximate.

2.Total harmonic distortion is measured by the digital spectrum
analyzer.

I SYSTEM
