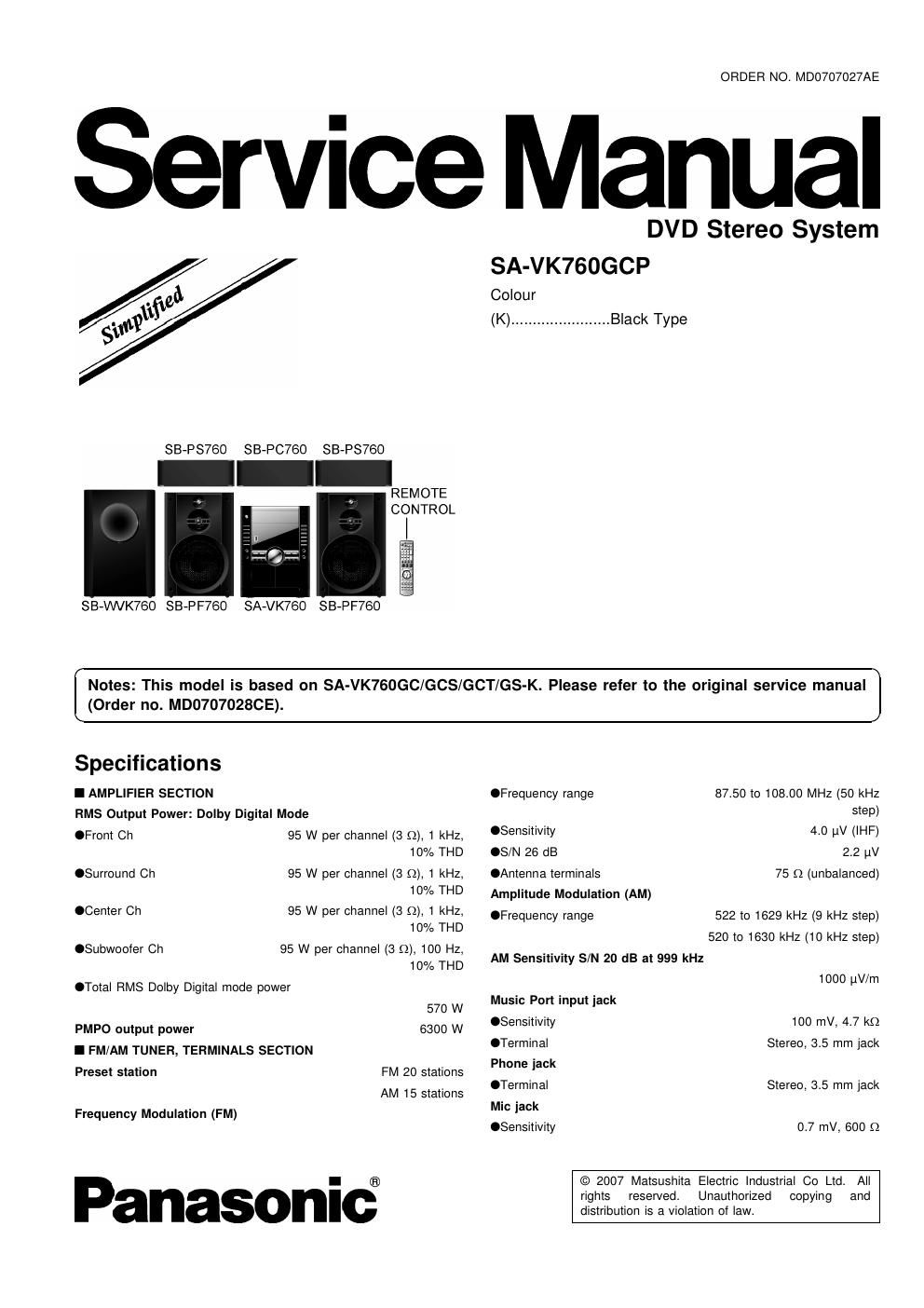

Panasonic sa vk 760 gcp service manual

Page 2

SA-VK7BOG CF

.Terminal

AUX

.Sensitivity

.Terminal

USB Port

.USB standard

.Media file format support

.USB device file system
.USB port power

I CASSETTE DECK SECTION
.Type

.Track system

Heads
.Record/Playback
.Erasure

Motor

Recording system
Erasing system

Tape speed

Mono, 6.3 mm jack (2 system)

2 V, 8 k9
Stereo, RCA jack

USB 2.0 full speed
MP3 (.mp3)

WMA (.wma)

JPEG Mpg, 11769)
MPEG4 (.asf)

FAT12, FAT16, FAT32
500 mA (Max)

1 way, Auto Reverse
4-Track, 2 Channel

Solid permalloy head
Double gap ferrite head
DC servo motor

AC bias 100 kHz

AC erase 100 kHz

4.8 cm/s

Overall frequency response (+3, -6 dB) at DECK OUT

.Normal

S/N ratio

Wow and flutter

Fast forward and rewind time

35 H2 to 14 kHz
50 dB (A weighted)
0.18% (WRMS)

Approx. 120 seconds with C-60 cassette tape

I VIDEO SECTION
Video system
Composite video output
OOutput level

.Terminal

Component video output

[NTSCz 480p/480i, PAL: 576p/576i]

.Y output level
OPE output level
CPR output level
.Terminal

NTSC

1 Vp-p (75 (2)
Pin jack (1 system)

1 Vp-p (75 o)
0.7 Vp-p (75 o)
0.7 Vp-p (75 9)

Pin jack (Y: green, PB: blue, PH: red) (1 system)

I DISC SECTION
Disc played [8 cm or 12 cm]

(1) DVD (DVD-Video, DivX57 )
(2) DVD-RAM (DVD-VFt, JPEGM, MP327, MPEG45'7, Divx
#7

)
(3) DVD-R (DVD-Video, DVD-VR, JPEGM'W MP3~"7, MPEG4 W,
DiVX"")
(4) DVD-R DL (DVD-Video, DVD-VFI)

(5) DVD-RW (DVD-Video, DVD-VR, JPEG 7, MP3~"7, MPEG4 5~
#7 DIVX 6, #7)

(e) +R/+RW (Video)

(7) +R DL (Video)

(8) CD,CD-R/RW [CD-DA, Video CD, svco , MP37, WMA"7,
JPEGHW, MPEG457, DivX6'7, HighMAT Level 2 (Audio and
Image)]

Conforming to IE062107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

a Windows Media Audio Ver. 9.0 L3

Not compatible with Multiple Bit Rate (MBR)

Exit Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels

(Sub sampling is 420:0, 4:2:0, 4:22 or 4:4:4). Extremely long and
narrow pictures may not be displayed.

5 MPEG4 data recorded with Panasonic SD multi cameras or DVD
video recorders.

Conforming to SD VIDEO specifications (ASF standard) / MPEG4
(Simple Profile) Video system/ G726 audio system.

5 Plays all versions of DiV>(® video (including DIVX®6) with standard
playback of DivX® media files. Certified to the DivX Stereo System
Profile.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.

Pick up

Wavelength

.CD 785 rim
.DVD 662 nm
Laser power

.CD CLASS 1M
.DVD CLASS 1

Audio output (Disc)
.Number of channels (FL, FR, C, SL, SR, SW) 5.1 ch
Audio performance (measurement at: Ftec out terminal)
.Frequency response (CD-Audio) 4 Hz to 20 kHz
I GENERAL
Power supply AC 110 to 127V/220 to 240 V,
50/60 Hz
Power consumption 290 W
Power consumption in standby mode
0.9 W (approximate)
Dimensions (W x H x D) 250 x 330 x 334.6 mm
Mass 5.5 kg
+5°C to +35°C

5% to 90% RH (no condensation)

Operating temperature range
Operating humidity range
Notes:
1.Specifications are subject to change without notice.
Mass and dimensions are approximate.

2.Total harmonic distortion is measured by the digital spectrum
analyzer.

I SYSTEM
