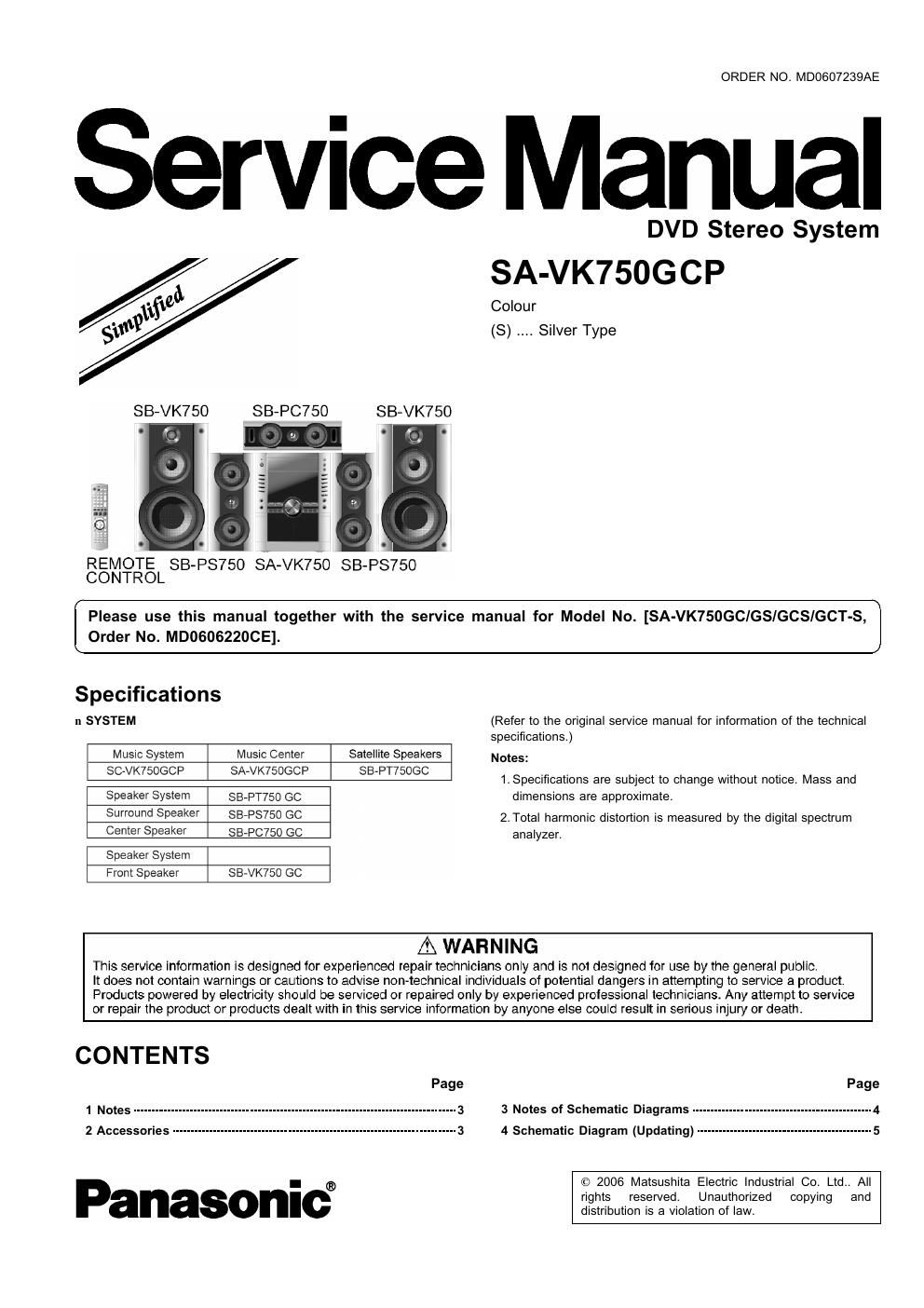

Page 1

ORDER NO. MD0607239AE

Service Manual

DVD Stereo System
SA-VK75OGCP

Colour
(S) Silver Type

SB-VK750 SB-PC750 SB-VK75O

0- lllll ..

REMOTE SB-PS750 SA-VK750 SB-PS750
CONTROL

Please use this manual together with the service manual for Model No. [SA-VK7SOGCIGSIGCSIGCT-S,
Order No. MD06062200E].

Specrflcatlons
n SYSTEM (Refer to the original service manual for information of the technical
specifications.)
Music System Music Center Satellite Speakers Notes:
SOVK750GCP SAAVK7SOGCP SB-PT750GC , , y , ,
1.8pecrfications are subject to change wrthout notice. Mass and
Speaker System SB-PT750 (30 dimensions are approximate.
Surround Speaker 55435750 G5 2.Tota| harmonic distortion is measured by the digital spectrum
Center Speaker SB-PC750 GC analyzer.
Speaker System
Front Speaker SB-VK750 GC

A WARNING

This service information is designed tor experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity shouid be serviced or repaired only by experienced prolessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else couid result in serious injury or death.

CONTENTS

1 Notes ----- 3 Notes of Schematic Diagrams

2 Accessories

4 Schematic Diagram (Updating)

© 2006 Matsushita Electric Industrial Co. Ltd.. All

I ®
rights reserved. Unauthorized copying and
distribution is a violation of law.
