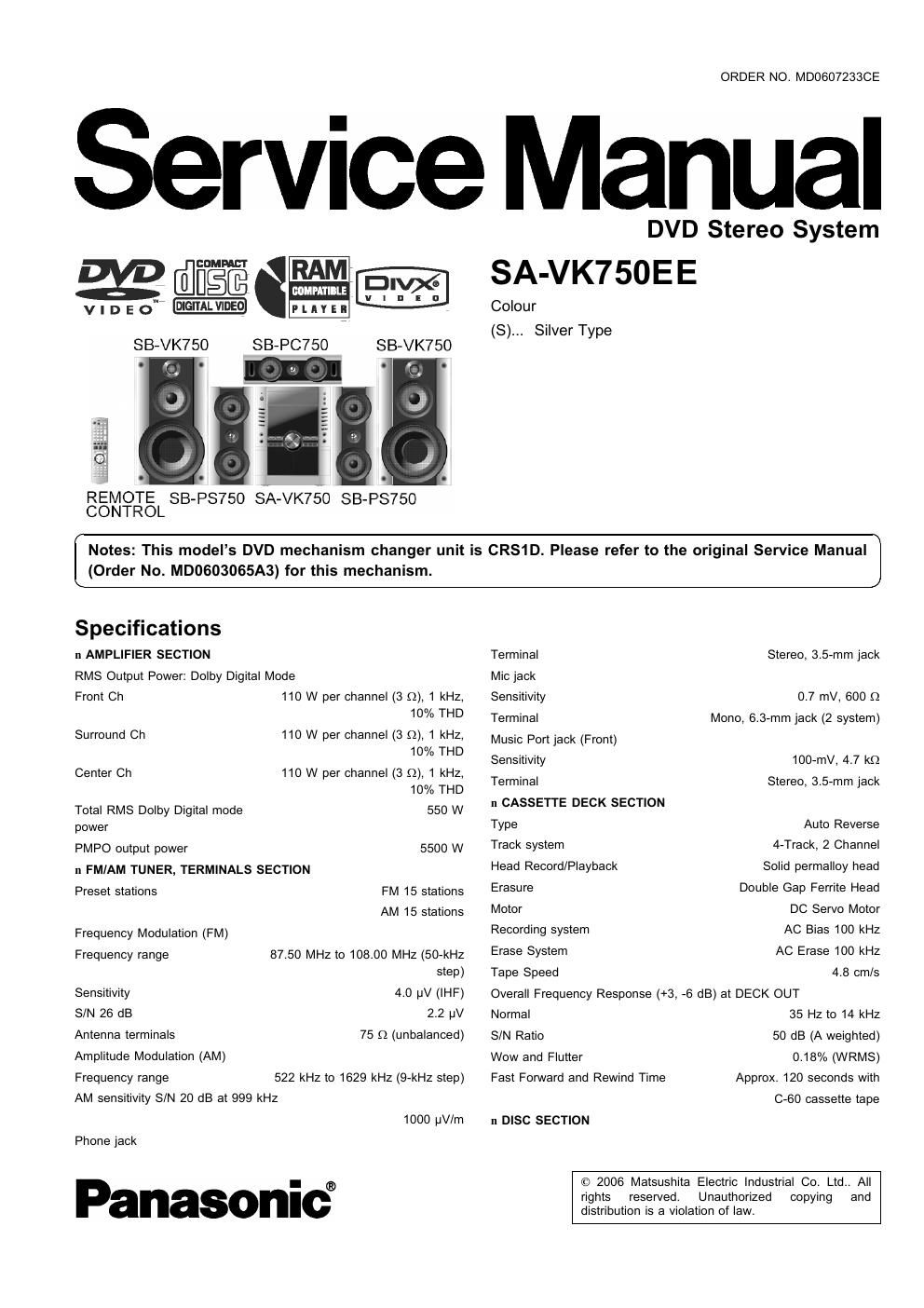

ORDER NO. MD06072330E

Service Manual

RAM

'1 I-VII-l
PLAYEI

COMPACT

fl duets

v I D E 0" [DIGITAL VIDEO]
SB-VK750

SB-PC750 SB-VK750

- lull n-

REMOTE SB-PS750 SA-VK7SO SB-PST5O
CONTROL

DVD Stereo System
SA-VK750EE

Colour
(8)... Silver Type

Notes: This models DVD mechanism changer unit is CRS1D. Please refer to the original Service Manual

(Order No. MD0603065A3) for this mechanism.

Specifications
n AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode

Front Ch 110 W per channel (3 Q), 1 kHz,
10% THD

Surround Ch 110 W per channel (3 Q), 1 kHz,
10% THD

Center Ch 110 W per channel (3 Q), 1 kHz,
10% THD

Total RMS Dolby Digital mode 550 W

power

PMPO output power 5500 W

n FMIAM TUNER, TERMINALS SECTION
Preset stations FM 15 stations
AM 15 stations
Frequency Modulation (FM)

Frequency range 87.50 MHz to 108.00 MHz (50-kHz

step)
Sensitivity 4.0 W (lHF)
SN 26 dB 2.2 V

Antenna terminals
Amplitude Modulation (AM)
Frequency range

75 Q (unbalanced)

522 kHz to 1629 kHz (9-kHz step)
AM sensitivity SN 20 dB at 999 kHz

1000 pV/m
Phone jack

Panasonic?

Terminal Stereo, 3.5-mm jack
Mic jack

Sensitivity 0.7 mV, 600 (2
Terminal Mono, 6.3»mm jack (2 system)
Music Port jack (Front)

Sensitivity 100-mV, 4.7 kg
Terminal Stereo, 3.5-mm jack
n CASSETTE DECK SECTION

Type Auto Reverse

Track system
Head Record/Playback
Erasure

4-Track, 2 Channel

Solid permalloy head
Double Gap Ferrite Head
DC Servo Motor

AC Bias 100 kHz

AC Erase 100 kHz

4.8 cm/s

Motor
Recording system
Erase System
Tape Speed
Overall Frequency Response (+3, -6 dB) at DECK OUT
35 Hz to 14 kHz
50 dB (A weighted)
0.18% (WRMS)
Approx. 120 seconds with

Normal

S/N Ratio

Wow and Flutter

Fast Forward and Rewind Time
(3-60 cassette tape

n DISC SECTION

© 2006 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
