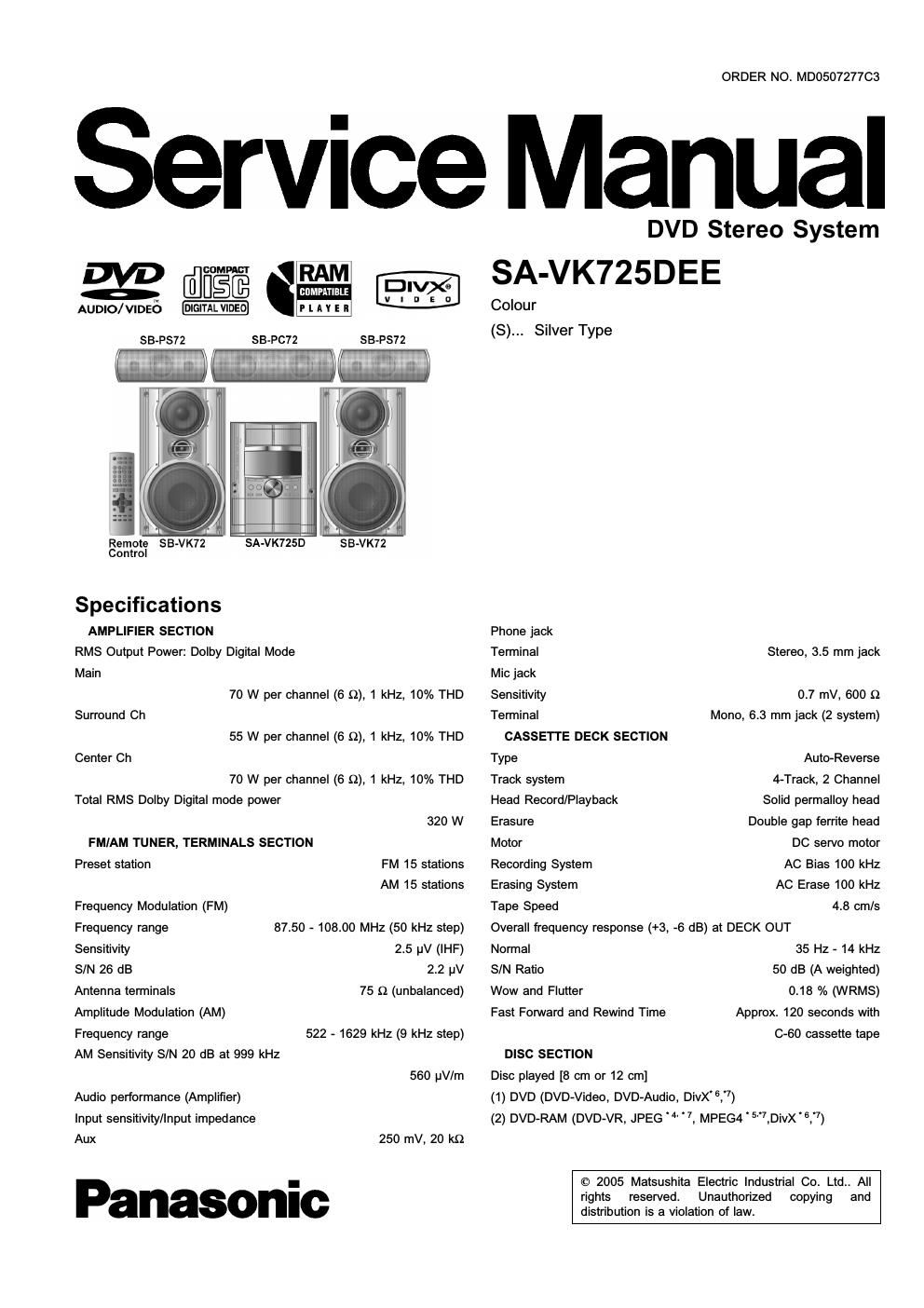

Panasonic sa vk 725 dee service manual

Page 2

SA-VKIZSDEE

(3) DVD-R (DVD-Video, Dle6,'7)

(4) DVD-RW (DVD-Video, DVD-VR, DivX'5,'7)

+ R/RW (Video)

(5) CD,CD-R/RW [CD-DA, Video CD, SVCD ' , MP3'2"7, WMA 3 i
7, JPEG '4- '7, MPEG4'5"7,DivX'6,.7, HighMAT Level 2 (Audio and
Image)]

" Conforming to tEC62107

'2 MPEG-1 Layer 3, MPEG»2 Layer 3

'3 Windows Media Audio Ver.9.0. L3

Not compatible with Multiple Bit Rate (MBR)

'4 Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 4:2:2 or 4:2:0)

'5 MPEG4 data recorded with Panasonic SD multi cameras or DVD
video recorders.

Conforming to SD VIDEO specifications (ASF standard)! MPEG4
(Simple Profile) video system/G726 audio system

'5 DivX 3.11, 4.x, 5.x

GMC (Global Motion Compensation) is not supported

'7The total combined maximum number of recognizable audio,

picture and video contents and groups: 4000 audio ,picture and video
contents and 400 groups.

Pick up

Wavelength

CD 785 nm
DVD 662 nm

Audio output (Disc)
Number of channels 5.1 ch (FL,FR,C,SL,SR,SW)
Audio performance (measurement at: Line out terminal)
Frequency response
CD-Audio

VIDEO SECTION

Video system

4 HZ to 20 kHz (+1 dB,»2 dB)

Signal system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 9)
Terminal Pin jack (1 system)
S-video output
Y output level 1 Vp-p (75 £2)
0.3 Vp-p (75 :2) (PAL)
0.286 Vp-p (75 9) (NTSC)
)

S terminal (1 system

C output level

Terminal
Component video output
[NTSC: 525 (480)p/525 (480)i, PAL: 625 (576)p/625 (576)i]

1 Vp-p (75 o)
0.7 Vp-p (75 :2)
0.7 Vp-p (75 :2)

Y output level
PB output level
PR output level
Terminal

Pin jack (Y: green, PB: blue, PR: red) (1 system)

GENERAL
Power supply
AC 110 to 127V/220 to 240 V, 50/60Hz
Power consumption 300 W
Power consumption in standby mode:
0.8 W (approximate)
250 x 330 x 348 mm
8.8 kg
+5°C to +35°C
5% to 90% RH (no condensation)

Dimensions (W x H x D)
Mass
Operating temperature range
Operating humidity range
SYSTEM
sc-VK725D (EE-S) Music System: SA-VK725D (EE-S)
Front Speakers: SB-VK72 (GO-S)

Satelite Speakers: SB-PT72 (EE-S)

Satellite Speakers SB-P172EE-S

Surround Speakers SB-PS72 GC-S
SB-PC72 GC-S

Center Speaker

Notes:

1.Specifications are subject to change without notice. Mass and
dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.

Windows Media, and the Windows logo are
trademarks, or registered trademarks of

Microsoft Corporation in the United States ..
and/or other countries. .
WMA is a compression format developed SEW
by Microsoft Corporation. It achieves the my

same sound quality as MP3 with a file size
that is smaller than that of MP3.

H
[TI

AllnIn-IMAEE

HighMA'l'lM and the HighMAT logo are
either trademarks or registered
trademarks of Microsoft Corporation in
the United States and/or other countries.

-w , HDCW, High Definition Compatible Digital® and

Pacific MicrosonicsTM are either registered
trademarks or trademarks of Pacific Microsonics, Inc. in the
United States and/or other countries.

HDCD system manufactured under license from Pacific
Microsonics, Inc. This product is covered by one or more of the
following: In the USA: 5,479,168, 5,538,074, 5,640,161,
5,808,574. 5.838.274, 5,854,600, 5,864,311. 5,872,531, and in
Australia: 669114, with other patents pending.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
