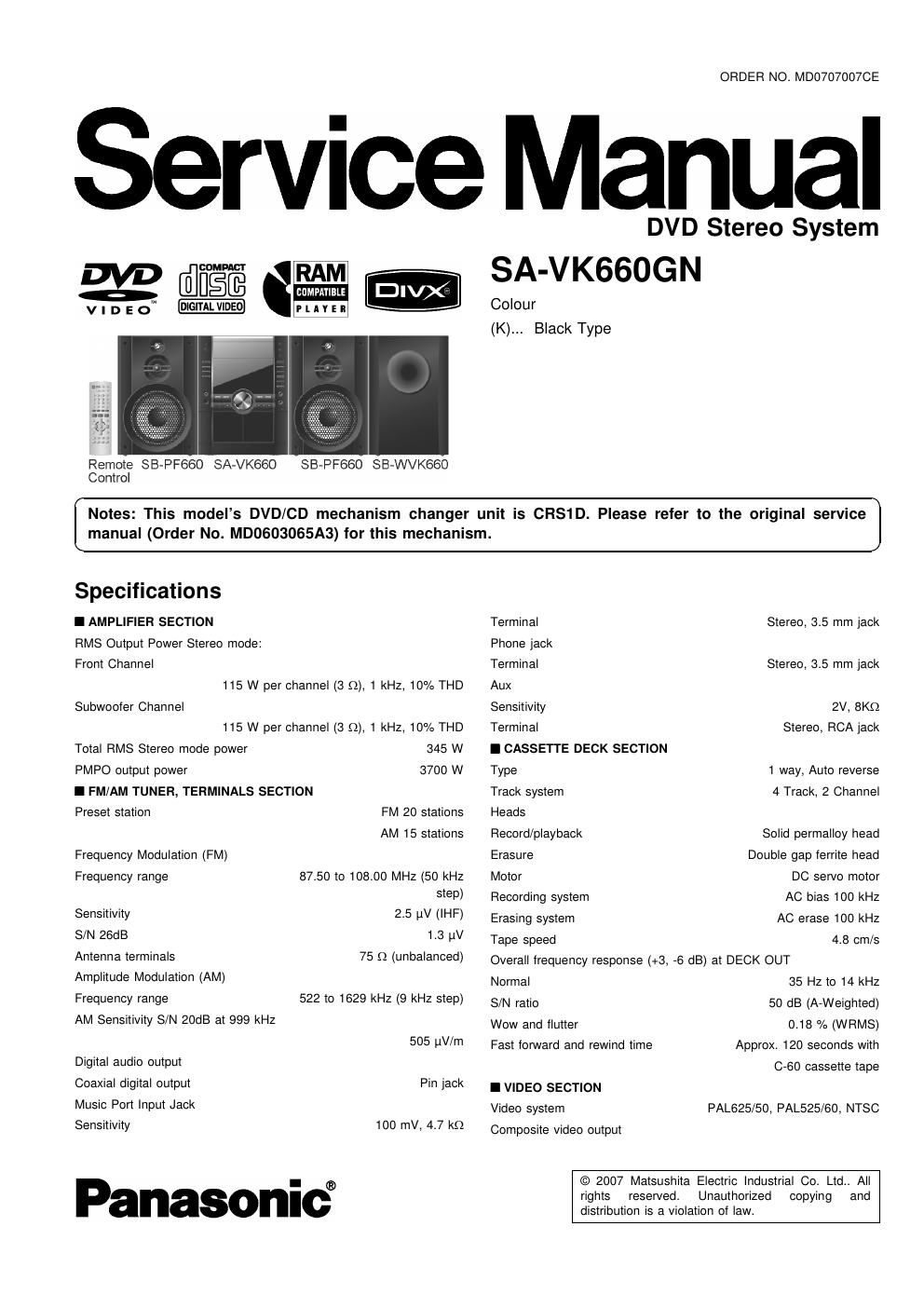

Page 1

Serv

RAM

EIIMPAIIBLE
P L A V E I

[LEE

_GITAL VIDEO

VIDEO"

Remote SB-PF660 SA-VK660
Control

8 B-PF66O S B-WVK660

ORDER NO. MDO707007CE

Manual

DVD Stereo System
SA-VK660GN

Colour
(K)... Black Type

Notes: This models DVD/CD mechanism changer unit is CRS1 D. Please refer to the original service
manual (Order No. M00603065A3) for this mechanism.

Specifications

I AMPLIFIER SECTION
RMS Output Power Stereo mode:
Front Channel

115 W per channel (3 Q), 1 kHz, 10% THD
Subwoofer Channel

115 W per channel (3 Q), 1
Total RMS Stereo mode power

kHz, 10% THD

345 W
PMPO output power 3700 W
I FM/AM TUNER, TERMINALS SECTION
Preset station FM 20 stations
AM 15 stations
Frequency Modulation (FM)

Frequency range 87.50 to 108.00 MHz (50 kHz

step)
Sensitivity 2.5 uv (IHF)
S/N 26dB 1.3 uV

Antenna terminals

Amplitude Modulation (AM)
Frequency range

AM Sensitivity S/N 20dB at 999 kHz

75 Q (unbalanced)

522 to 1629 kHz (9 kHz step)

505 uV/m
Digital audio output
Coaxial digital output Pin jack
Music Port Input Jack
Sensitivity 100 mV, 4.7 kn

Panasonic?

Terminal Stereo, 3.5 mm jack
Phone jack

Terminal Stereo, 3.5 mm jack
Aux

Sensitivity 2V, 8K9
Terminal Stereo, RCA jack
I CASSETTE DECK SECTION

Type 1 way, Auto reverse
Track system 4 Track, 2 Channel
Heads

Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor

AC bias 100 kHz
AC erase 100 kHz
4.8 om/s

Recording system
Erasing system
Tape speed
Overall lrequency response (+3, -6 dB) at DECK OUT
35 Hz to 14 kHz
50 dB (A-Weighted)
0.18 % (WRMS)
Approx. 120 seconds with

Normal

S/N ratio

Wow and flutter

Fast Iorward and rewind time
C-GO cassette tape

I VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC

Composite video output

© 2007 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-VKGSOG N

Output level 1 Vp-p (75 (2)

Terminal Pin jack (1 system)
Component video output

[NTSC : 480p/480i, PAL : 576p/576i]
Y output level 1 Vp-p (75 (2)
0.7 Vp-p (75 n)

0.7 Vp-p (75 (2)

PB output level
PR output level
Terminal

Pin jack (Y: green, PB: blue, PR: red) (1 system)
I Disc SECTION
Disc played [8 cm or 12 cm]
(1) DVD (DVD-Video, Divx'iv'7 )
(2) DVD-RAM (DVD-VR, JPEGW, MP3" 27, MPEG4 5", Divx 677)
(3) DVD-R (DVD-Video, DVD-VR, JPEG'W, MP327, MPEG457,
Divx 57)
(4) DVD-R DL (DVD-Video, DVD-VFl)
(5) DVD-RW (DVD-Video, DVD-VR, JPEG *7, MP3' 257, MPEG4 5",
Divx 6*7)
(a) +R/ +FlW (Video)
(7) +R DL (Video)
(a) CD,CD-R/RW [CD-DA, Video CD, svco , MP3' 2", WMA3~'7,
JPEG 4", MPEG4 57, DivX 5i", HighMAT Level 2 (Audio and
Image)]
Conforming to |EC$2107
2 MPEG-1 Layer 3, MPEG-2 Layer 3
3 Windows Media Audio Ver 9.0 L3
Not compatible with Multiple Bit Rate (MBFl)
Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 420:0, 42:0, 4:22 or 4:414). Extremely long and narrow
pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders. Conforming to SD VIDEO specifications (ASF
standard)/ MPEG4 (Simple Profile) video system/ (3.726 audio
system.

5 Plays all versions of DivX® video (including DivX®6) with standard
playback of DivX® media files. Certified to the DixV® Home Theater
Profile. GMC (Global Motion Compensation) is not supported.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.

Pick up

Wavelength

CD 785 nm
DVD 662 rim
Laser Power

CD CLASS 1M
DVD CLASS 1

Audio output (Disc)
Number of channels
I GENERAL
Power supply

(FL, FR) 2 channel

AC 230 V to 240 V, 50 Hz
Power consumption 125 W
Power consumption in standby mode:

0.9 W (approx.)

250 mm x 330 mm x 333.6 mm
7.5 kg

+5°C to +35°C

5% to 90% RH (no condensation)

Dimensions (W x H x D)
Mass
Operating temperature range
Operating humidity range
I SYSTEM
SC-VK660(GN) Music Center: SA-VK660 (GN)
Speaker: SB-PFSGO (GC)
Subwoofer: SB-WVK660 (GO)
For information on speaker system, please refer to the original
Service Manual (Order No. MD0707OOSCE) for SB-PFSGOGC-K and
Service Manual (Order No. MD0707OOSCE) for SB-WVKSGOGC-K.
Notes:
1.Specifications are subject to changes without notice. Mass and
dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
