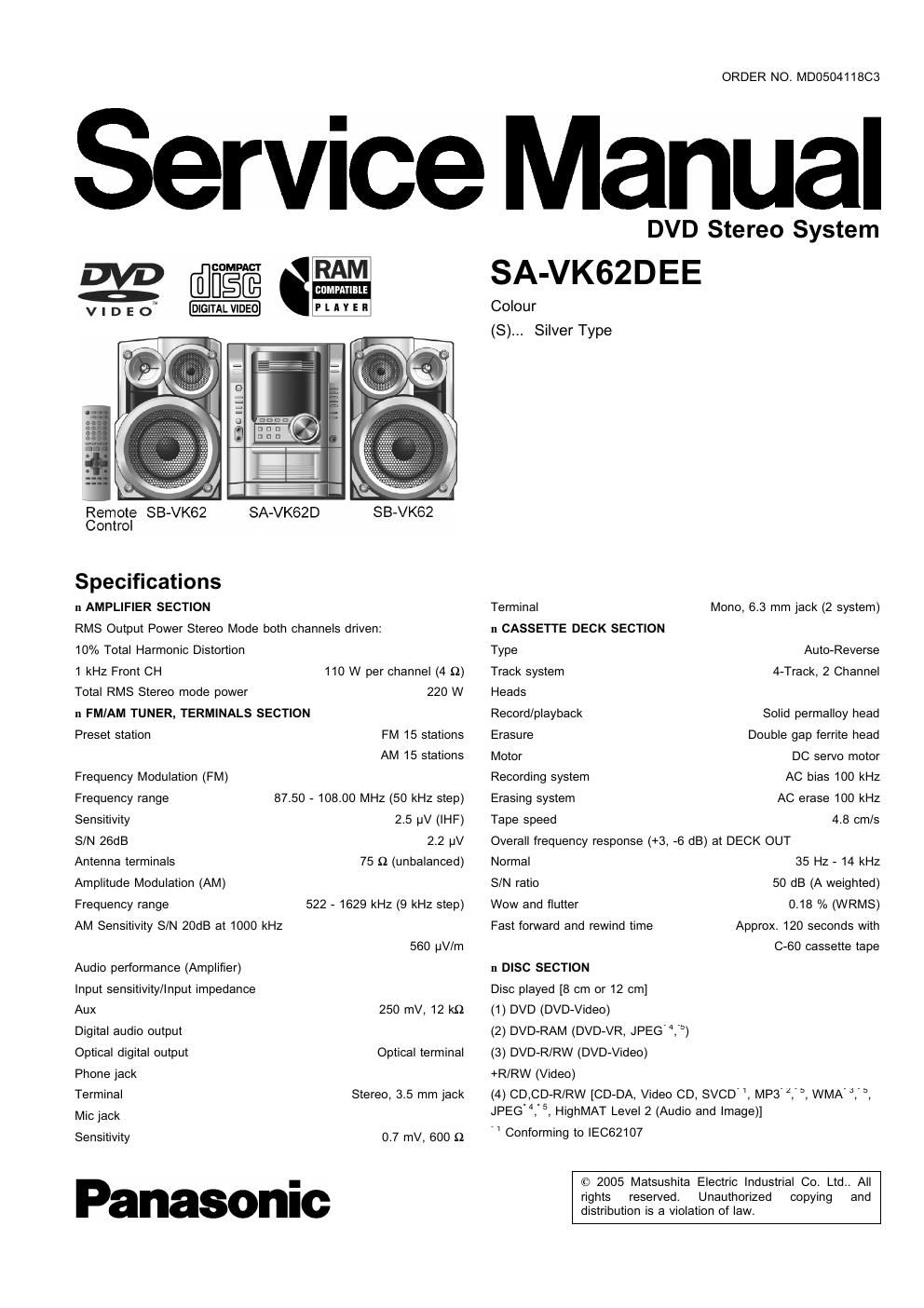

Panasonic sa vk 62 dee service manual

Page 2

SA-VKGZ DEE

' 2 Compatible compression rate: between 32 kbps and 320 kbps

3 Compatible compression rate: between 48 kbps and 320 kbps
4 Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 320 x 240 and 6144 x 4096 pixels (Sub
sampling is 4:2:2 or 4:2:0)

° The total combined maximum of recognizable audio, picture and

movie contents and groups: 4000 audio, picture and movie contents
and 400 groups.

Pick up

Wavelength

CD 785 nm
DVD 662 nm

Audio output (Disc)
Number of channels
n VIDEO SECTION

Video system

(FL, FR) 2 ch (stereo)

PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 0)
Terminal Pin jack (1 system)
S-video output
Y output level 1 Vp-p (75 0

0.3 Vp-p (75 a) (PAL
0.286 Vp-p (75 9) (NTSC

8 terminal (1 system

i
C output level )
)
Terminal )
Component video output
Y output level 1 Vp-p (75 0)
0.7 Vp-p (75 o)
0.7 Vp-p (75 9)

PE output level
PR output level
Terminal

Pin jack (Y: green, PE: blue, PR: red) (1 system)
n GENERAL
Power supply AC 230 V, 50Hz
Power consumption 193 W
Power consumption in standby mode:

0.9 W (approximate)

Dimensions (W x H x D) 250 x 364 x 330 mm
Mass 8 kg

+5 to +35C
5 to 90% RH (no condensation)

Operating temperature range

Operating humidity range

It SYSTEM

SC-VK62D(EE) Music Center: SA-VK62D (EE)
Speaker: SB-VK62 (GC)

Notes:

1.8pecifications are subject to change without notice. Mass and
dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.

Windows Media, and the Windows logo are
trademarks, or registered trademarks of

Microsoft Corporation in the United States ..
and/or other countries. .
WMA is a compression format developed WWW
by Microsoft Corporation. It achieves the 2:235

same sound quality as MP3 with a file size
that is smaller than that of MP3.

HighMAT'M and the HighMAT logo are
either trademarks or registered
trademarks of Microsoft Corporation in
the United States and/or other countries.

-.. , HDCD. High Definition Compatible Digital® and

Pacific Mir:rosonios""I are either registered
trademarks or trademarks of Pacific Microsonics, Inc. in the
United States and/or other countries.

HDCD system manufactured under license from Pacific
Microsonics. Inc. This product is covered by one or more of the
following: In the USA: 5.479.168. 5,638,074. 5,640,161.
5.808.574, 5.838.274. 5,854,600. 5,864,311. 5.872.531. and in
Australia: 669114, with other patents pending.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

1 Before Repair and Adjustment
2 Protection Circuitry --------------
3 Safety Precautions ------------------------------------------------------------------ 4

3.1. General Guidelines -------------------------------------------------------- 4
4 Prevention of Electra Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices ................................. 4
5 Handling the Lead-tree Solder ------------------------------------------------ 5
5.1. About lead free solder (PbF) .......................................... 5

6 Precaution of Laser Diode ------------------------------------------------------ 7

7 Cautions to be taken when handling Optical Pickup ............. 9

7.1. Handling Optical Pickup-

7.2. Replacing Precautions for Optical Pickup Uni

7.3. Grounding for Preventing Electrostatic Destruction ---------- 9

8 Accessories -------------------------------------------------------------------------- 10
9 Operation Procedures ----------------------------------------------------------- 11
10 Disc information ------------------------------------------------------------------- 13
11 About HighMAT ..................................................................... 15
11.1. WhatD HighMAT? ---------------------------------------------- 15
11.2. Why take advantage of HighMAT? -------------------------------- 15
11.3. Benefits of HighMAT? -------------------------------------------------- 15
