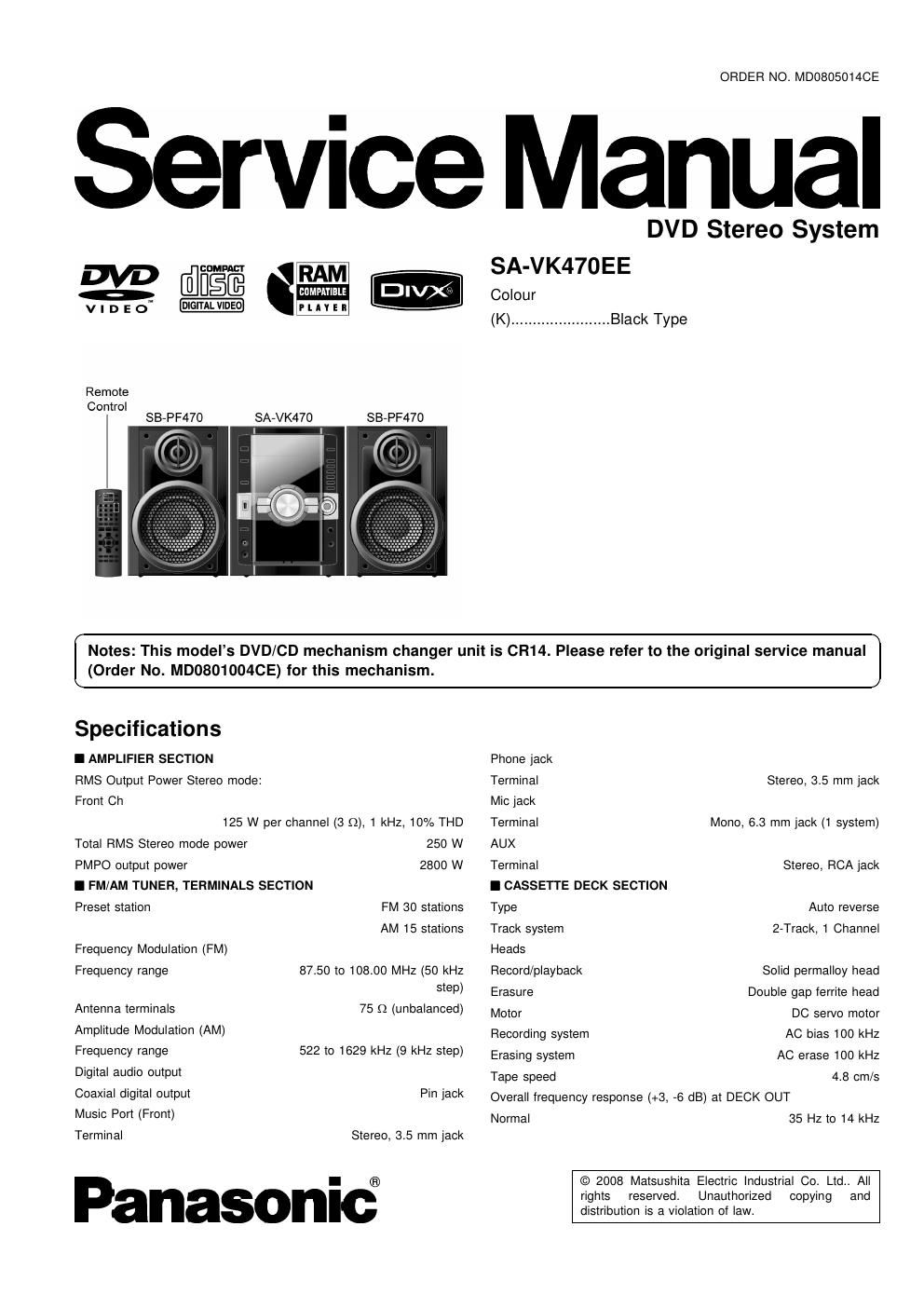

Panasonic sa vk 470 ee service manual

Page 2

SA-VK47OEE

S/N ratio
Wow and flutter

50 dB (A-Weighted)
0.18% (WRMS)

Fast forward and rewind time Approx. 120 seconds with
C-60 cassette tape

I VIDEO SECTION
Video system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 (2)
Terminal Pin jack (1 system)

Component video output

Y output level 0.7 Vp-p (75 9)
PB output level 0.7 Vp-p (75 (2)
PR output level 0.7 Vp-p (75 (2)

Terminal output level
Pin jack (Y: green, PB: blue, PR: red) (1 system)

IUSB SECTION

USB Port

USB standard

Media file format support

USB 2.0 full speed
MP3 (.mp3)

WMA (*.wma)

JPEG Mpg) (-ipeg)
MPEG4 (.asf)

FAT12, FAT16, FAT 32
Max. 500 mA

USB device file system

USB Port power

I Disc SECTION

Disc played [8 cm or 12 cm]
(1) DVD (DVD-Video, Div><9-7 )
(2) DVD-RAM (DVD-VFl, JPEG-7, MP3'297, MPEG4 5", Divx 557)
(3) DVD-R (DVD-Video, DVD-VR, JPEG"-7, MP3, MPEG4?
Divx W)

(4) DVD-R DL (DVD-Video, DVD-VFl)

(5) DVD-RW (DVD-Video, DVD-VR, JPEG 4-7, MP3 257, MPEG4 597,
DiVX 67)

(s) +R/ +RW (Video)

(7) +R DL (Video)

(8) CD,CD-R/RW [CD-DA, Video CD, svcp , MPs 2", WMA 377,
JPEG 7, MPEG4, DivX 9", HighMAT Level 2 (Audio and
Image)]

Conforming to IE062107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver 9.0 L3

Not compatible with Multiple Bit Rate (MBFl)

A Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow
pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders. Conforming to SD VIDEO specifications (ASF
standard)/ MPEG4 (Simple Profile) video system/ (3.726 audio
system.

5 Plays all versions of DiVX® video (including DivX®6) with standard
playback of Diyx® media files. Certified to the Dixv® Home Theater
Profile. GMC (Global Motion Compensation) is not supported.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and Video
contents and 400 groups.

Pick up

Wavelength

CD 785 nm
DVD 655 rim
Laser Power

CD CLASS 1M
DVD CLASS 1

Audio output (Disc)
Number of channels
I GENERAL

Power supply

2 channel (FL, FR)

AC 230 V 50 Hz
Power consumption 65 W
Power consumption in standby mode:
0.4 W (approx.)

250 mm x 331mm x 317 mm
4.7 kg

+0 to +40°C

35 to 80% RH (no condensation)

Dimensions (W x H x D)

Mass

Operating temperature range

Operating humidity range

I SYSTEM

SC-VK470(EE) Music Center: SA-VK470 (EE)
Speaker: SB-PF470 (GC)

For information on speaker system, please refer to the original
Service Manual (Order No. MD080501SCE) for SB-PF470GC-K.

Notes:
1.8pecifications are subject to changes without notice. Mass and
dimensions are approximate.
2.Total harmonic distortion is measured by the digital spectrum
analyzer.
