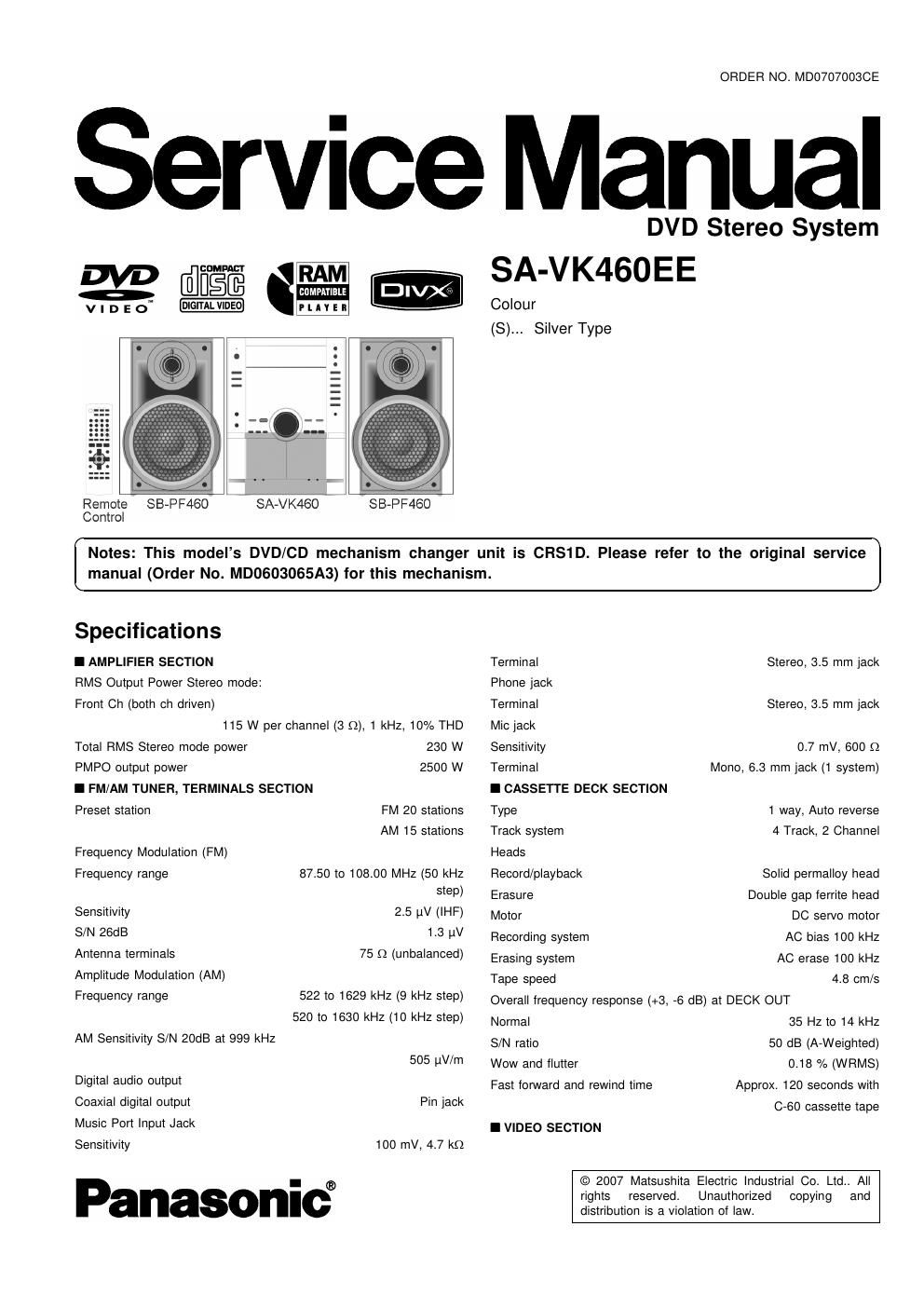

Page 1

ORDER NO. MD0707003CE

Service Manual

disc RAM
nun

VIDEOw

SB-PFABO

SBePF46O

Remote SA-VK46O

Control

DVD Stereo System
SA-VK460EE

Colour
(S)... Silver Type

Notes: This models DVD/CD mechanism changer unit is CRS1 D. Please refer to the original service
manual (Order No. MDO603065A3) for this mechanism.

Specifications

I AMPLIFIER SECTION
RMS Output Power Stereo mode:
Front Ch (both on driven)
115 W per channel (3 Q), 1 kHz, 10% THD
230 W
2500 W

Total RMS Stereo mode power

PMPO output power

I FM/AM TUNER, TERMINALS SECTION
Preset station FM 20 stations
AM 15 stations
Frequency Modulation (FM)

Frequency range 87.50 to 108.00 MHz (50 kHz

step)
Sensitivity 2.5 LIV (IHF)
S/N 26dB 1.3 (N

Antenna terminals
Amplitude Modulation (AM)
Frequency range

75 Q (unbalanced)

522 to 1629 kHz (9 kHz step)
520 to 1630 kHz (10 kHz step)
AM Sensitivity S/N 20dB at 999 kHZ

505 uV/m
Digital audio output
Coaxial digital output Pin jack
Music Port Input Jack
Sensitivity 100 mV, 4.7 km

Panasonic®

Terminal Stereo, 3.5 mm jack
Phone jack

Terminal Stereo, 3.5 mm jack
Mic jack

Sensitivity 0.7 mV, 600 9
Terminal Mono, 6.3 mm jack (1 system)
I CASSETTE DECK SECTION

Type 1 way, Auto reverse
Track system 4 Track, 2 Channel
Heads

Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor

Recording system AC bias 100 kHz
AC erase 100 kHz

4.8 cm/s

Erasing system
Tape speed
Overall lrequency response (+3, -6 dB) at DECK OUT
35 Hz to 14 kHz
50 dB (A-Weighted)
0.18 % (WRMS)
Approx. 120 seconds with

Normal

S/N ratio

Wow and flutter

Fast lorward and rewind time
C-GO cassette tape

I VIDEO SECTION

© 2007 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-VKASOEE

Video system PAL625/50, PAL525/60, NTSC Power consumption in standby mode:

Composite Video output 0.9 W (approx)
Output level 1 Vp-p (75 (2) Dimensions (W x H x D) 250 mm x 330 mm x 333.6 mm
Terminal Pin jack (1 system) Mass 7.5 kg

Component Video output
[NTSC : 480p/480i, PAL : 576p/576i]

Operating temperature range +5 to +35°C

Operating humidity range 5 to 90% RH (no condensation)

Y output level 1 Vp-p (75 Q) I SYSTEM
PB output level 0.7 Vp-p (75 Q) SC-VK460(EE) Music Center: SA-VK460 (EE)
PR output level 0.7 Vp-p (75 (2) Speaker: SB-PF460 (GC)
Terminal For information on speaker system, please refer to the original

Pin jack (Y: green, P53 blue, PRC red) (1 system) Service Manual (Order No. MD07070020E) for SB-PF460GC-S.
I Disc SECTION N°les=

1.Specifications are subject to changes without notice. Mass and
dimensions are approximate.

Disc played [8 cm or 12 cm]

(1) DVD (DVD-Video, DiVx'E-7 )

(2) DVD-RAM (DVD-VR, JPEG"7, MP3, MPEG4 5", Divx E"7)
(3) DVD-R (DVD-Video, DVD-VR, JPEGW, MP3 2:7, MPEG4 57,
Divx 6*7)

(4) DVD-R DL (DVD-Video, DVD-VFl)

(5) DVD-RW (DVD-Video, DVD-VR, JPEG', MP3. 237, MPEG4 5",
Divx W)

(a) +R/ +RW (Video)

(7) +R DL (Video)

(8) CD,CD-R/RW [CD-DA, Video CD, sch , MP3. 2", WMA'a-V,
JPEG 7, MPEG457, Divx'57, HighMAT Level 2 (Audio and
Image)]

Conforming to IE062107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver 9.0 L3

Not compatible with Multiple Bit Rate (MBFl)

Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 4:0:0, 4:2:0, 4:22 or 4:4:4). Extremely long and narrow
pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders. Conforming to SD VIDEO specifications (ASF
standard)/ MPEG4 (Simple Profile) Video system/ 6726 audio
system.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

5 Plays all versions of DiVX® Video (including DiVX®6) with standard
playback of DiVX® media files. Certified to the DixV® Home Theater
Profile. GMC (Global Motion Compensation) is not supported.

7 The total combined maximum number of recognizable audio,
picture and Video contents and groups: 4000 audio, picture and Video
contents and 400 groups.

Pick up

Wavelength

CD 785 nm
DVD 662 nm
Laser Power

CD CLASS 1M
DVD CLASS 1

Audio output (Disc)
Number of channels
I GENERAL
Power supply

Power consumption

(FL, FR) 2 channel

AC 230 V, 50 Hz
105 W
