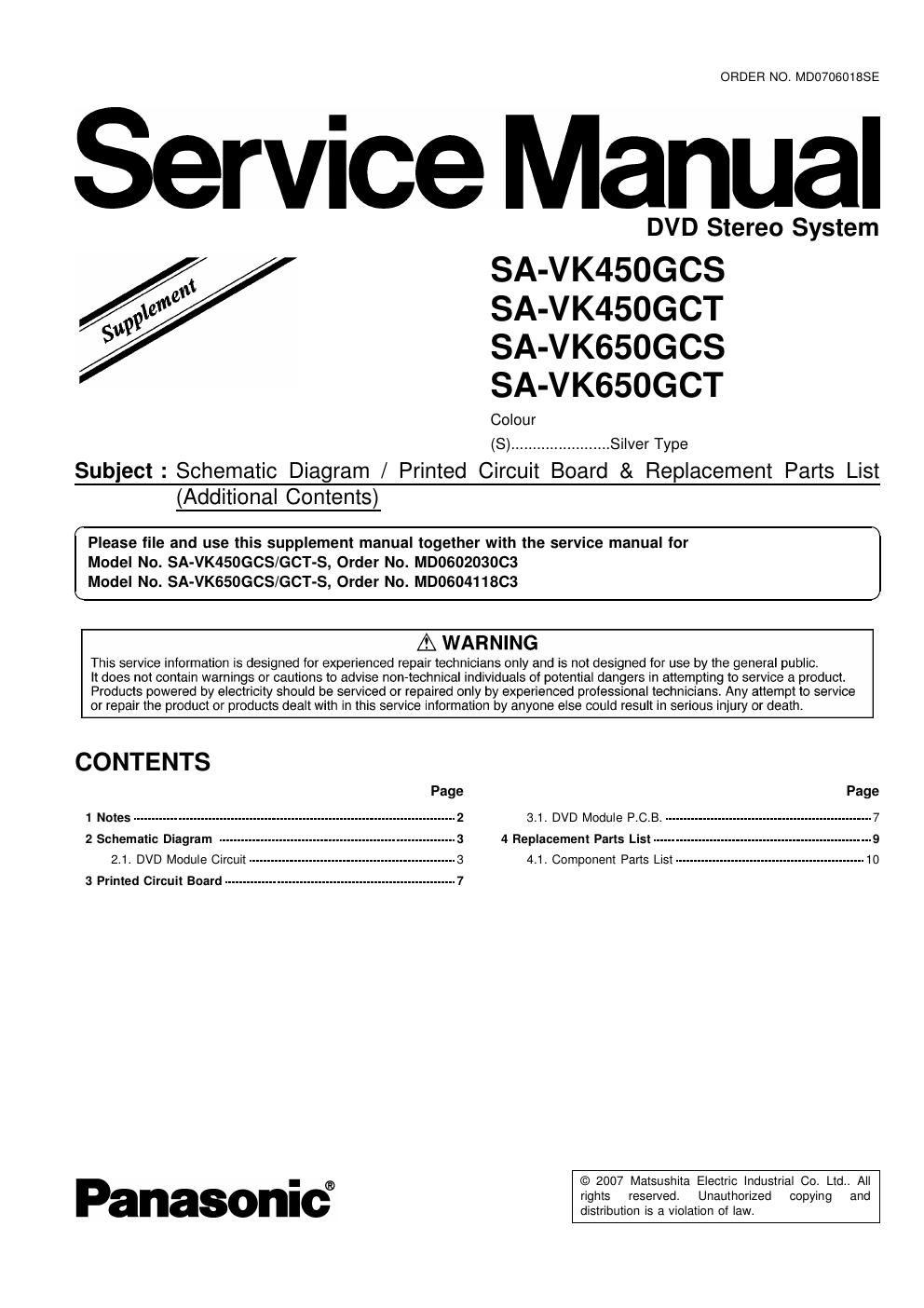

ORDER NO. MD07060188E

Service Manual

51x99

DVD Stereo System

SA-VK450GCS
SA-VK450GCT
SA-VK650GCS
SA-VK650GCT

Colour
(8) ....................... Silver Type

Subject: Schematic Diagram / Printed Circuit Board & Replacement Parts List

(Additional Contents)

Please file and use this supplement manual together with the service manual for
Model No. SA-VK450GCS/GCT-S, Order No. M0060203OC3
Model No. SA-VKGSOGCS/GCT-S, Order No. M00604118C3

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

1 Notes --
2 Schematic Diagram -

2.1. DVD Module Circuit-
3 Printed Circuit Board -------

Panasonic®

3.1. DVD Module P.C.B
4 Replacement Parts List-

4.1. Component Parts List-- --10
© 2007 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-VK450GCS / SA-VK450GCT I SA-VKSSOGCS / SA-VKBSOGCT

1 Notes

The following list of models are those of which the DVD Module P.C.B. has been changed.

(A) SA-VK4soGCS-S (MD060203OC3)

(B) SA-VK450GCT-S (MD060203OC3)

SA-VKGSOGCS-S (MD060411803
(

(C) )
(D) SA-VKGSOGCT-S MD060411803)
Part No.
Before Alter Part Name & Description Remarks
REP4012E REPX0561B DVD Module P.C.B. [M](RTL)VK4SOGCS/GCT/
VKGSOGCS/GCT

Note: Suffix No. from B1 onwards.

Special Caution Note:
1.Do not interchange for parts replacement. Be sure to use the parts mentioned in Section 4 of Replacement Parts List.

2.After replacement of the DVD Module, It is neccessary to carry aout initialization. Refer to the section of Self-diagnosis &
Special Mode Setting on main unit for the procedures of initialization.

This supplement includes the contents of the new DVD Module for below sections:-
1) Schematic Diagram

2) Printed Circuit Board

3) Replacement Parts List
