Panasonic sa vk 450 gc service manual

This is the 12 pages manual for panasonic sa vk 450 gc service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 12

Extracted text from panasonic sa vk 450 gc service manual (Ocr-read)

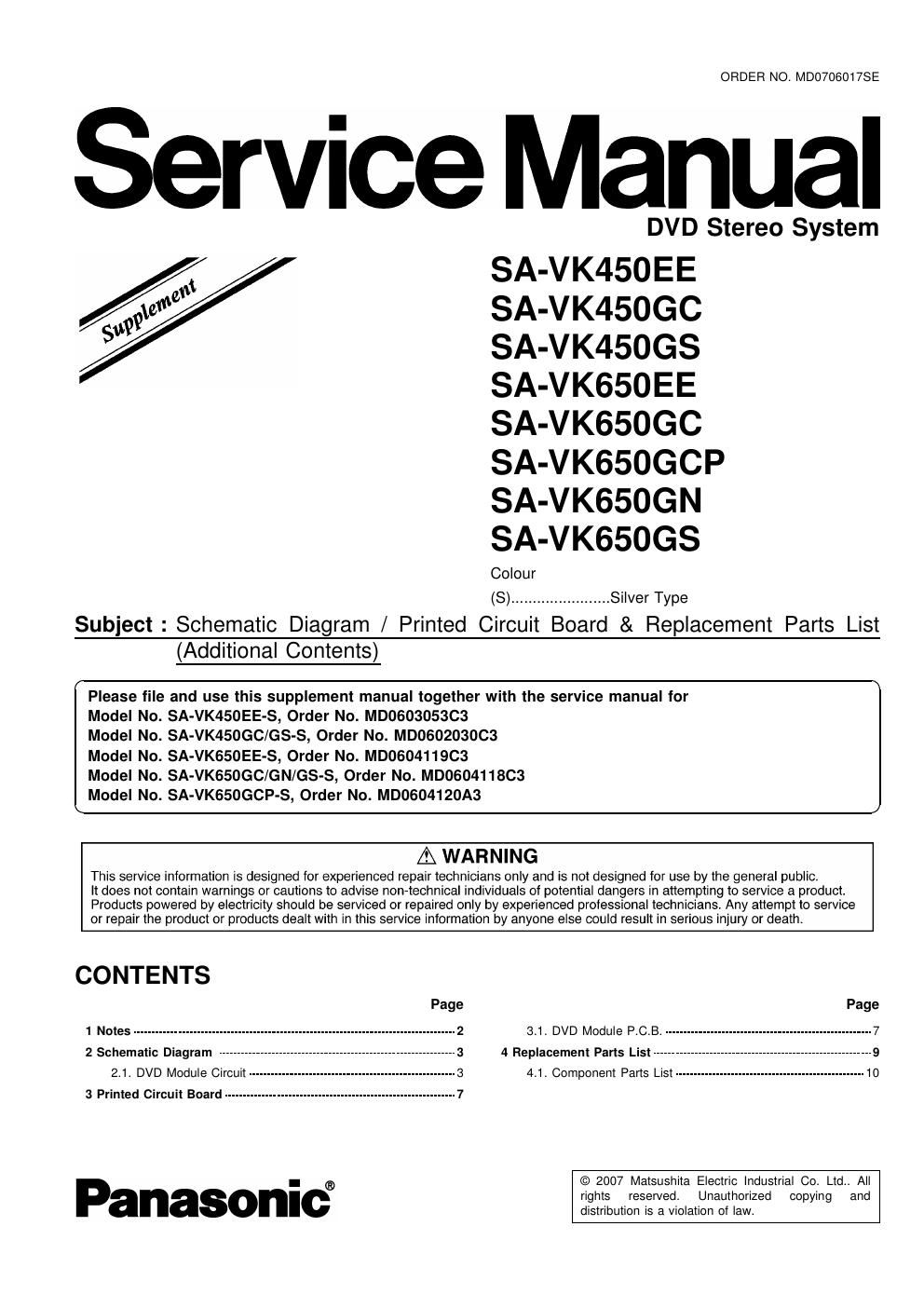

Page 1

ORDER NO. MD0706017SE

Service Manual

t
WW
S

DVD Stereo System

SA-VK450EE
SA-VK450GC
SA-VK450GS
SA-VK650EE
SA-VK650GC
SA-VK650GCP
SA-VK650GN
SA-VK650GS

Colour
(8) ....................... Silver Type

Subject: Schematic Diagram / Printed Circuit Board & Replacement Parts List

(Additional Contents)

Please file and use this supplement manual together with the service manual for

Model No. SA-VK450EE-S, Order No. MDOGO305303

Model No. SA-VK450GC/GS-S, Order No. MD0602030C3

Model No. SA-VKGSOEE-S, Order No. MDOGO4119C3

Model No. SA-VKGSOGC/GN/GS-S, Order No. MD060411BC3

Model No. SA-VKGSOGCP-S, Order No. MDOGO4120A3

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical indivxduals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious iniury or death.

CONTENTS

1 Notes

2 Schematic Diagram
2.1. DVD Module Circuit
3 Printed Circuit Board -------------------------------------------------------------- 7

Panasonic®

3.1. DVD Module P.C.B.-
4 Replacement Parts List---

4.1. Component Parts List --
