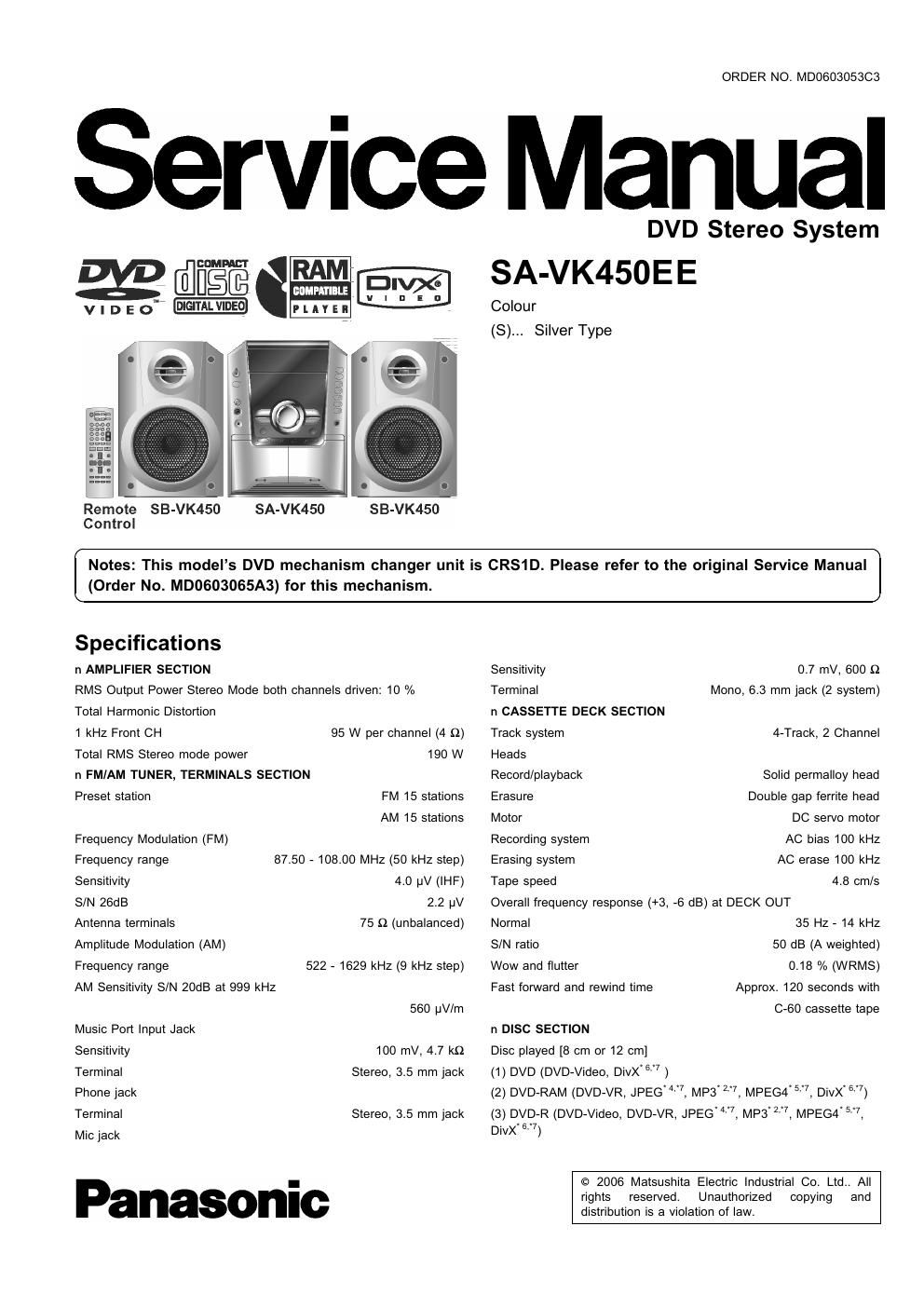

SA-VKASOEE
(4) DVD-R DL(DVD-Video, DVD-VR) Power consumption in standby mode:
(5) DVD-RW (DVD-Video, DVD-VR, JPEGWI MP3'Z7, MPEG4' 577, 0.9 w (approximate)
DIVXHWI Dimensions (w x H x D) 250 x 330 x 341.8 mm
(6) DVD+RIRW (Video) Mass 6] kg
(7) DVD+R DL (Video) Operating temperature range +5 to +35°C
(8) CD,CD»R/RW [CD-DA, Video CD) SVCD. ', Mp3hz7v WMAhaq' Operating humidity range 5 to 90% RH (no condensation)
JPEG'47, MPEG4'5"7, Divx', HighMAT Level 2 (Audio and
Image n SYSTEM
SC-VK450(EE) Music Center: SA-VK450 (EE)
.1 Conforming to IE062107
2 MPEG-1 Layer 3, MPEG-2 Layer 3
3 Windows Media Audio Ver 9.0 L3
Not compatible with Multiple Bit Rate (MBR)
4 Exif Ver 2.1 JPEG Baseline files
Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 4:0:0, 4:2:0, 412:2 or 42414). Extremely long and slender
pictures may not be displayed.
Speaker: SB-VK450 (GC)
For information on speaker system, please refer to the original
Service Manual (Order No. MD060100503) for SB-VK4SOGC-S.
' 5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders. Conforming to SD VIDEO specifications (ASF
standard)! MPEG4 (Simple Profile) video system/ G726 audio
system.
' 5 Plays all version of DivXW video (including DivXWG) with standard
playback of Divx® media files. Certified to the DivX® Home Theater
Profile. GMC (Global Motion Compensation) is not supported.
' 7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.
Pick up
Wavelength
CD 785 nm
DVD 662 nm
Laser Power
CD CLASS 1M
DVD CLASS 1
Audio output (Disc)
Number of channels (FL, FR) 2 ch (stereo)
n VIDEO SECTION
Video system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 Q)
Terminal Pin jack (1 system)
S-video output
Y output level 1 Vp-p (75 Q)
C output level 0.3 Vp-p (75 Q) (PAL)
0.286 Vp-p (75 9) (NTSC)
Terminal S terminal (1 system)
Component video output
[NTSC : 525 (480)p/525 (480)i,
PAL : 625 (576)p/625 (575m
Y output level 1 Vp-p (75 Q)
PB output level 0.7 Vp-p (75 Q)
PR output level 0.7 Vp-p (75 Q)
Terminal
Pin jack (Y: green, PE: blue, PR: red) (1 system)
n GENERAL
Power supply AC 230 V, 50Hz
Power consumption 105 W
