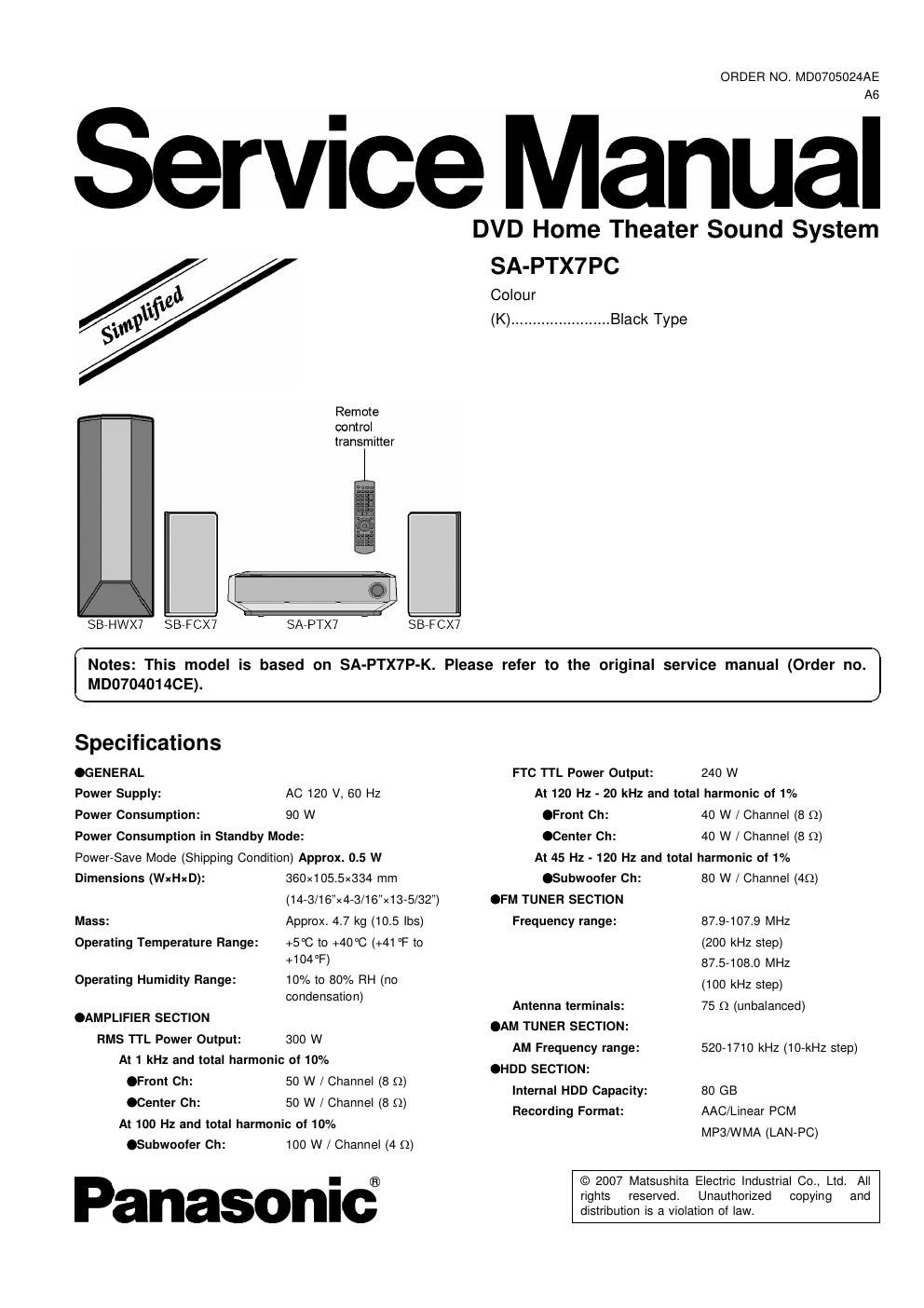

Page 1

ORDER NO. MD0705024AE

Service Manual

DVD Home Theater Sound System

SBVHWX7 SBVFCX7

Remote
control
transmitter

SBVFCX7

SA-PTX7PC
Colour
(K) ....................... Black Type

Notes: This model is based on SA-PTX7P-K. Please refer to the original service manual (Order no.

MD0704014CE).

Specifications

.GENEFIAL
Power Supply:
Power Consumption:

AC 120 V, 60 HZ
90 W

Power Consumption in Standby Mode:
Power-Save Mode (Shipping Condition) Approx. 0.5 W

Dimensions (WxHxD):

Mass:

Operating Temperature Range:

Operating Humidity Range:

.AMPLIFIER SECTION
FIMS 1'I'L Power Output:

360x105.5x334 mm
(14-3/16"x4-3/16"x13-5/32")
Approx. 4.7 kg (10.5 lbs)

+50 to +40°c (+41 °F to
+104°F)

10% to 80% RH (no
condensation)

300 W

At 1 kHz and total harmonic of 10%

.Front Ch:
.Center Ch:

50 W / Channel (8 Q)
50 W / Channel (8 (2)

At 100 Hz and total harmonic of 10%

.Subwooter Ch:

100 W / Channel (4 Q)

Panasonic®

FTC TTL Power Output: 240 W
At 120 Hz - 20 kHz and total harmonic of 1%
.Front Ch: 40 W (Channel (8 Q)
OCenter Ch: 40 W / Channel (8 9)
At 45 Hz - 120 Hz and total harmonic of 1%
.Subwooter Ch: 80 W / Channel (40)
.FM TUNER SECTION
Frequency range: 87.94073 MHz
(200 kHz step)
875-1080 MHZ
(100 kHz step)
Antenna terminals: 75 Q (unbalanced)
.AM TUNER SECTION:
AM Frequency range:
.HDD SECTION:
Internal HDD Capacity: 80 GB
AAC/Linear PCM
MP3/WMA (LAN-PC)

520-1710 kHz (10-kHZ step)

Recording Format:
