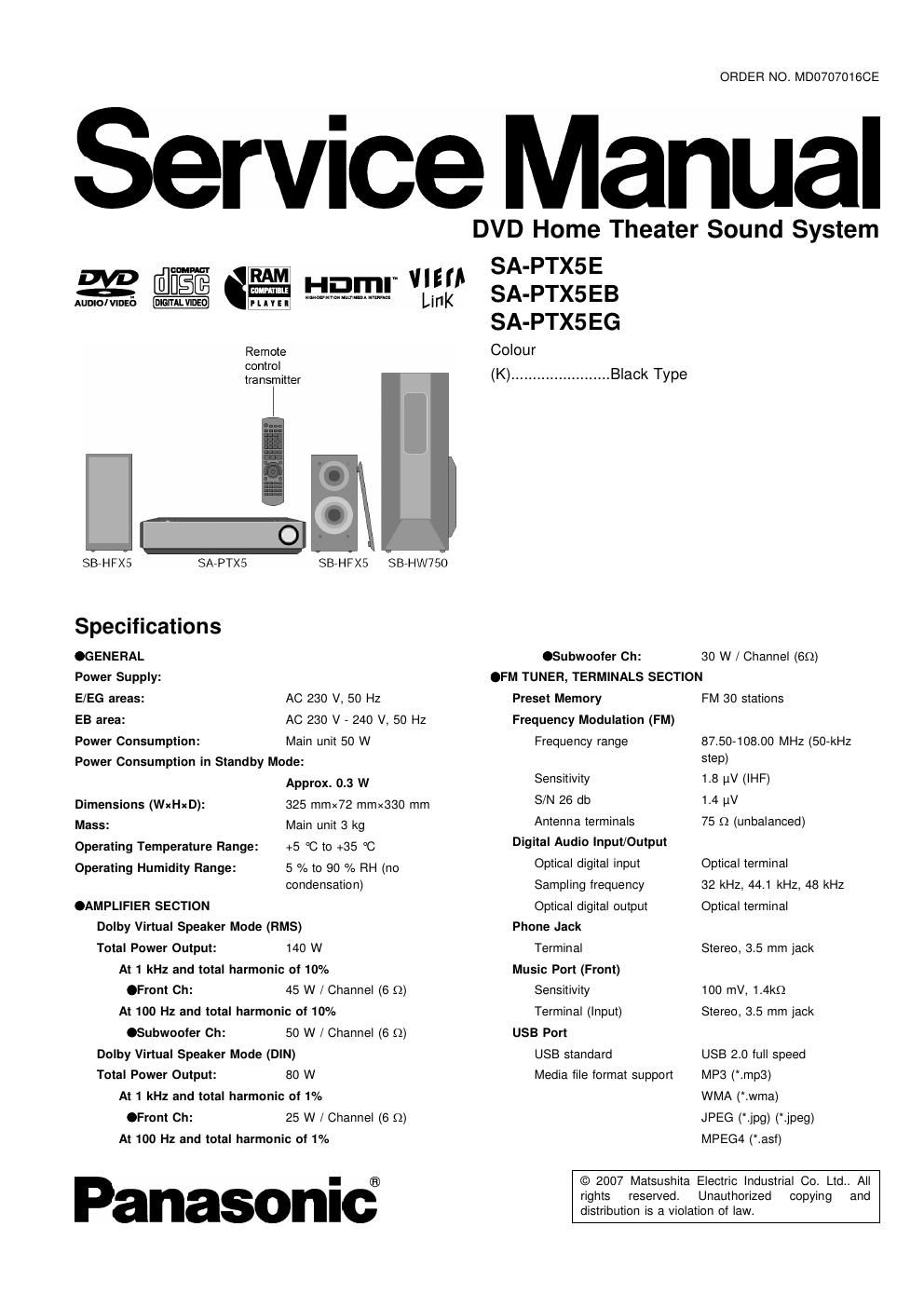

Page 1

ORDER NO. MDO70701GCE

Service Manual

DVD Home Theater Sound System

caravan 7 SA'PTX5E
RAM -
mama [QR-$1.? ﬂ HEP-J'- Vim SA-PTX5EB

SA- PTX5 EG
Remote COIOUI
gigging, (K) ....................... Black Type
SBVHFXS m SBVHFXEr SBVHW750
Specifications
.GENERAL .Subwooter Ch: 30 W / Channel (en)
Power Supply: .FM TUNER, TERMINALS SECTION
E/EG areas: AC 230 V, 50 Hz Preset Memory FM 30 stations
EB area: AC 230 V - 240 V, 50 Hz Frequency Modulation (FM)
Power Consumption: Main unit 50 W Frequency range 8750-10800 MHz (SO-kHz
Power Consumption in Standby Mode: step)
Approx. 03 W Sensitivity 1.8 pV (IHF)
Dimensions (WxHxD): 325 mmx72 mmx330 mm 5/ 26 db 1-4 W
Mass: Main unit 3 kg Antenna terminals 75 Q (unbalanced)
Operating Temperature Range: +5 0C to +35 °C Digital AUdi° Input/Output
Operating Humidity Range: 5 % to 90 % RH (no Optical digital input Optical terminal
condensation) Sampling frequency 32 kHz, 44.1 kHz, 48 kHz
.AMPLIFIER SECTION Optical digital output Optical terminal
Dolby Virtual Speaker Mode (RMS) Phone Jack
Total Power Output: 140 W Terminal Stereo, 3.5 mm jack
At 1 kHz and total harmonic of 10% Music Port (Front)
.Front Ch: 45 W / Channel (6 0) Sensitivity 100 mV, 1.4kQ
At 100 Hz and total harmonic of 10% Terminal (Input) Stereo, 3.5 mm jack
.Subwoofer Ch: 50 W / Channel (6 :2) USB Port
Dolby Virtual Speaker Mode (DIN) USB standard USB 2.0 full speed
Total Power Output: 80 W Media file format support MP3 (.mp3)
At 1 kHz and total harmonic of 1% WMA (.wma)
.Front Ch: 25 W / Channel (6 9) JPEG (.jpg) (.jpeg)
At 100 Hz and total harmonic of 1% MPEG4 (.asf)

Panasonic®
